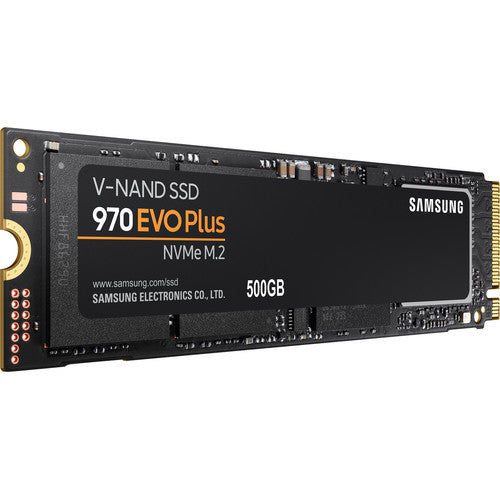

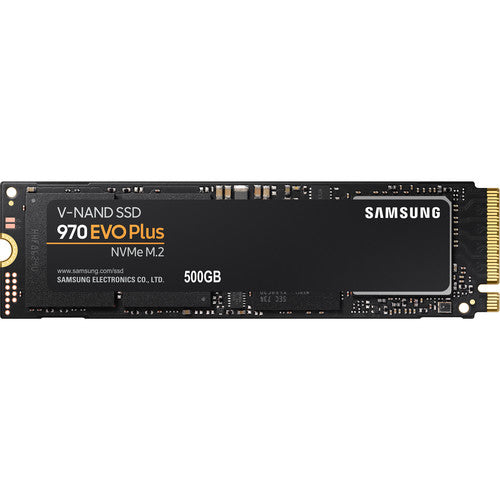

Samsung 970 EVO Plus 500GB PCIe NVMe M.2 Internal SSD
Samsung 970 EVO Plus 500GB PCIe NVMe M.2 Internal SSD
Couldn't load pickup availability
At a Glance
Featuring our latest V-NAND technology and a newly
enhanced Phoenix controller, Samsung 970 EVO Plus Series NVMe M.2 SSDs deliver
outstanding performance in Non-Volatile Memory Express (NVMe), with
exceptionally fast sequential speeds outperforming our standard 970 EVO models.
Plus, Samsung's Magician software solution provides advanced functionality for
you to manage, monitor and maintain your drive.
•NVMe speeds up sequential read/write performance,
while Samsung TurboWrite technology accelerates write speeds even further
•Compact M.2 form factor ready for high-end
computing
•Samsung Magician software for SSD management,
including automatic firmware updates
•Ideal for high-performance client PC applications
(not designed for server or data center applications and warranty does not
support such usage)
Non-Volatile Memory Express (NVMe)
970 EVO Plus 500GB NVMe SSDs with a newly enhanced
Phoenix controller outperform our standard 970 EVO 500GB model with
exceptionally fast sequential read/write speeds up to 3,500/3,300 MB/s. They
also support PCI Express® (PCIe) Gen 3 x 4 lanes to provide high bandwidth and
low latency, making them perfect for business professionals who need cutting
edge-performance for high-end computing.
TurboWrite Technology
Samsung’s intelligent TurboWrite technology helps
to maximize your computing ability, accelerating write speeds above and beyond
the already exceptionally fast speeds of NVMe.
Dynamic Thermal Guard
Professional-Quality Drive Management
V-NAND Technology
SSD Data Security
Highly-Efficient Power Management
Samsung SSD Components Type
Product Type
SSD
Series
970 EVO Plus
Usage Application
Client PCs
Interface
PCIe Gen 3.0 x 4, NVMe 1.3
Application
Consumer
Storage
Capacity
500GB (1GB is equal to 1 Billion byte by IDEMA)
Actual usable capacity may be less (due to
formatting, partitioning, operating system, applications or otherwise)
Key Features
Sequential Read Speed
Up to 3,500 MB/s ( Performance may vary based on
system hardware and configuration)
Sequential Write Speed
Up to 3,200 MB/s ( Performance may vary based on
system hardware and configuration)
Random Read Speed
Random Read (4KB, QD32): Up to 480,000 IOPS,
Random Read (4KB, QD1): Up to 19,000 IOPS (Performance may vary based on system
hardware and configuration)
Random Write Speed
Random Write (4KB, QD32): Up to 550,000 IOPS
Random Write (4KB, QD1): Up to 60,000 IOPS (Performance may vary based on
system hardware and configuration)
Controller
Samsung Phoenix Controller
NAND Flash
Samsung V-NAND 3-bit MLC
Cache Memory
Samsung 512MB Low Power DDR4 SDRAM
Trim Support
Supported
AES Encryption
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667
(Encrypted drive)
S.M.A.R.T. Support
Supported
GC (Garbage Collection)
Auto Garbage Collection Algorithm
WWN Support
Not supported
Device Sleep Mode Support
Yes
Temperature proof
Yes
NVMe
Yes
Gaming SSDs
Yes
General
Average Power Consumption (system level)
Average: 5.8 W Maximum: 9 W (Burst mode) (Actual
power consumption may vary depending on system hardware and configuration)
Power consumption (Idle)
Max. 30 mW (Actual power consumption may vary
depending on system hardware and configuration)
Voltage
3.3 V +/- 5 % Allowable voltage
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
Environmental Specs
Operating Temperature
0 - 70oC Operating Temperature
Shock
1,500 G and 0.5 ms (Half sine)
Form Factor
Product
M.2 (2280)
Software
Management SW
Magician Software for SSD management
Item Dimension (L"xW"xH")
6 x 4 x 1
Weight
1.00 LB
Warranty Information
5 years or 150TB TBW
