Samsung

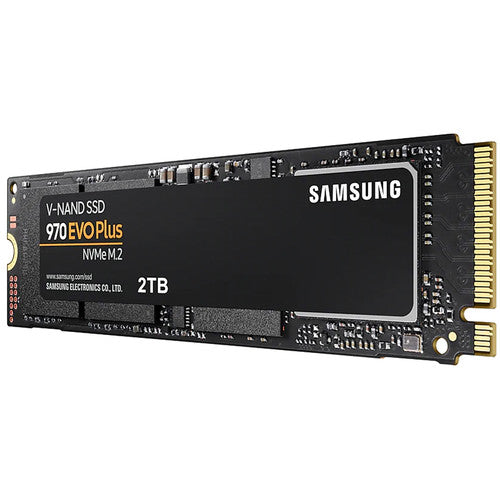

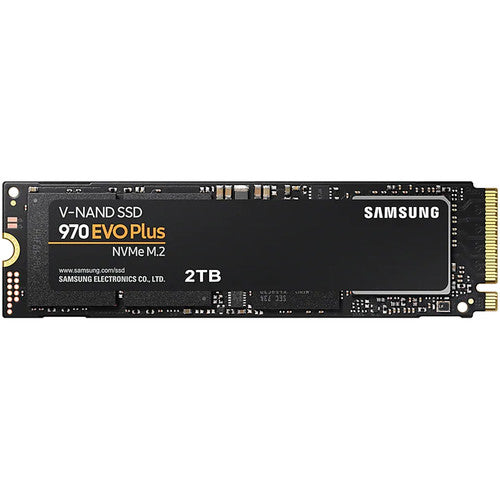

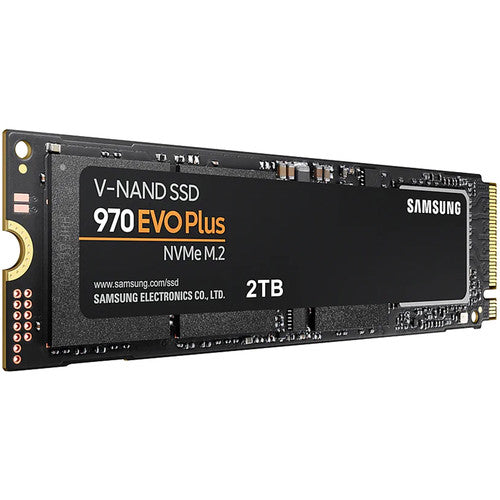

Samsung 2TB 970 EVO Plus NVMe M.2 Internal SSD

Samsung 2TB 970 EVO Plus NVMe M.2 Internal SSD

Regular price $236.99 USD
Regular price Sale price $236.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Samsung 2TB 970 EVO Plus NVMe M.2 Internal SSD


Always Evolving SSD
The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for unbeatable computing. Comes in capacities of up to 2TB, with a reliability of up to 1,200 TBW.

Level up Performance
The 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53%* faster than the 970 EVO. Powered by the latest V-NAND technology—which brings greater NAND performance and higher power efficiency—along with optimized firmware, a proven Phoenix controller, and Intelligent TurboWrite boost speed.

Design Flexibility
The next advancement in NVMe SSDs. The 970 EVO Plus fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung's innovative technology empowers you with the capacity to do more and accomplish more.

Exceptional Endurance

The new standard in sustainable performance. Get up to 1,200 TBW* with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung's reputation for quality.

Unparalleled Reliability
Achieve a new level of drive and confidence. Samsung's advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops. Type
Product Type
SSD
Series
970 EVO Plus
Usage Application
Client PCs
Interface
PCIe Gen 3.0 x 4, NVMe 1.3
Application
Consumer
Yes
Storage
Capacity
2,000GB (1GB is 1 Billion bytes by IDEMA) Actual usable capacity may be less (due to formatting, partitioning, operating system, applications, or otherwise)
Key Features
Sequential Read Speed
Up to 3,500 MB/s Performance may vary based on system hardware and configuration
Sequential Write Speed
Up to 3,300 MB/s Performance may vary based on system hardware and configuration
Random Read Speed
Random Read (4KB, QD32): Up to 620,000 IOPS Random Read (4KB, QD1): Up to 19,000 IOPS Performance may vary based on system hardware and configuration
Random Write Speed
Random Write (4KB, QD32): Up to 560,000 IOPS Random Write (4KB, QD1): Up to 62,000 IOPS Performance may vary based on system hardware and configuration
Controller
Samsung Phoenix Controller
NAND Flash
Samsung V-NAND 3-bit MLC
Cache Memory
Samsung 1GB Low Power DDR4 SDRAM
Trim Support
Supported
AES Encryption
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
S.M.A.R.T. Support
Supported
GC (Garbage Collection)
Auto Garbage Collection Algorithm
WWN Support
Not supported
Device Sleep Mode Support
Yes
Temperature proof
Yes
NVMe
Yes
Gaming SSDs
Yes
General
Average Power Consumption (system level)
Average: 6 W Maximum: 9 W (Burst mode) Actual power consumption may vary depending on system hardware and configuration
Power consumption (Idle)
Max. 30 mW Actual power consumption may vary depending on system hardware and configuration
Voltage
3.3 V +/- 5 % Allowable voltage
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
Environmental Specs
Operating Temperature
0 - 70 oC Operating Temperature
Shock
1,500 G and 0.5 ms (Half sine)
Form Factor
Product
M.2 (2280)
Software
Management SW
Magician Software for SSD management
Item Dimension (L"xW"xH")
6 x 4 x 1

Weight
1 lb

Warranty Information
5 years
