Samsung

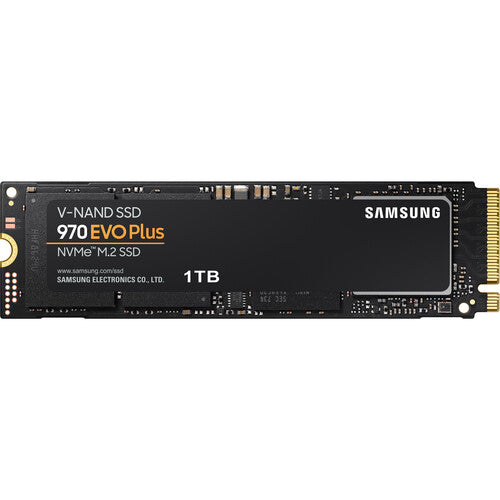

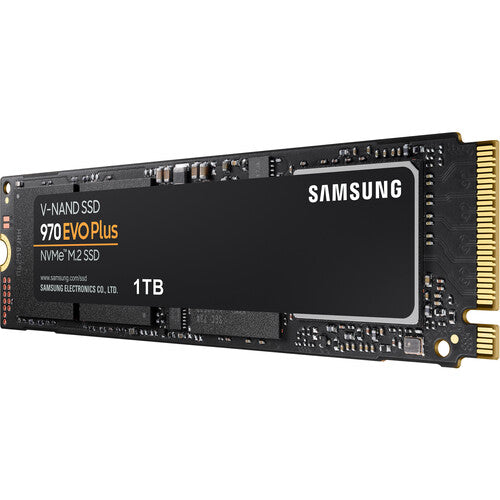

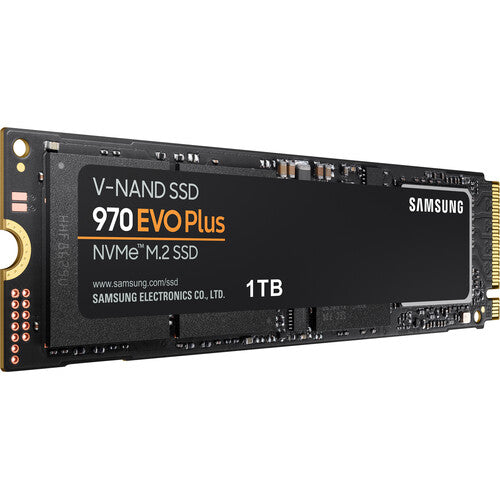

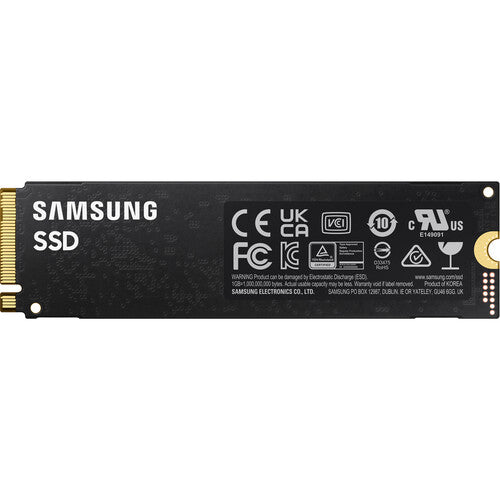

Samsung 1TB 970 EVO Plus NVMe M.2 Internal SSD

Samsung 1TB 970 EVO Plus NVMe M.2 Internal SSD

Regular price $140.99 USD
Regular price Sale price $140.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Samsung 1TB 970 EVO Plus NVMe M.2 Internal SSD


At a Glance
Featuring our latest V-NAND technology and a newly enhanced Phoenix controller, Samsung 970 EVO Plus Series NVMe M.2 SSDs deliver outstanding performance in Non-Volatile Memory Express (NVMe), with exceptionally fast sequential speeds outperforming our standard 970 EVO models. Plus, Samsung's Magician software solution provides advanced functionality for you to manage, monitor, and maintain your drive.
•NVMe speeds up sequential read/write performance, while Samsung TurboWrite technology accelerates write speeds even further
•Compact M.2 form factor ready for high-end computing
•Samsung Magician software for SSD management, including automatic firmware updates
•Ideal for high-performance client PC applications (not designed for server or data center applications and warranty does not support such usage)

Non-Volatile Memory Express (NVMe)
970 EVO Plus 1TB NVMe SSDs with a newly enhanced Phoenix controller outperform our standard 970 EVO 1TB model with exceptionally fast sequential read/write speeds up to 3,500/3,300 MB/s. They also support PCI Express® (PCIe) Gen 3 x 4 lanes to provide high bandwidth and low latency, making them perfect for business professionals who need cutting edge-performance for high-end computing.


TurboWrite Technology
Samsung’s intelligent TurboWrite technology helps maximize your computing ability, accelerating write speeds above and beyond the already fast speeds of NVMe.


Dynamic Thermal Guard
Professional-Quality Drive Management
V-NAND Technology
SSD Data Security
Highly-Efficient Power Management
Samsung SSD Components Type
Product Type
SSD
Series
970 EVO Plus
Usage Application
Client PCs
Interface
PCIe Gen 3.0 x 4, NVMe 1.3
Application
Consumer
Yes
Storage
Capacity
1,000GB (1GB is equal to 1 Billion bytes by IDEMA)
Actual usable capacity may be less (due to formatting, partitioning, operating system, applications, or otherwise)
Key Features
Sequential Read Speed
Up to 3,500 MB/s ( Performance may vary based on system hardware and configuration)
Sequential Write Speed
Up to 3,300 MB/s ( Performance may vary based on system hardware and configuration)
Random Read Speed
Random Read (4KB, QD32): Up to 600,000 IOPS, Random Read (4KB, QD1): Up to 19,000 IOPS (Performance may vary based on system hardware and configuration)
Random Write Speed
Random Write (4KB, QD32): Up to 550,000 IOPS, Random Write (4KB, QD1): Up to 60,000 IOPS (Performance may vary based on system hardware and configuration)
Controller
Samsung Phoenix Controller
NAND Flash
Samsung V-NAND 3-bit MLC
Cache Memory
Samsung 1GB Low Power DDR4 SDRAM
Trim Support
Supported
AES Encryption
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
S.M.A.R.T. Support
Supported
GC (Garbage Collection)
Auto Garbage Collection Algorithm
WWN Support
Not supported
Device Sleep Mode Support
Yes
Temperature proof
Yes
NVMe
Yes
Gaming SSDs
Yes
General
Average Power Consumption (system level)
Average: 6 W Maximum: 9 W (Burst mode)
Actual power consumption may vary depending on system hardware and configuration
Power consumption (Idle)
Max. 30 mW (Actual power consumption may vary depending on system hardware and configuration)
Voltage
3.3 V +/- 5 % Allowable voltage
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
Environmental Specs
Operating Temperature
0 - 70oC Operating Temperature
Shock
1,500 G and 0.5 ms (Half sine)
Form Factor
Product
M.2 (2280)
Software
Management SW
Magician Software for SSD management
Item Dimension (L"xW"xH")
6 x 4 x 1
Weight
1.00 LB
Warranty Information
5 years or 600TB TBW
