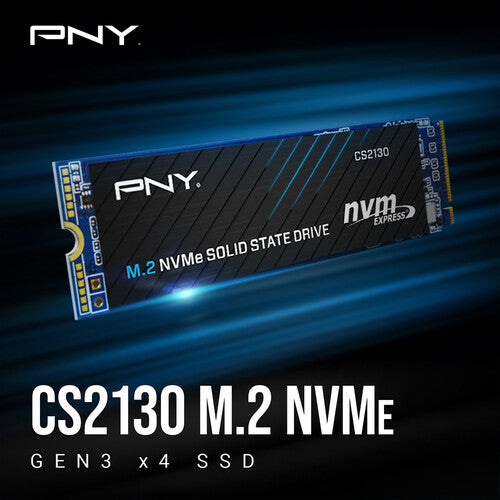

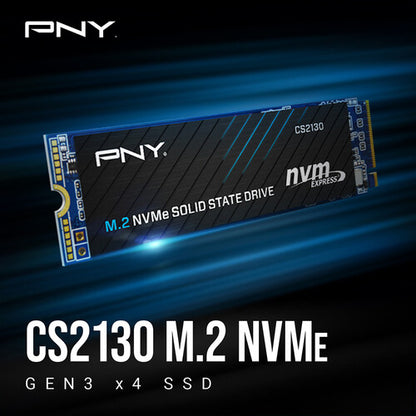

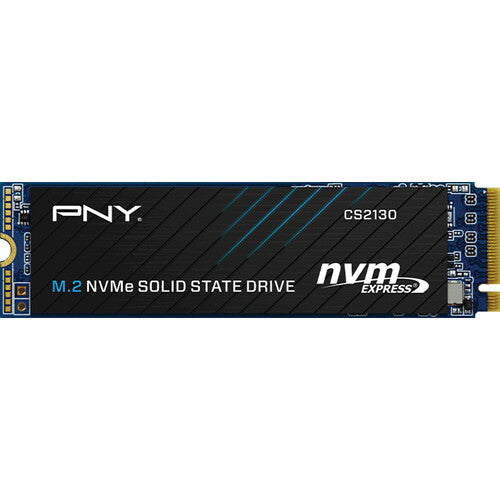

PNY CS2130 500GB M.2 PCIe NVMe Gen 3 x4 SSD
CS2130 SOLID STATE DRIVES
The PNY CS2130 M.2 NVMe SSD is an excellent choice for an NVMe upgrade from a SATA based solid state drive (SSD) in an NVMe enabled PC or MAC desktop or laptop computer. The CS2130 drive is designed to be a high performance SATA SSD replacement to help realize faster boot times, quicker application launches, and better overall system performance. Do more in less time with NVMe; boot up, power down, and load applications up to 6 times faster than with SATA based SSD’s.
The NVMe interface delivers exceptional performance of up to 3,500 MB/s seq. read and 3,000 MB/s seq. write speeds. It is designed to be a high performance SATA SSD replacement to help realize faster boot times, quicker application launches, and better overall system performance. With no moving parts, the PNY CS2130 is highly durable, less likely to fail, and supports a 5 year warranty.
The PNY CS2130 is engineered with the same level of quality and durability that our consumers have enjoyed with the CS900 SSD. We've taken the world's most advanced NAND flash and refined the CS2130 to achieve a higher threshold for endurance and reliability. PNY's extensive testing and rigorous validation process ensures compatibility across various platforms and multiple operating systems.
APPLICATIONS
• NVMe upgrade from a SATA based solid state drive (SSD) in an NVMe enabled PC or MAC desktop or laptop computer
• High performance SSD with up to 6 times the performance as compared to SATA based SSDs
FEATURES AND BENEFITS

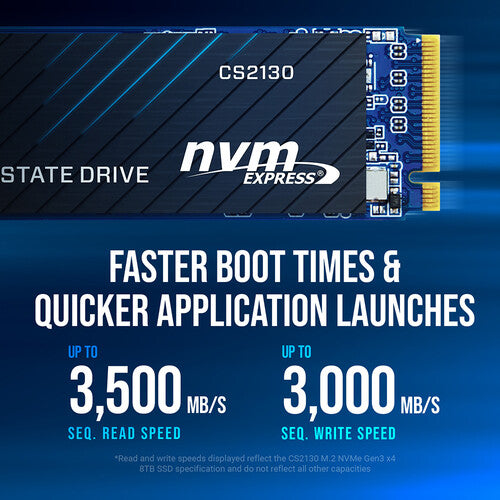

• Sequential Read of up to 3,500 MB/s and Write of up to 3,000 MB/s
• Faster boot up and quicker application launch
• Better overall system performance
• Reliable storage
• Low power consumption, cool and quiet operation
PRODUCT SPECIFICATIONS
NAND Components
3D Flash Memory
Interface
PCIe Gen3 x4
Form Factor
M.2 2280
PERFORMANCE (MAX SEQUENTIAL READ/WRITE)
500GB
3,500 MB/s (Read), 925 MB/s (Write)
POWER
PCIe Power Management
APST, ASPM, L1.2
ENVIRONMENTAL
Operating Temperature
0oC - 70oC
Storage Temperature
-40oC - 85oC
Certifications
BSMI, CE, FCC, KCC, REACH, RoHS, VCCI
RELIABILITY/SECURITY
Mean Time Between Failures (MTBF)
2,000,000 Hours
Error Correction Code
LDPC (Low-Density Parity Check) ECC Algorithm
Product Health Monitoring
Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T)
Full End-to-End Data path protection
Supported
Encryption
AES256
COMPATIBILITY
RAID (0/1)
Supported
NVMe
NVMe 1.3
ADDITIONAL FEATURES
Performance Optimization
TRIM (requires OS support)
PRODUCT INFORMATION
Usable Capacities (IDEMA)
500GB
Item Dimension (L"x W"x H")
4 x 1 x 6
Weight
1.00 LB
Warranty Information
5 Year
Country of Origin
TAIWAN
