MSI Z690-A DDR5 ATX Desktop Motherboard

MSI Z690-A DDR5 ATX Desktop Motherboard

Regular price $256.99 USD
Regular price Sale price $256.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

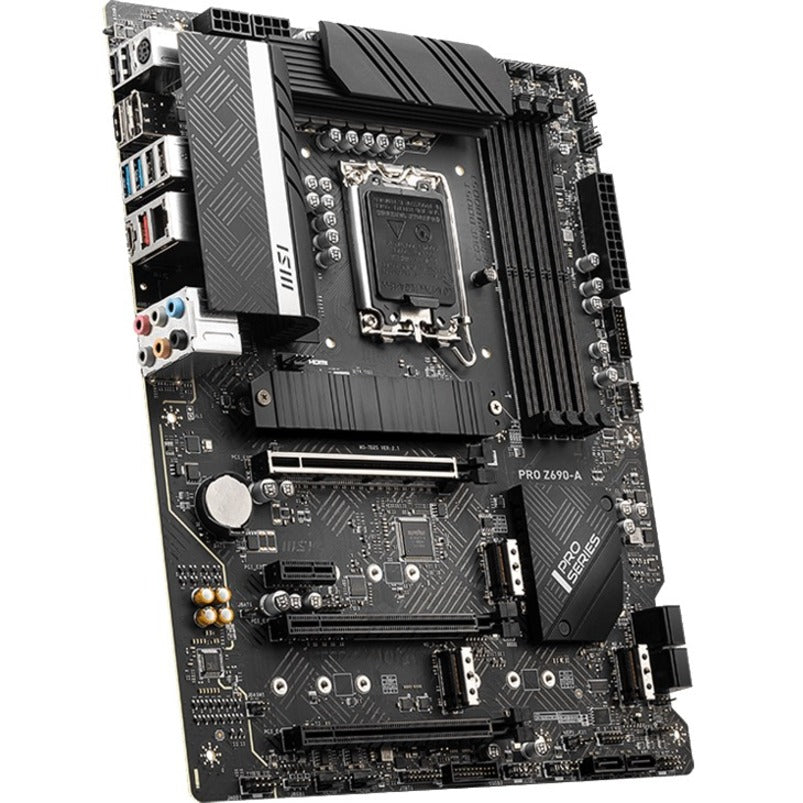

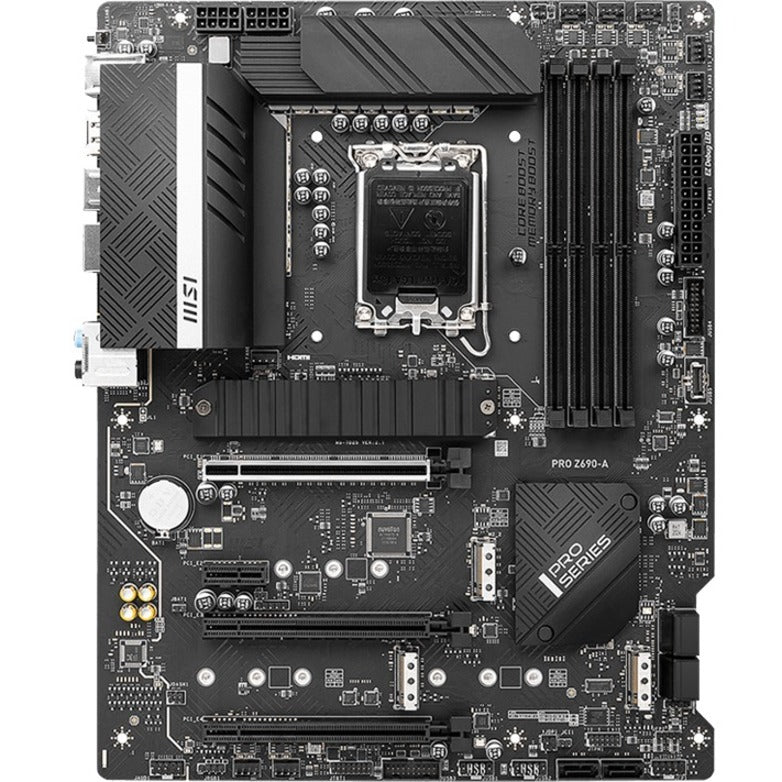

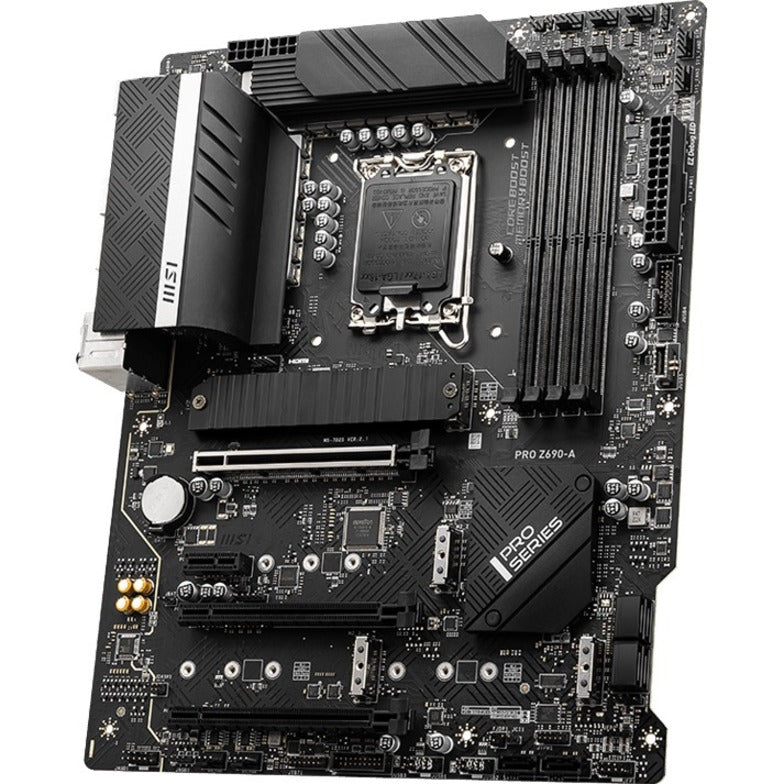

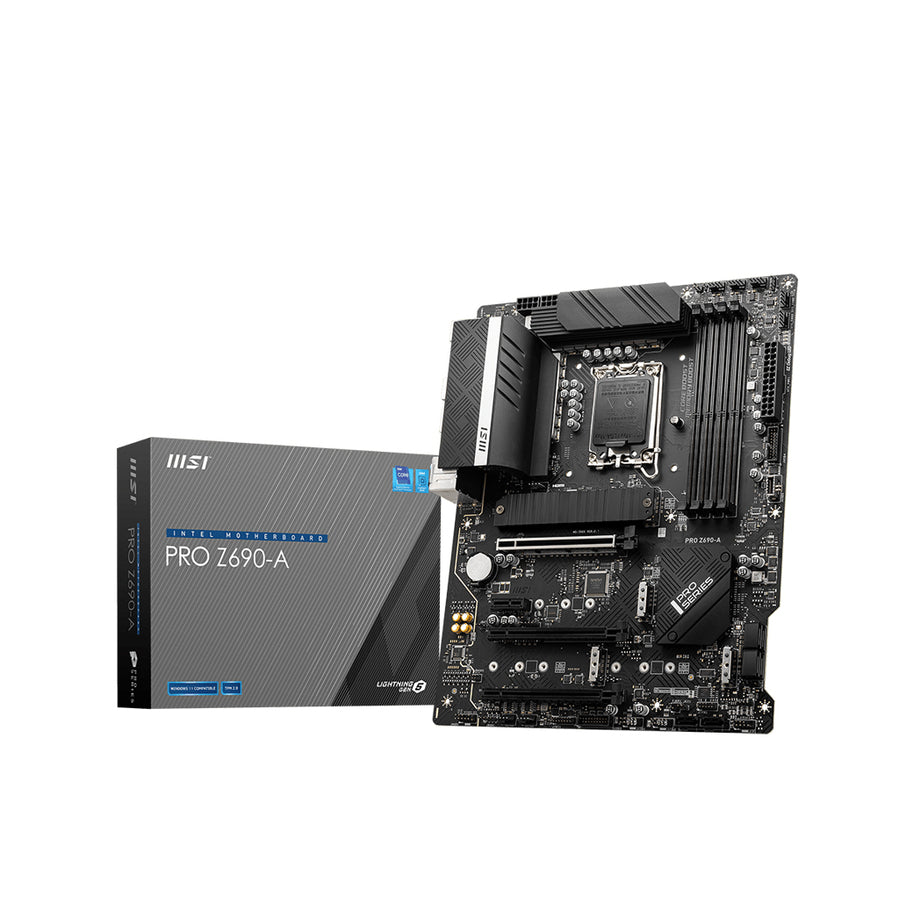

MSI Z690-A DDR5 ATX Desktop Motherboard

Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX

Pentium Gold, Celeron, Core i5, Core i7, Core i9 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - HDMI - DisplayPort - 6 x SATA Interfaces

Unleash and sustain maximum performance with an aggressive VRM design built with a total of 14 digital CPU power phases. Combining 2x 8-pin power connectors and exclusive Core Boost technology, PRO series motherboard is ready to sustain heavy daily work.


Product Overview

UPC Code: 824142270387
Manufacturer Warranty: 3 Years
Add'l Return Info: Past Exch-Call MSI 626-913-0828 x159
Country of Origin: CHINA

General Information

Manufacturer:   MSI
Manufacturer Part Number:   PROZ690A
Manufacturer Website Address:   www.msi.com
Brand Name:   MSI
Product Series:   PRO
Product Model:   Z690-A
Product Name:   PRO Z690-A Desktop Motherboard
Product Type:   Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:   Intel
Chipset Model:   Z690
Total Processor Supported:   1
Processor Socket:   Socket LGA-1700
Processor Generation Supported:   12th Gen
Processor Supported:   Celeron
Processor Supported:   Core i5
Processor Supported:   Core i7
Processor Supported:   Core i9
Processor Supported:   Pentium Gold
Multi GPU Supported:   CrossFire

Memory

Number of Memory Slots:   4
Memory Form Factor:   UDIMM
Memory Form Factor:   DIMM
Maximum Memory Supported:   128 GB
Memory Technology:   DDR5 SDRAM
Memory Speed Supported:   4800 MHz
Memory Speed Supported:   6400 MHz
Memory Speed Supported:   4000 MHz
Memory Speed Supported:   5400 MHz
Intel Optane Memory Ready:   Yes

I/O Controller

Controller Type:   Serial ATA/600
RAID Supported:   Yes
RAID Levels:   0
RAID Levels:   1
RAID Levels:   10
RAID Levels:   5

Video

Onboard Video:   CPU Dependent Video

Audio

Audio Channels:   7.1

Network & Communication

2.5Gigabit Ethernet:   Yes

I/O Expansions

Number of Total Expansion Slots:   4
Total Number of PCI Express Slots:   4
Number of PCI Express x4 Slots:   1
Number of PCI Express x16 Slots:   3

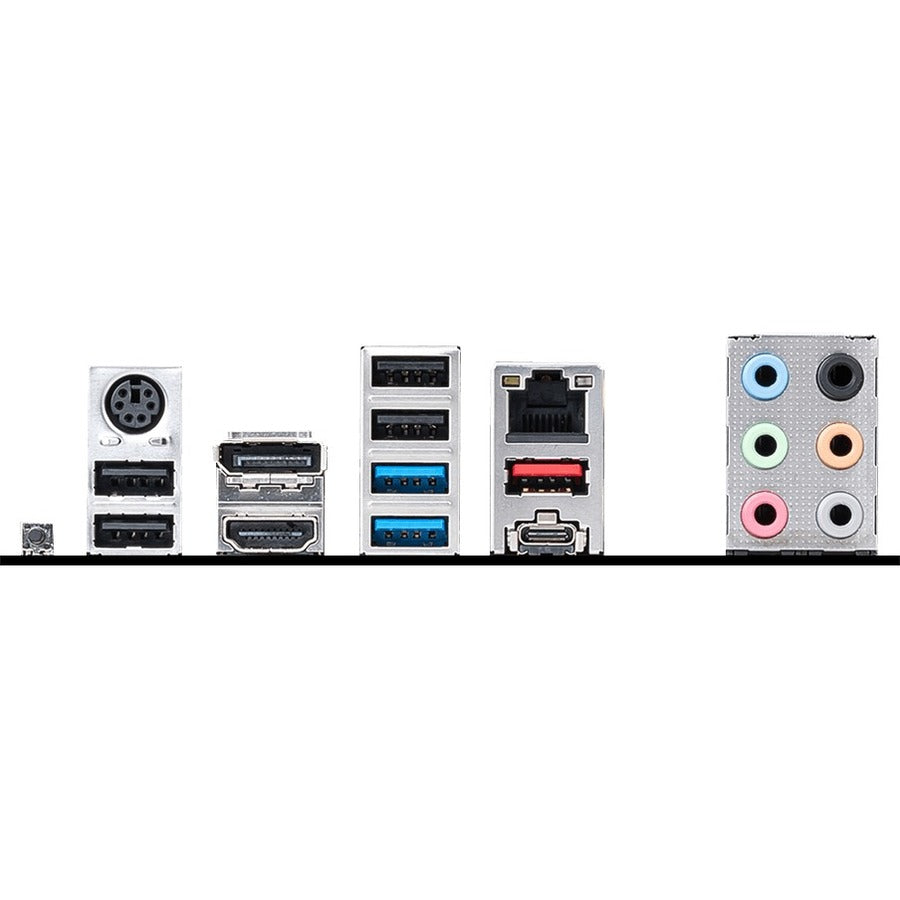

Interfaces/Ports

Total Number of USB Ports:   8
Number of USB 2.0 Ports:   4
Number of USB 3.2 Ports:   1
Number of USB 3.2 Gen 1 Ports:   2
Number of USB 3.2 Gen 2 Type-A Ports:   1
S/PDIF:   Yes
HDMI:   Yes
DisplayPort:   Yes
Number of Network (RJ-45) Ports:   1

Onboard Interfaces

Number of SATA Interfaces:   6
Number of M.2 Interfaces:   4
Total Number of Onboard USB Ports:   9
Number of Onboard USB 2.0 Ports:   4
Number of Onboard USB 3.2 Ports:   5

Physical Characteristics

Form Factor:   ATX
Width:   12"
Depth:   9.6"

Miscellaneous

Package Contents:
  • PRO Z690-A Desktop Motherboard
  • Quick Installation Guide
  • M.2 Screw / Standoff Sets
  • 2 x M.2 Clips
  • 2 x SATA Cables
  • Product Registration Card
  • I/O Shield
  • Driver DVD

Brand Compatibility:   Intel
Country of Origin:   China

Warranty

Limited Warranty:   3 Year
