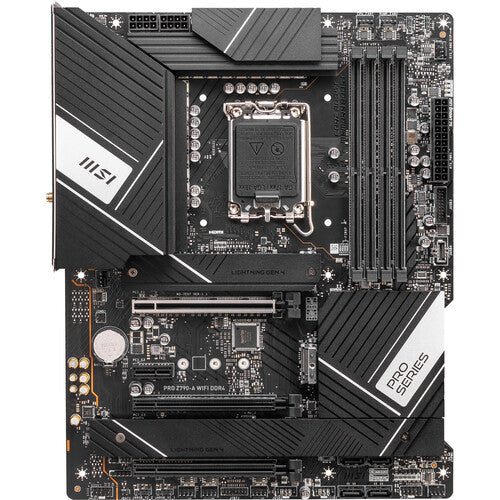

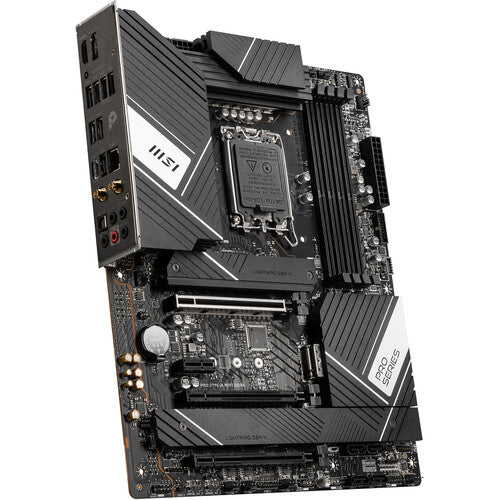

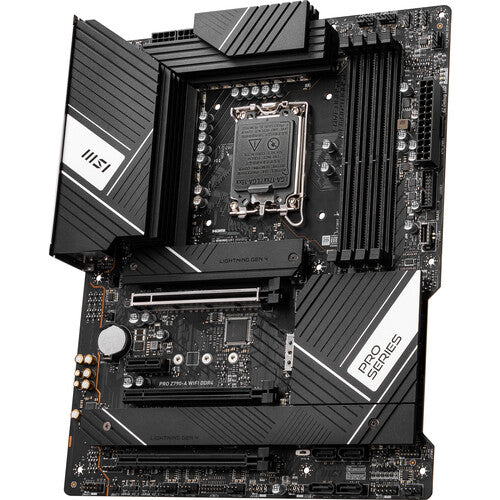

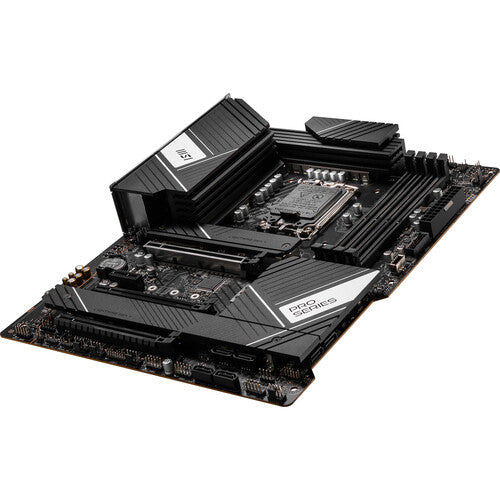

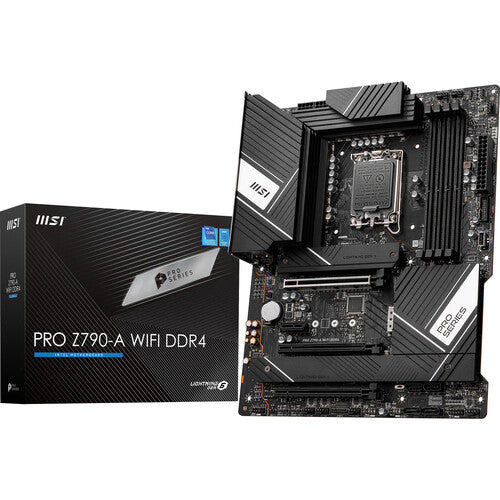

MSI PRO Z790-A WIFI DDR4 Desktop Motherboard

MSI PRO Z790-A WIFI DDR4 Desktop Motherboard

PRO Z790-A WIFI DDR4

PRO Z790-A WIFI DDR4 is designed with tons of flexible tools and convenient Wi-Fi solution with DDR4 memory version.

BUSINESS ELEGANCE

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

PRO Z790-A WIFI DDR4 Motherboard supports 12th and 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors. It features Lightning Gen 5 which is the latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed. Wi-Fi 6E is the latest wireless solution that supports 6GHz spectrum, MU-MIMO and BSS color technology and delivers speeds up to 2400Mbps. Built-in USB 3.2 Gen 2x2 port offers 20Gbps transmission speed which is four times faster than USB 3.2 Gen 1. MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed. M.2 Shield FROZR is a strengthened built-in M.2 thermal solution that keeps M.2 SSDs safe while preventing throttling and making them run faster. Frozr AI Cooling detects CPU and GPU temperatures and automatically adjusts system fan duty to a proper value. Memory Boost technology delivers pure data signals for the best performance, stability and compatibility, while Core Boost supports more cores to provide better performance with premium layout and fully digital power design.

Product Type:   Desktop Motherboard

General Information

Manufacturer:   MSI

Manufacturer Part Number:   PROZ790AWIFID4

Brand Name:   MSI

Product Series:   PRO

Product Model:   Z790-A WIFI DDR4

Product Name:   PRO Z790-A WIFI DDR4 Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:   Intel

Chipset Model:   Z790

Total Processor Supported:   1

Processor Socket:   Socket LGA-1700

Processor Generation Supported:   13th Gen

Processor Supported:   Core i5

Processor Supported:   Core i7

Processor Supported:   Celeron

Processor Supported:   Core i3

Processor Supported:   Core i9

Processor Supported:   Pentium Gold

Memory

Number of Memory Slots:   4

Memory Form Factor:   DIMM

Memory Form Factor:   UDIMM

Maximum Memory Supported:   128 GB

Memory Technology:   DDR4 SDRAM

Memory Speed Supported:   2133 MHz

Memory Speed Supported:   2400 MHz

Memory Speed Supported:   2666 MHz

Memory Speed Supported:   2800 MHz

Memory Speed Supported:   2933 MHz

Memory Speed Supported:   3000 MHz

Memory Speed Supported:   3200 MHz

Memory Speed Supported:   3333 MHz

Memory Speed Supported:   3466 MHz

Memory Speed Supported:   3600 MHz

Memory Speed Supported:   3733 MHz

Memory Speed Supported:   3866 MHz

Memory Speed Supported:   4000 MHz

Memory Speed Supported:   4266 MHz

Memory Speed Supported:   4400 MHz

Memory Speed Supported:   4533 MHz

Memory Speed Supported:   4600 MHz

Memory Speed Supported:   4800 MHz

Memory Speed Supported:   5000 MHz

Memory Speed Supported:   5066 MHz

Memory Speed Supported:   5200 MHz

Memory Speed Supported:   5333 MHz

I/O Controller

Controller Type:   Serial ATA/600

RAID Supported:   Yes

RAID Levels:   0

RAID Levels:   1

RAID Levels:   10

RAID Levels:   5

Video

Onboard Video:   CPU Dependent Video

Audio

Audio Channels:   7.1

Network & Communication

Bluetooth:   Yes

2.5Gigabit Ethernet:   Yes

Wireless LAN:   Yes

Wireless LAN Standard:   IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions

Number of Total Expansion Slots:   4

Total Number of PCI Express Slots:   4

Number of PCI Express x1 Slots:   1

Number of PCI Express x16 Slots:   3

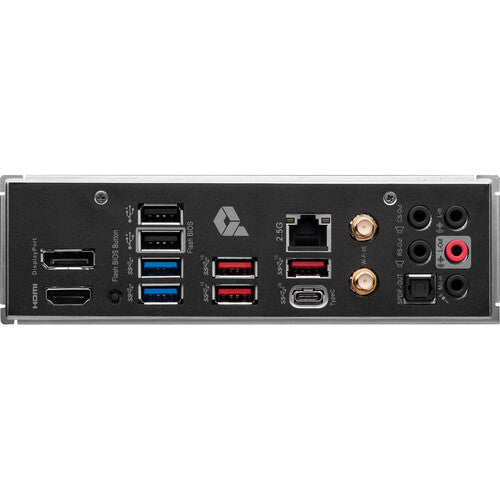

Interfaces/Ports

Total Number of USB Ports:   8

Number of USB 2.0 Ports:   2

Number of USB 3.2 Ports:   1

Number of USB 3.2 Gen 1 Ports:   2

Number of USB 3.2 Gen 2 Type-A Ports:   3

S/PDIF:   Yes

HDMI:   Yes

DisplayPort:   Yes

Number of Network (RJ-45) Ports:   1

Onboard Interfaces

Number of SATA Interfaces:   6

Number of M.2 Interfaces:   4

Total Number of Onboard USB Ports:   7

Number of Onboard USB 2.0 Ports:   4

Number of Onboard USB 3.2 Ports:   3

Physical Characteristics

Form Factor:   ATX

Width:   12"

Depth:   9.6"

Miscellaneous

Package Contents:

MPG Z790 EDGE WIFI DDR4 Gaming Desktop Motherboard

European Union Regulatory Notice

Quick Installation Guide

Wi-Fi Antenna

2 x SATA Cables

M.2 Clip

M.2 Screw / Standoff Sets

Driver DVD

Brand Compatibility:   Intel

Country of Origin:   China

Warranty

Limited Warranty:   3 Year
