MSI MPG Z790 EDGE WIFI DDR4 Gaming Desktop Motherboard

MSI MPG Z790 EDGE WIFI DDR4 Gaming Desktop Motherboard

MPG Z790 EDGE WIFI DDR4
MPG Z790 EDGE WIFI DDR4 employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful.

BE AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

16+1+1 DUET RAIL POWER SYSTEM
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 16+1+1 Duet Rail Power System. Combining dual power connectors and 90A Smart Power Stage, MPG Z790 EDGE WIFI DDR4 is ready for the challenge of high-end processors.

OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

General Information

Manufacturer:   MSI

Manufacturer Part Number:   Z790EDGEWID4

Product Line:   MPG

Product Model:   Z790 EDGE WIFI DDR4

Product Name:   MPG Z790 EDGE WIFI DDR4 Gaming Desktop Motherboard

Product Type:   Gaming Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:   Intel

Chipset Model:   Z790

Total Processor Supported:   1

Processor Socket:   Socket LGA-1700

Processor Generation Supported:   13th Gen

Processor Supported:   Celeron

Processor Supported:   Core i3

Processor Supported:   Core i5

Processor Supported:   Core i7

Processor Supported:   Core i9

Processor Supported:   Pentium Gold

Memory

Number of Memory Slots:   4

Memory Form Factor:   UDIMM

Memory Form Factor:   DIMM

Maximum Memory Supported:   128 GB

Memory Technology:   DDR4 SDRAM

Memory Speed Supported:   2133 MHz

Memory Speed Supported:   2400 MHz

Memory Speed Supported:   2666 MHz

Memory Speed Supported:   2800 MHz

Memory Speed Supported:   2933 MHz

Memory Speed Supported:   3000 MHz

Memory Speed Supported:   3200 MHz

Memory Speed Supported:   3333 MHz

Memory Speed Supported:   3466 MHz

Memory Speed Supported:   3600 MHz

Memory Speed Supported:   3733 MHz

Memory Speed Supported:   3866 MHz

Memory Speed Supported:   4000 MHz

Memory Speed Supported:   4266 MHz

Memory Speed Supported:   4400 MHz

Memory Speed Supported:   4533 MHz

Memory Speed Supported:   4600 MHz

Memory Speed Supported:   4800 MHz

Memory Speed Supported:   5000 MHz

Memory Speed Supported:   5066 MHz

Memory Speed Supported:   5200 MHz

Memory Speed Supported:   5333 MHz

I/O Controller

Controller Type:   Serial ATA/600

RAID Supported:   Yes

RAID Levels:   0

RAID Levels:   1

RAID Levels:   10

RAID Levels:   5

Video

Onboard Video:   CPU Dependent Video

Audio

Audio Channels:   7.1

Network & Communication

Bluetooth:   Yes

2.5Gigabit Ethernet:   Yes

Wireless LAN:   Yes

Wireless LAN Standard:   IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions

Number of Total Expansion Slots:   3

Total Number of PCI Express Slots:   3

Number of PCI Express x1 Slots:   1

Number of PCI Express x16 Slots:   2

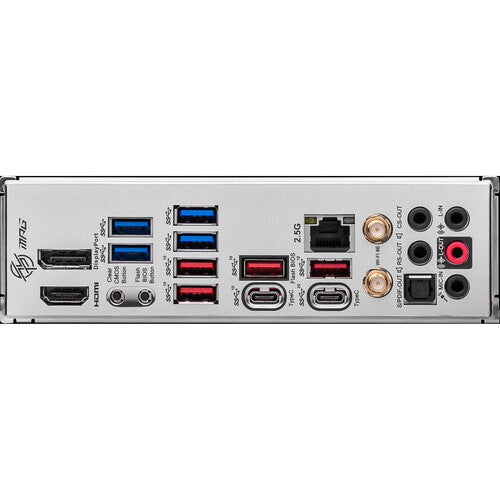

Interfaces/Ports

Total Number of USB Ports:   10

Number of USB 3.2 Ports:   2

Number of USB 3.2 Gen 1 Ports:   4

Number of USB 3.2 Gen 2 Type-A Ports:   4

S/PDIF:   Yes

HDMI:   Yes

DisplayPort:   Yes

Number of Network (RJ-45) Ports:   1

Onboard Interfaces

Number of SATA Interfaces:   7

Number of M.2 Interfaces:   5

Total Number of Onboard USB Ports:   7

Number of Onboard USB 2.0 Ports:   4

Number of Onboard USB 3.2 Ports:   3

Physical Characteristics

Product Color:   Silver White

Form Factor:   ATX

Width:   12"

Depth:   9.6"

Miscellaneous

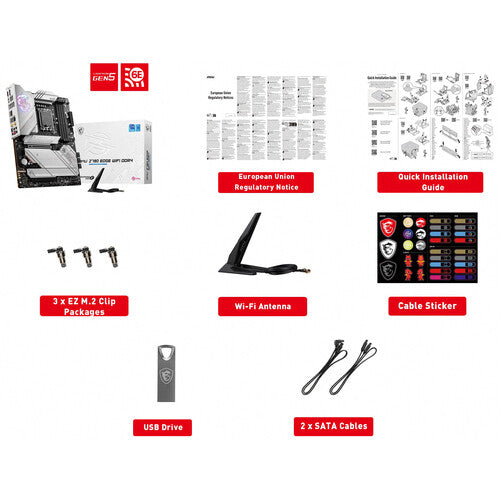

Package Contents:

MPG Z790 EDGE WIFI DDR4 Gaming Desktop Motherboard

European Union Regulatory Notice

Quick Installation Guide

Wi-Fi Antenna

2 x SATA Cables

Cable Stickers

3 x M.2 Screw Package

USB Drive

Brand Compatibility:   Intel

Country of Origin:   China

Warranty

Limited Warranty:   3 Year
