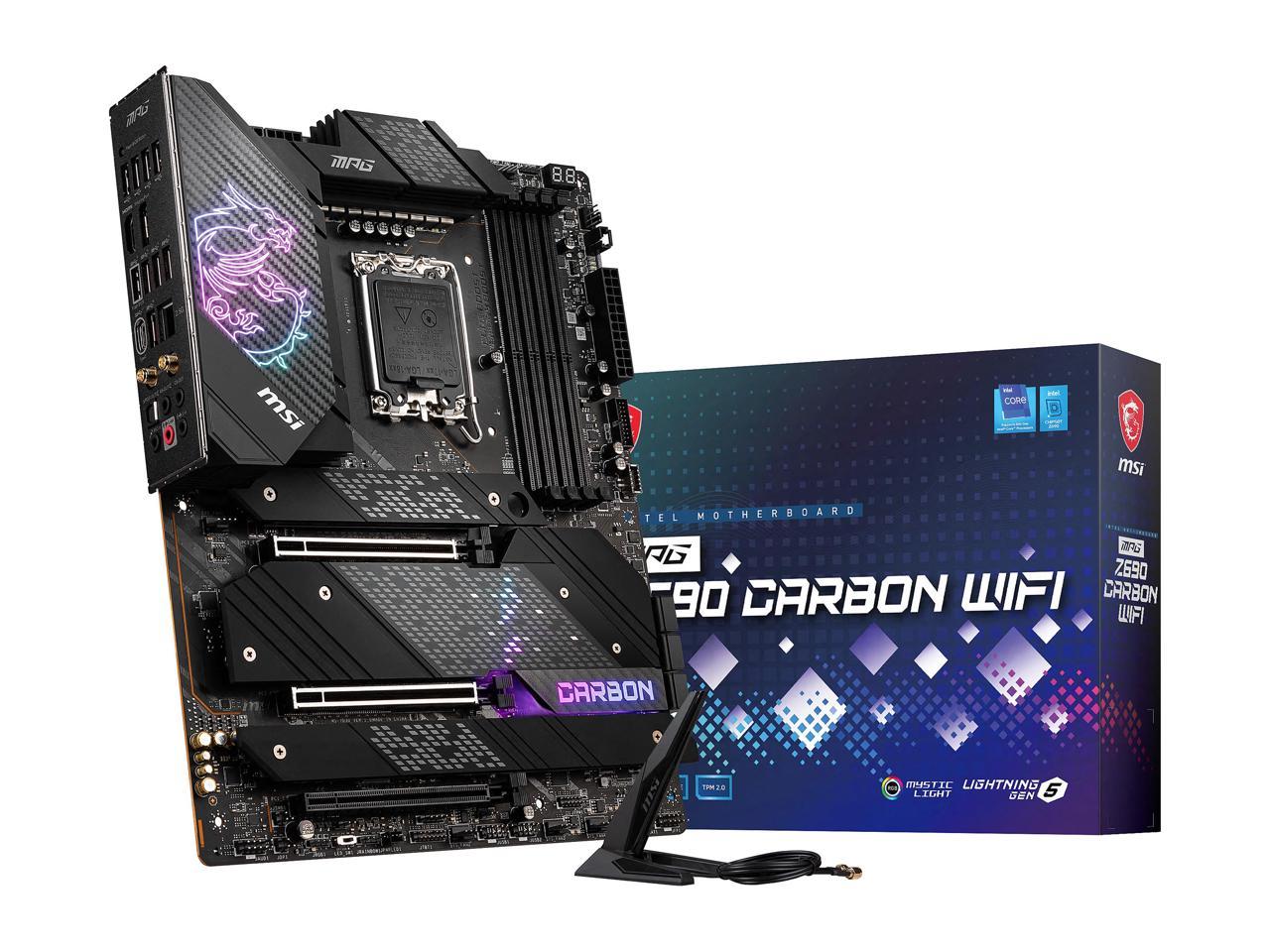

PREMIUM HARDWARE DESIGN With years of experience, MSI is no stranger to building high-performance motherboards. Our RD and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions. ENHANCED PERFORMANCE High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether youre a gamer, prosumer, or PC enthusiast. LATEST DDR5 MEMORY A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG Z690 CARBON WIFI is ready to deliver the world class memory performance. CONNECTIVITY MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one. HIGH-BANDWIDTH AND LOW-LATENCY NETWORK 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. SURFACING WITH THE REAL MU-MIMO TECHNOLOGY The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps. OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

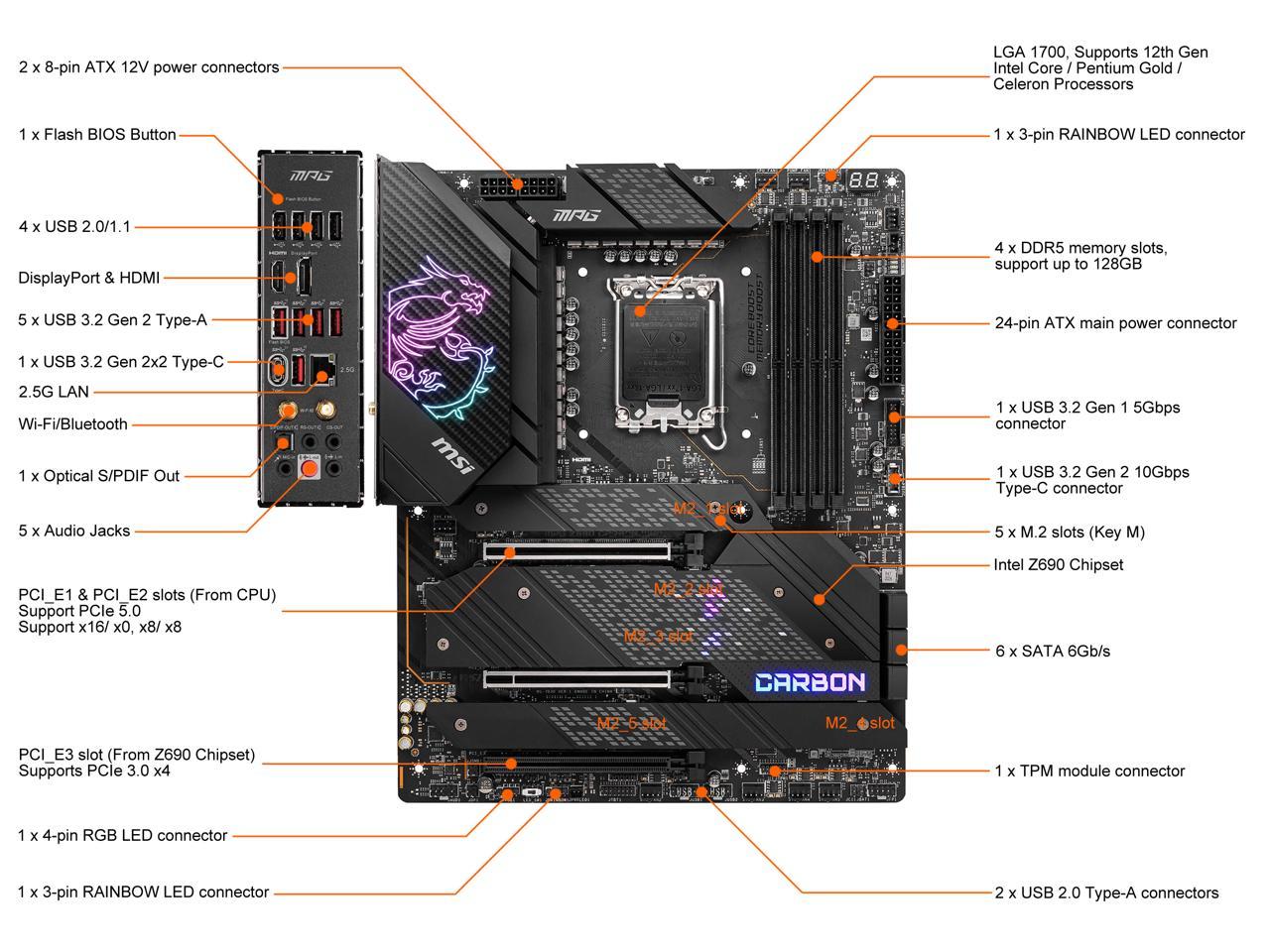

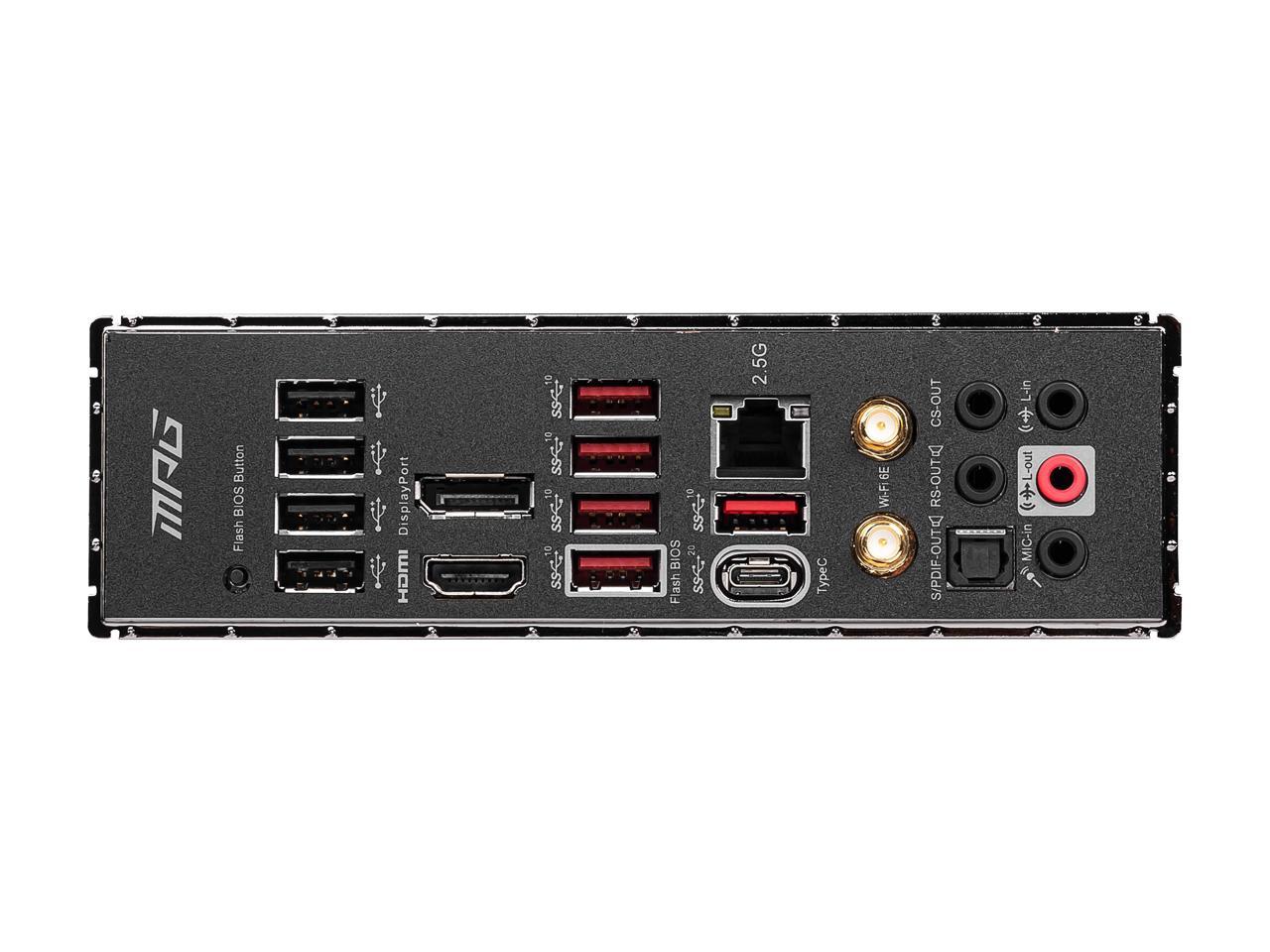

CPU (MAX SUPPORT) i9 SOCKET 1700 CHIPSET Intel Z690 Chipset DDR5 MEMORY 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz MEMORY CHANNEL Dual DIMM SLOTS 4 MAX MEMORY (GB) 128 PCI-E X16 3 SATAIII 6 M.2 SLOT 5 RAID 0/1/5/10 LAN 1x Intel I225V 2.5Gbps LAN controller WIFI AND BLUETOOTH Intel Wi-Fi 6E module USB 3.2 PORTS (FRONT) 1(Gen 2, Type C), 2(Gen 1, Type A) USB 3.2 PORTS (REAR) 1(Gen 2x2, Type C), 5(Gen 2, Type A) USB 2.0 PORTS (FRONT) 4 USB 2.0 PORTS (REAR) 4 AUDIO PORTS (REAR) 5+ Optical S/PDIF (Realtek ALC4080 Codec) DISPLAYPORT 1 HDMI 1
