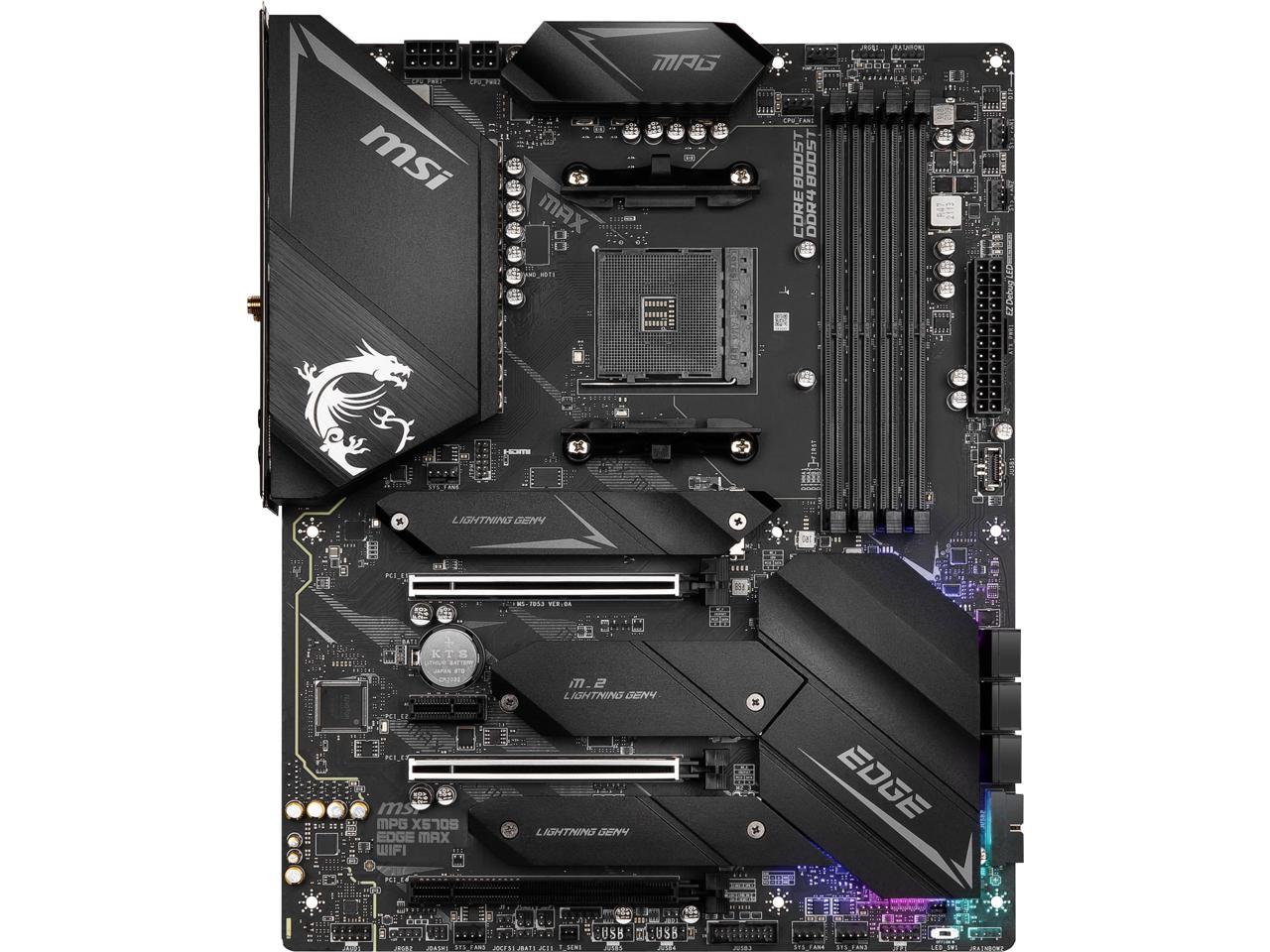

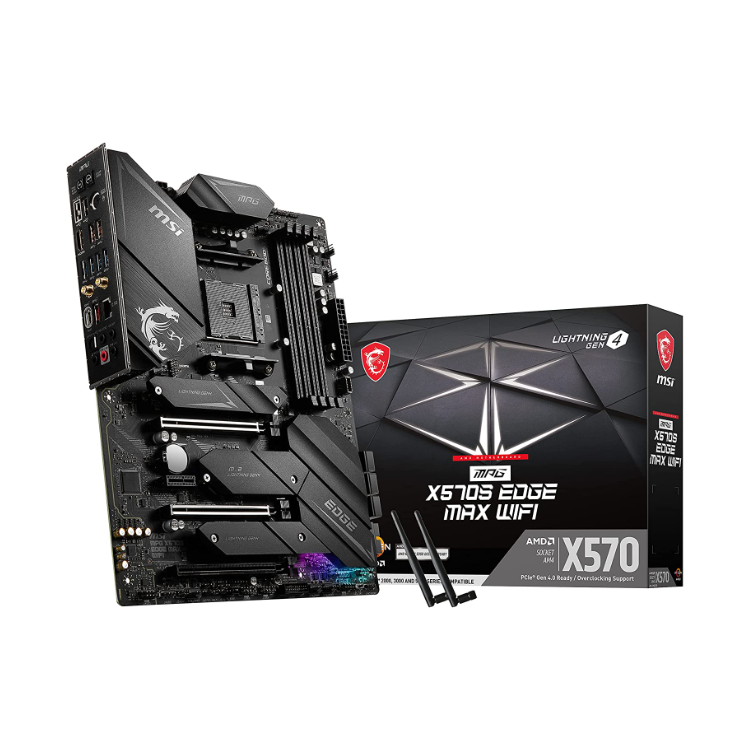

MSI MPG X570S EDGE MAX WIFI ATX Gaming Motherboard

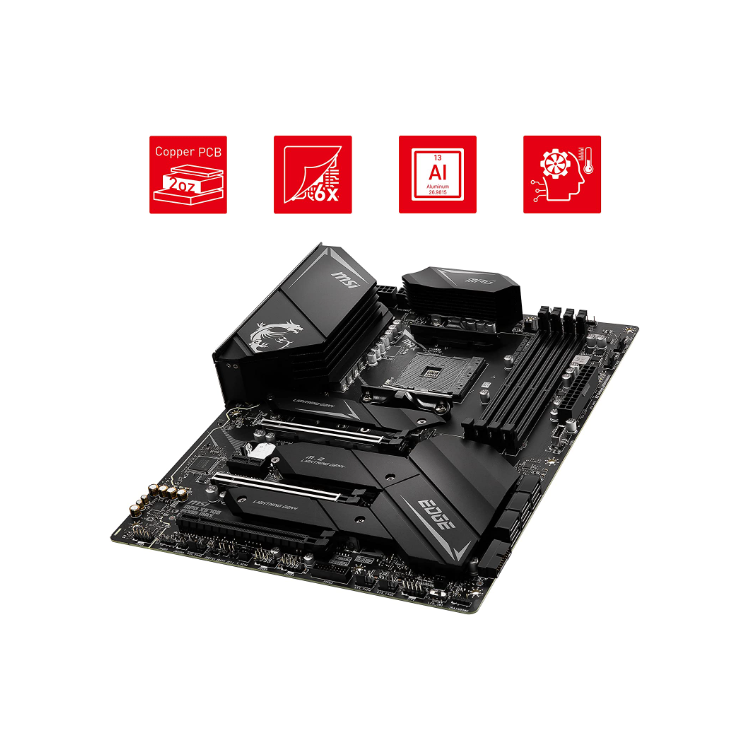

PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

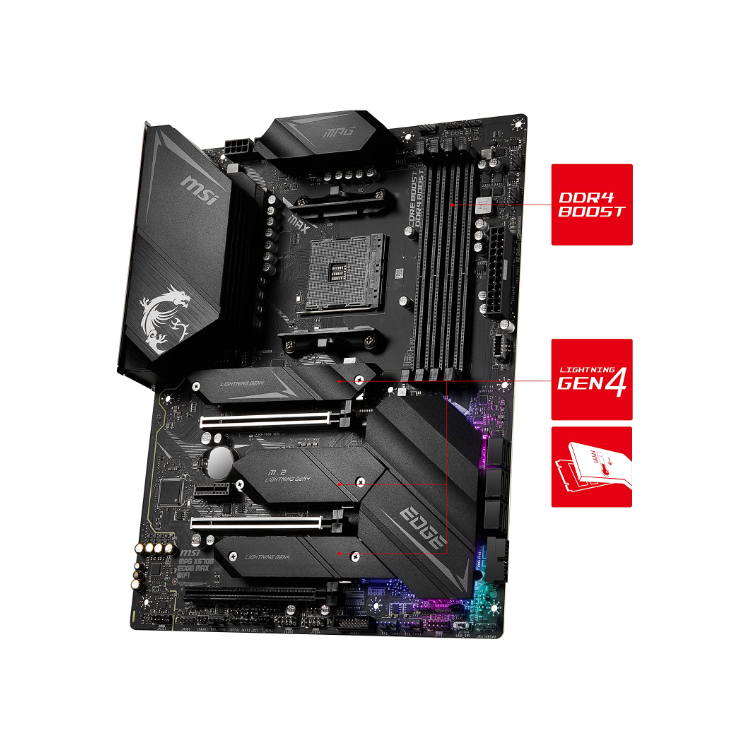

M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
ENHANCED PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
Specifications
MSI MPG X570S EDGE MAX WIFI ATX Gaming Motherboard
Brand Name: MSI
Product Line: MPG
Product Model: X570S EDGE MAX WIFI
Product Name: MPG X570S EDGE MAX WIFI Desktop Motherboard
Product Type: Desktop Motherboard

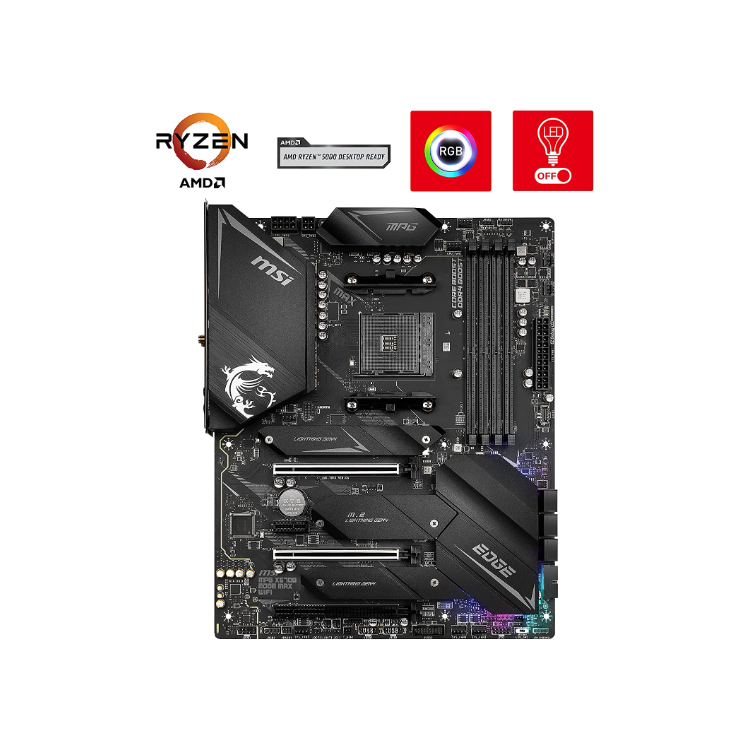

Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: X570
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported: Ryzen 7
Processor Supported: Ryzen 9
Processor Supported: Ryzen 3
Processor Supported: Ryzen 3 PRO
Processor Supported: Ryzen 5
Processor Supported: Ryzen 5 Pro
Processor Supported: Ryzen 7 PRO

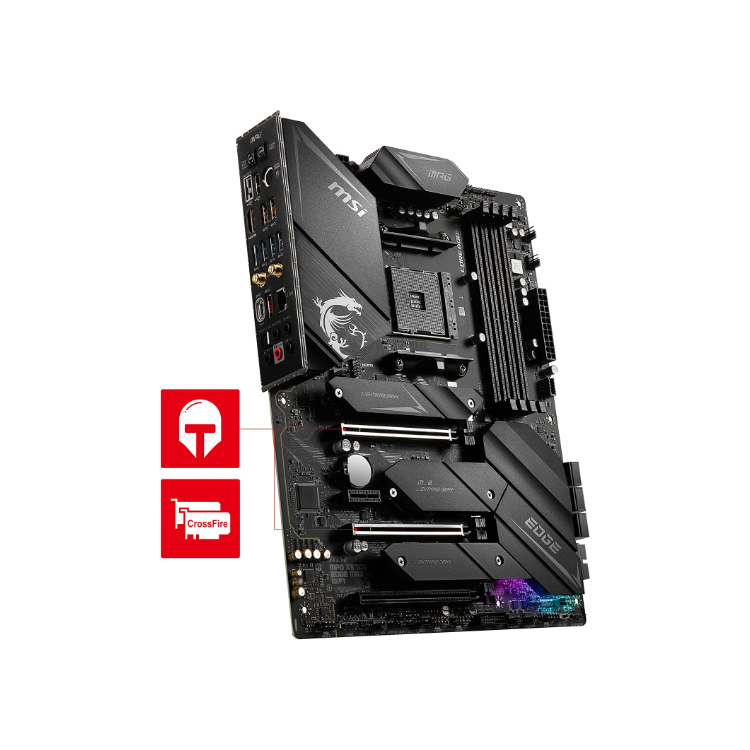

Multi GPU Supported: CrossFire
Memory
Number of Memory Slots: 4
Memory Form Factor: DIMM
Memory Form Factor: UDIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 1866 MHz
Memory Speed Supported: 2133 MHz
Memory Speed Supported: 2667 MHz
Memory Speed Supported: 3000 MHz
Memory Speed Supported: 3066 MHz
Memory Speed Supported: 3200 MHz
Memory Speed Supported: 4000 MHz
Memory Speed Supported: 2400 MHz
Memory Speed Supported: 2800 MHz
Memory Speed Supported: 2933 MHz
Memory Speed Supported: 3600 MHz
Memory Speed Supported: 4266 MHz
Memory Speed Supported: 4400 MHz
Memory Speed Supported: 5100 MHz
Memory Speed Supported: 5300 MHz
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10
RAID Levels: 0
RAID Levels: 1
Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 3

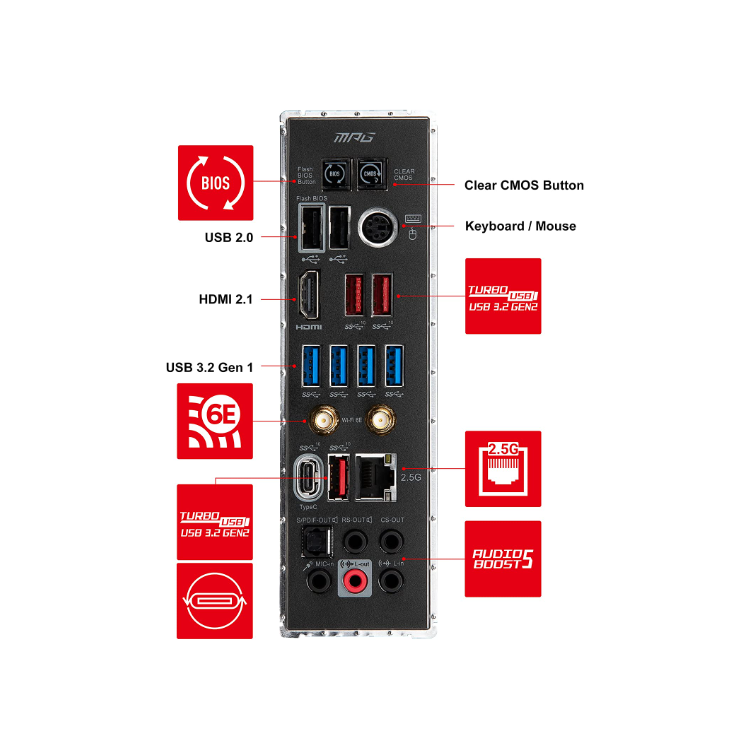

Interfaces/Ports
Total Number of USB Ports: 10
Number of USB 2.0 Ports: 2
Number of USB 3.2 Ports: 1
Number of USB 3.2 Gen 1 Ports: 4
Number of USB 3.2 Gen 2 Type-A Ports: 3
S/PDIF: Yes
HDMI: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 9
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 5
Physical Characteristics
Form Factor: ATX
Width: 12"
Depth: 9.6"
Miscellaneous
Brand Compatibility: AMD
Country of Origin: China
Warranty
Limited Warranty: 3 Year
