MSI MEG X570S UNIFY-X MAX ATX Gaming Motherboard

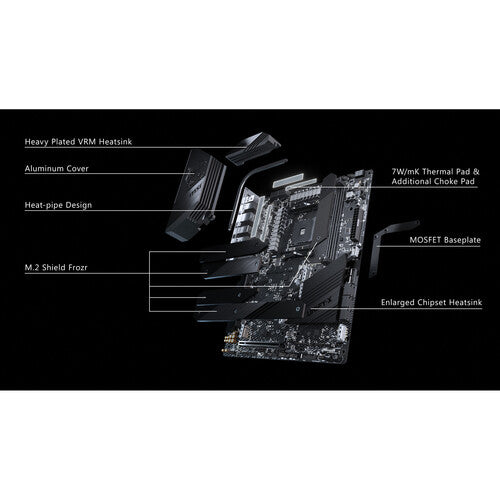

PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our RD and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed reliable products even under extreme conditions.
ENHANCED PERFORMANCE
High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge, whether you're a gamer, prosumer, or PC enthusiast.
LIGHTNING GEN 4 M.2
Utilizing 3rd Gen Ryzen processors, MSI X570S motherboards feature the latest Lightning Gen 4 M.2, the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
CONNECTIVITY
MSI motherboards are built with various connectors to satisfy gamers; enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immersing one.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

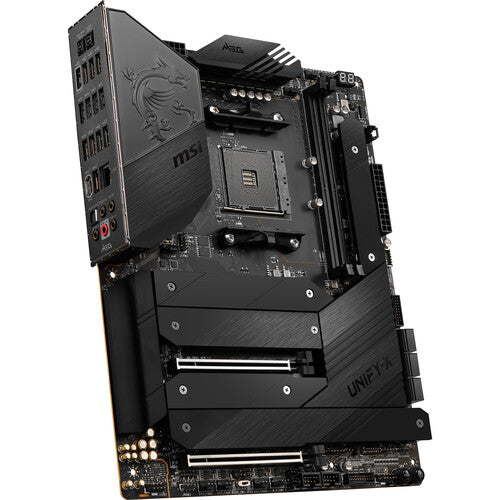

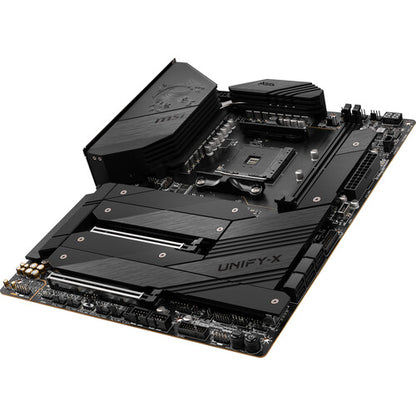

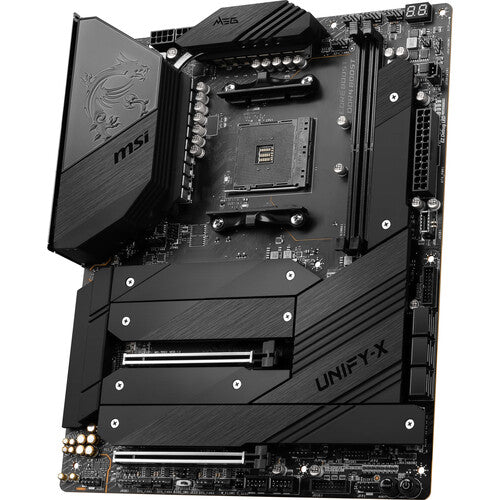

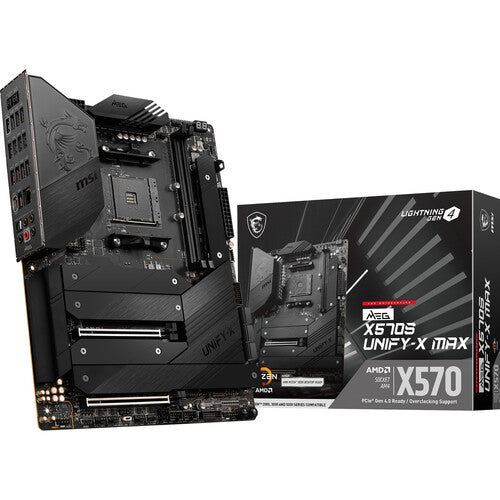

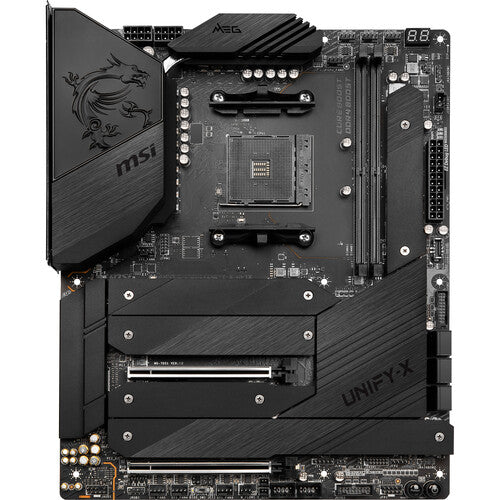

MEG X570S UNIFY-X MAX
Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, and 2000 G-Series desktop processors
Supports DDR4 Memory, Dual Channel 5300(OC) MHz+ (MAX 5800)
Sextuple M.2 Connectors: Onboard 6x M.2 connectors for maximum storage performance with Lightning Gen 4 solution. The Industry leading design maximizes bandwidth to fully utilize high-end storage devices and provides multiple configurations for demanding gamers and power users.
General Information
Manufacturer: MSI
Manufacturer Part Number: X570SUNXMAX
Brand Name: MSI
Product Line: MEG
Product Model: X570S UNIFY-X MAX
Product Name: MEG X570S UNIFY-X MAX Desktop Motherboard
Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: X570
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported: Ryzen 3 PRO
Processor Supported: Ryzen 5 Pro
Processor Supported: Ryzen 7
Processor Supported: Ryzen 7 PRO
Processor Supported: Ryzen 9
Processor Supported: Ryzen 3
Processor Supported: Ryzen 5
Multi GPU Supported: CrossFire
Memory
Number of Memory Slots: 2
Memory Form Factor: UDIMM
Memory Form Factor: DIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 1866 MHz
Memory Speed Supported: 2400 MHz
Memory Speed Supported: 2667 MHz
Memory Speed Supported: 2800 MHz
Memory Speed Supported: 2933 MHz
Memory Speed Supported: 3066 MHz
Memory Speed Supported: 3200 MHz
Memory Speed Supported: 4600 MHz
Memory Speed Supported: 5300 MHz
Memory Speed Supported: 2133 MHz
Memory Speed Supported: 3000 MHz
Memory Speed Supported: 4266 MHz
Memory Speed Supported: 5800 MHz
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0
RAID Levels: 10
RAID Levels: 1
Video
Onboard Video: No
Audio
Audio Channels: 7.1
Network & Communication
2.5Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x16 Slots: 2

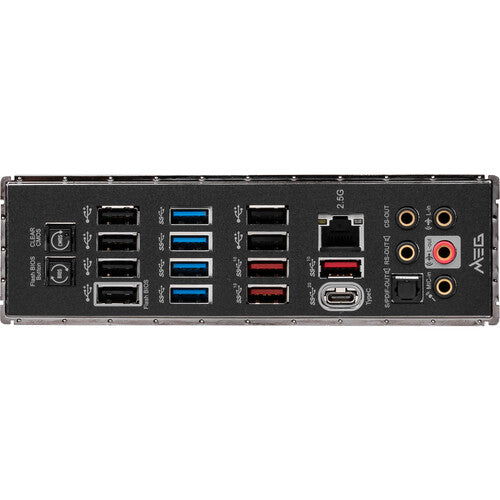

Interfaces/Ports
Total Number of USB Ports: 14
Number of USB 2.0 Ports: 6
Number of USB 3.2 Ports: 1
Number of USB 3.2 Gen 1 Ports: 4
Number of USB 3.2 Gen 2 Type-A Ports: 3
S/PDIF: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 6
Total Number of Onboard USB Ports: 9
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 5
Physical Characteristics
Form Factor: ATX
Width: 12"
Depth: 9.6"
Miscellaneous
Brand Compatibility: AMD
Country of Origin: China
Warranty
Limited Warranty: 3 Year
