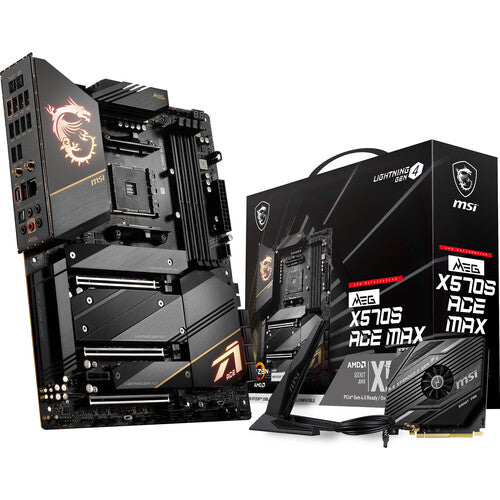

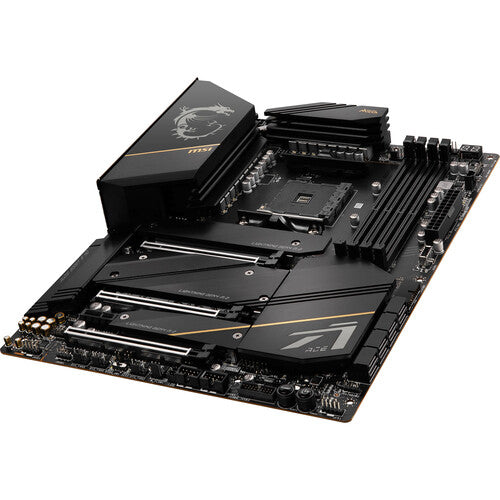

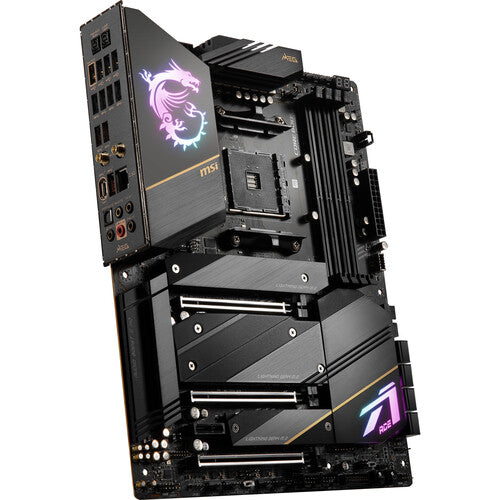

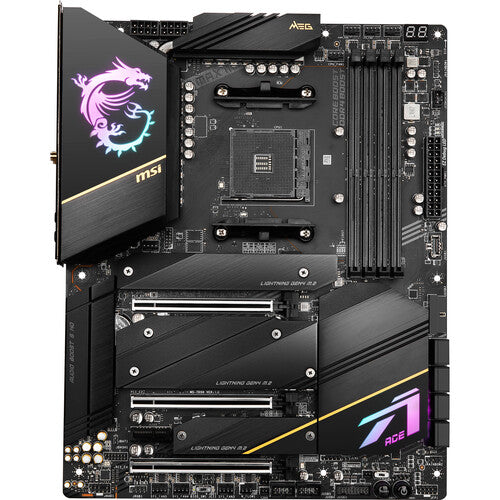

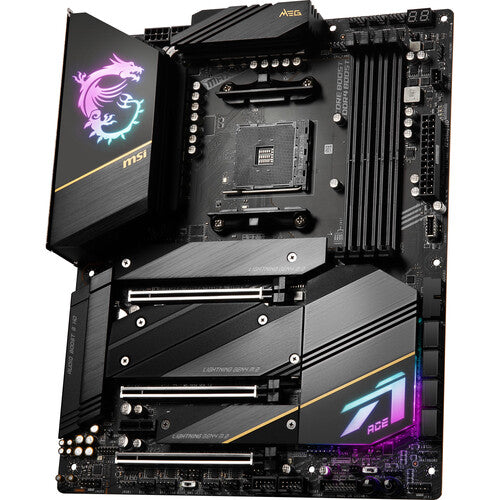

MSI MEG X570S ACE MAX AM4 ATX Motherboard

MSI MEG X570S ACE MAX AM4 ATX Motherboard

Regular price $436.99 USD
Regular price Sale price $436.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

MSI MEG X570S ACE MAX AM4 ATX Motherboard


MEG X570S ACE MAX
Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, and 2000 G-Series desktop processors
Supports DDR4 Memory, Dual Channel 5300(OC) MHz+
Extreme Power Design: Direct 16+2+1 phases with 90A Smart Power Stage and dual CPU power connectors to unleash the maximum performance.
Quadruple M.2 Connectors: Onboard 4x M.2 connectors for maximum storage performance with Lightning Gen 4 solution. The Double-sided M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.

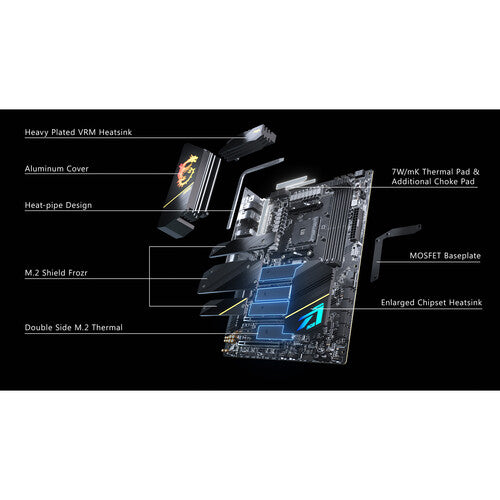

Premium Thermal Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr, and MOSFET Baseplate to ensure extreme performance with low temp.
2.5G LAN with latest Wi-Fi 6E solution: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 double-side Shield Frozr, Lightning USB 20G.
Server Grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5 HD: Ultimate audio solution with premium audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.

CPU (MAX SUPPORT)
RYZEN 9
SOCKET
AM4
CHIPSET
AMD X570 Chipset
DDR4 MEMORY
1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4866/ 5000/ 5100/ 5200/ 5300+Mhz by JEDEC and A-XMP OC MODE
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
128
PCI-E X16
3
PCI-E X1
1
SATAIII
8
M.2 SLOT
4
RAID
0/1/10
LAN
Realtek 8125B 2.5G LAN
WIFI AND BLUETOOTH
Intel Wi-Fi 6E AX210
USB 3.2 PORTS (FRONT)
1(Gen 2, Type C), 4(Gen 1, Type A)

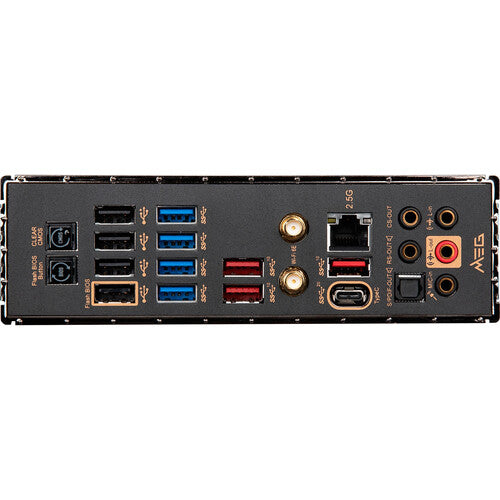

USB 3.2 PORTS (REAR)
1(Gen 2x2, Type C), 3(Gen 2, Type A), 4(Gen 1, Type A)
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
4
AUDIO PORTS (REAR)
5+ Optical S/PDIF (Realtek ALC4082 Codec + ESS SABRE9018Q2C combo DAC)
DIRECTX
12
