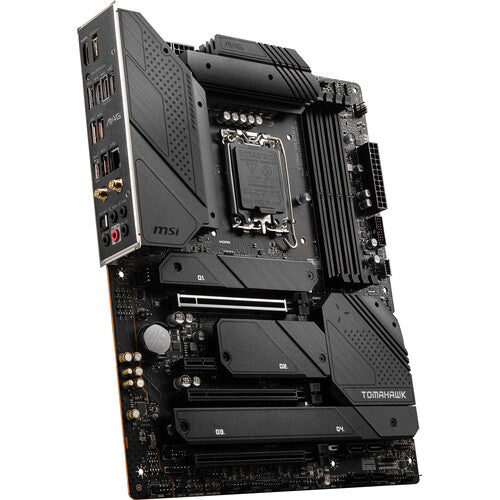

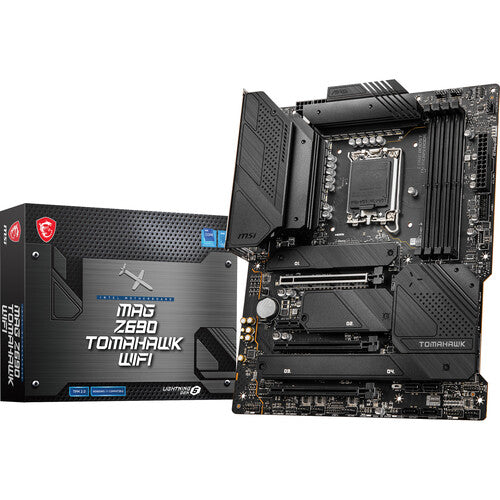

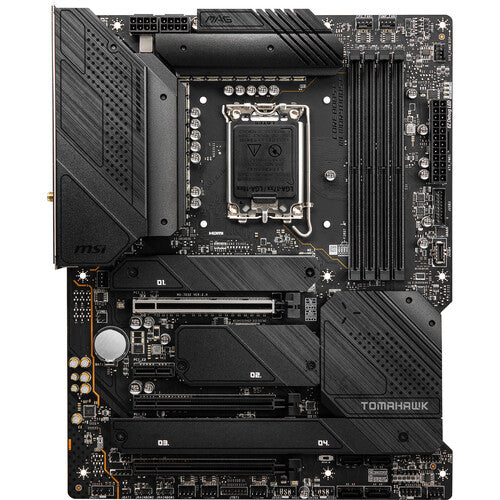

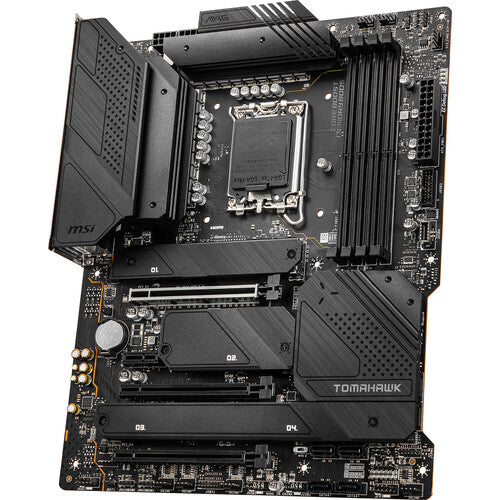

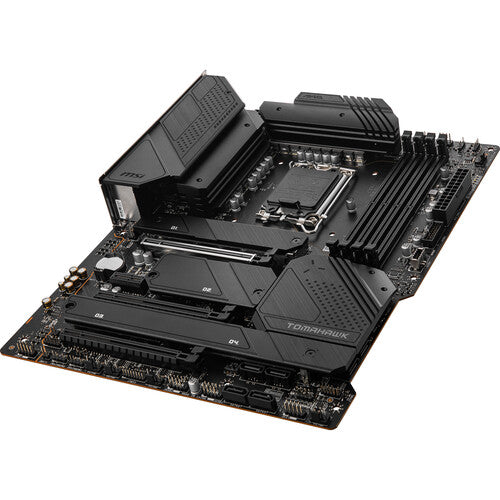

MSI MAG Z690 Tomahawk WiFi ATX Motherboard

MSI MAG Z690 TOMAHAWK WIFI ATX Motherboard

PREMIUM HARDWARE DESIGN

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

DIY 2.0 - INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

SPECIFICATIONS

CPU (MAX SUPPORT)
i9

SOCKET
1700

CHIPSET
Intel Z690 Chipset

DDR5 MEMORY
6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz

MEMORY CHANNEL
Dual

DIMM SLOTS
4

MAX MEMORY (GB)
128

PCI-E X16
3

PCI-E X1
1

SATAIII
6

M.2 SLOT
4

RAID
0/1/5/10

LAN
1x Intel I225-V 2.5G LAN

WIFI AND BLUETOOTH
Intel Wi-Fi 6E module

USB 3.2 PORTS (FRONT)
1(Gen 2, Type C), 2(Gen 1, Type A)

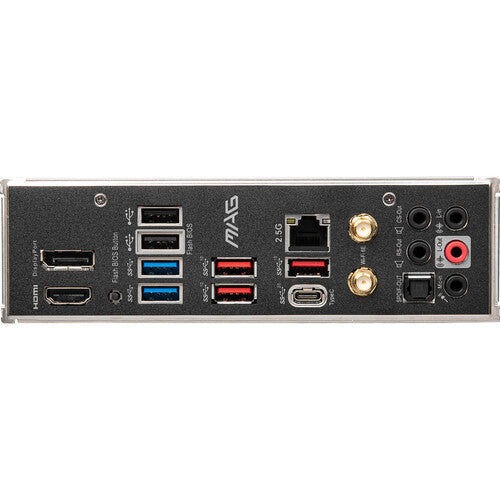

USB 3.2 PORTS (REAR)
1(Gen 2x2, Type C), 3(Gen 2, Type A), 2(Gen 1, Type A)

USB 2.0 PORTS (FRONT)
4

USB 2.0 PORTS (REAR)
2

AUDIO PORTS (REAR)
5+ Optical S/PDIF (Realtek ALC4080 Codec)

DISPLAYPORT
1
