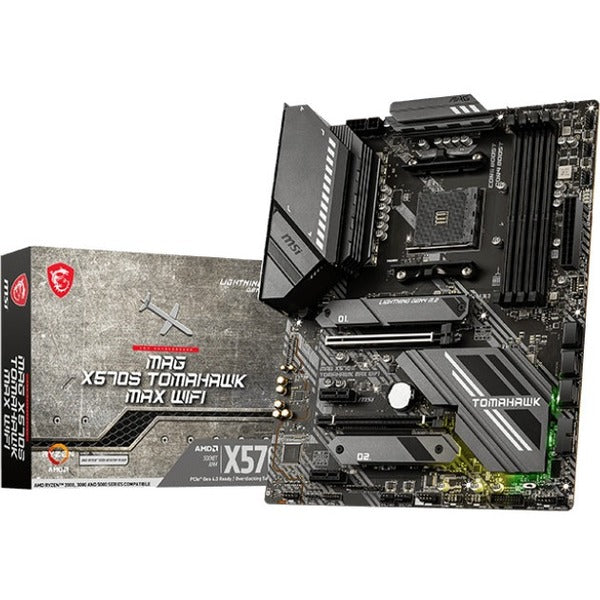

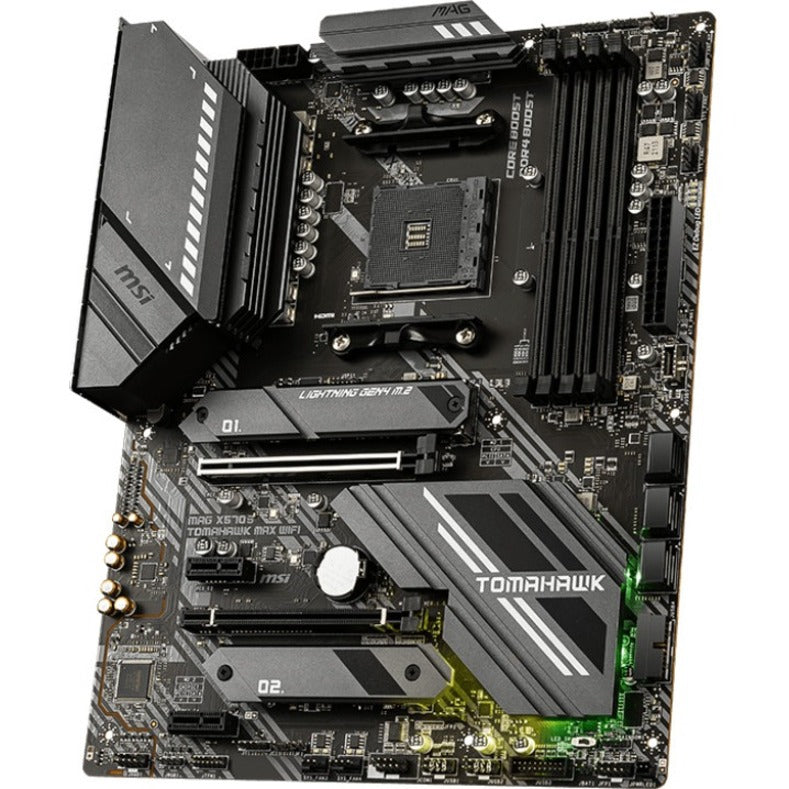

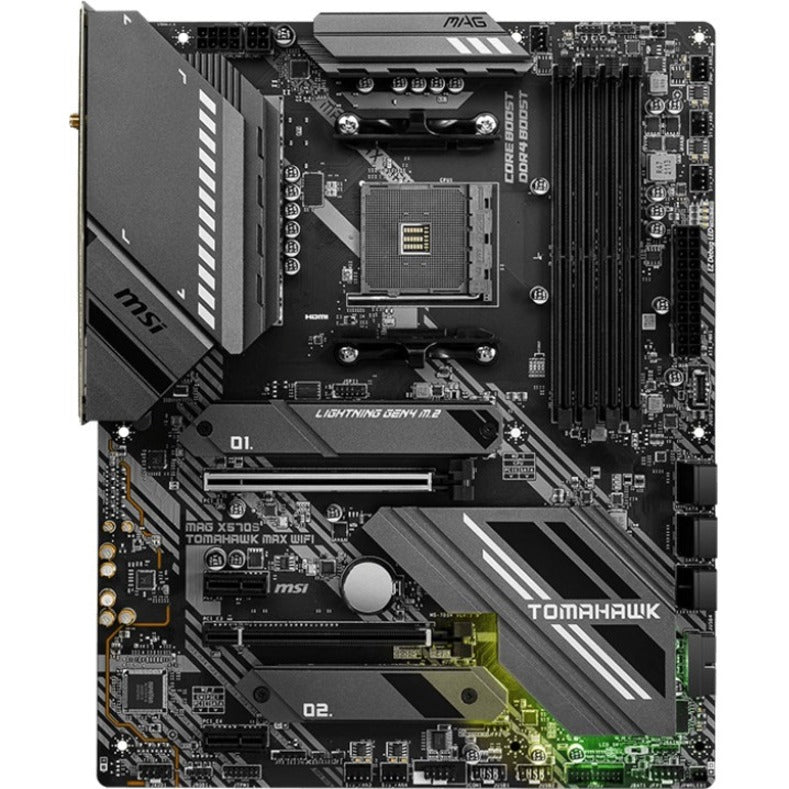

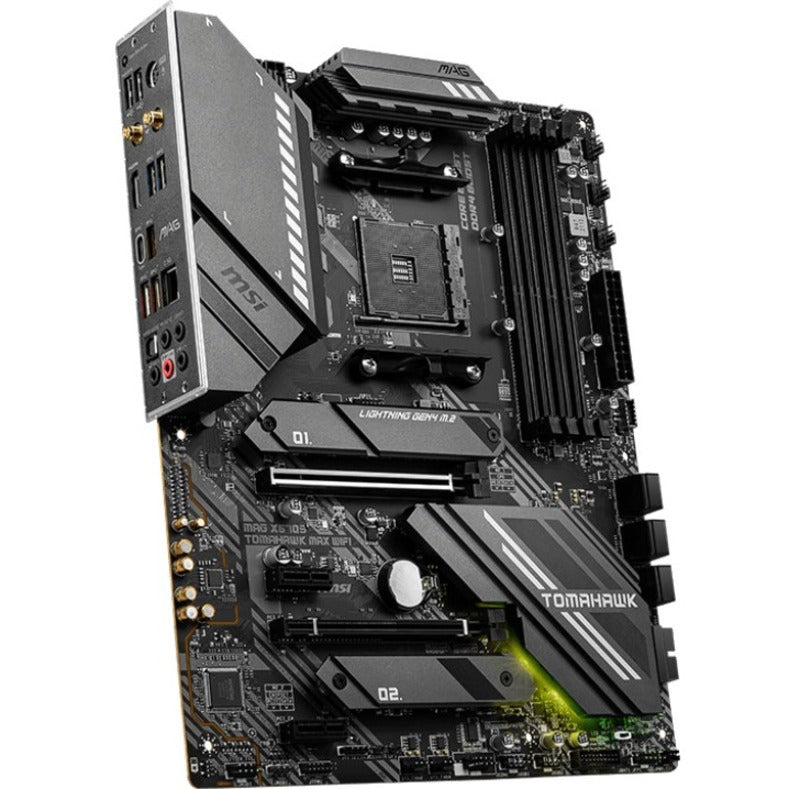

MSI MAG X570S Tomahawk Max WIFI ATX Motherboard

MSI MAG X570S TOMAHAWK MAX WIFI ATX Motherboard WIFI 6

PREMIUM HARDWARE DESIGN

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

M.2 SHIELD FROZR

World's fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores' processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked 'keep-out-zone' allows for easy and safe installation and a perfect fit.

ENHANCED PERFORMANCE

High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you're a gamer, prosumer, or PC enthusiast.

LIGHTNING GEN 4 M.2

Utilizing AMD Ryzen 5000 series processors, MSI X570S motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

FAST AND FUTURE-READY STORAGE

MSI X570S motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

CONNECTIVITY

MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.

OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

MSI LAN MANAGER

- Automatically prioritizes games above other applications -

- Allows you to change applications' traffic priority -

- Allows you to customize bandwidth for each application -

General Information

Manufacturer:   MSI

Manufacturer Part Number:   X570STMHWIFI

Brand Name:   MSI

Product Line:   MAG

Product Model:   X570S TOMAHAWK MAX WIFI

Product Name:   MAG X570S TOMAHAWK MAX WIFI Desktop Motherboard

Product Type:   Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:   AMD

Chipset Model:   X570

Total Processor Supported:   1

Processor Socket:   Socket AM4

Processor Supported:   Ryzen 3 PRO

Processor Supported:   Ryzen 5

Processor Supported:   Ryzen 5 Pro

Processor Supported:   Ryzen 7

Processor Supported:   Ryzen 3

Processor Supported:   Ryzen 7 PRO

Processor Supported:   Ryzen 9

Multi GPU Supported:   CrossFire

Memory

Number of Memory Slots:   4

Memory Form Factor:   UDIMM

Memory Form Factor:   DIMM

Maximum Memory Supported:   128 GB

Memory Technology:   DDR4 SDRAM

Memory Speed Supported:   2133 MHz

Memory Speed Supported:   2400 MHz

Memory Speed Supported:   3066 MHz

Memory Speed Supported:   3200 MHz

Memory Speed Supported:   3600 MHz

Memory Speed Supported:   3733 MHz

Memory Speed Supported:   3866 MHz

Memory Speed Supported:   4400 MHz

Memory Speed Supported:   4533 MHz

Memory Speed Supported:   4600 MHz

Memory Speed Supported:   4733 MHz

Memory Speed Supported:   1866 MHz

Memory Speed Supported:   2667 MHz

Memory Speed Supported:   2800 MHz

Memory Speed Supported:   2933 MHz

Memory Speed Supported:   3000 MHz

Memory Speed Supported:   3466 MHz

Memory Speed Supported:   4000 MHz

Memory Speed Supported:   4133 MHz

Memory Speed Supported:   4266 MHz

Memory Speed Supported:   4866 MHz

Memory Speed Supported:   5000 MHz

Memory Speed Supported:   5100 MHz

I/O Controller

Controller Type:   Serial ATA/600

RAID Supported:   Yes

RAID Levels:   0

RAID Levels:   1

RAID Levels:   10

Video

Onboard Video:   CPU Dependent Video

Audio

Audio Channels:   7.1

Network & Communication

Bluetooth:   Yes

2.5Gigabit Ethernet:   Yes

Wireless LAN:   Yes

Wireless LAN Standard:   IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions

Number of Total Expansion Slots:   4

Total Number of PCI Express Slots:   4

Number of PCI Express x1 Slots:   2

Number of PCI Express x16 Slots:   2

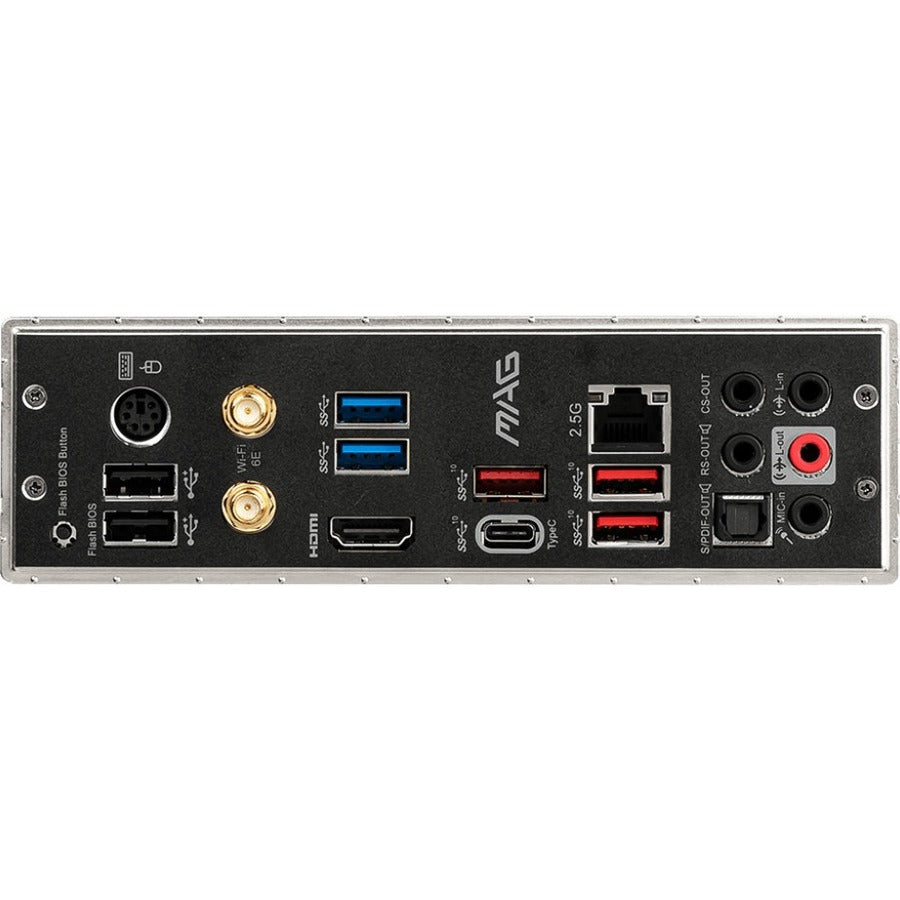

Interfaces/Ports

Total Number of USB Ports:   8

Number of USB 2.0 Ports:   2

Number of USB 3.2 Ports:   1

Number of USB 3.2 Gen 1 Ports:   2

Number of USB 3.2 Gen 2 Type-A Ports:   3

S/PDIF:   Yes

HDMI:   Yes

Number of Network (RJ-45) Ports:   1

Onboard Interfaces

Number of SATA Interfaces:   6

Number of M.2 Interfaces:   2

Total Number of Onboard USB Ports:   9

Number of Onboard USB 2.0 Ports:   4

Number of Onboard USB 3.2 Ports:   5

Physical Characteristics

Form Factor:   ATX

Width:   12"

Depth:   9.6"

Miscellaneous

Brand Compatibility:   AMD

Country of Origin:   China

Warranty

Limited Warranty:   3 Year
