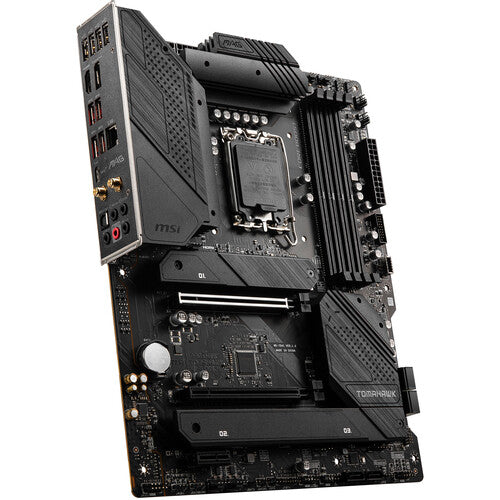

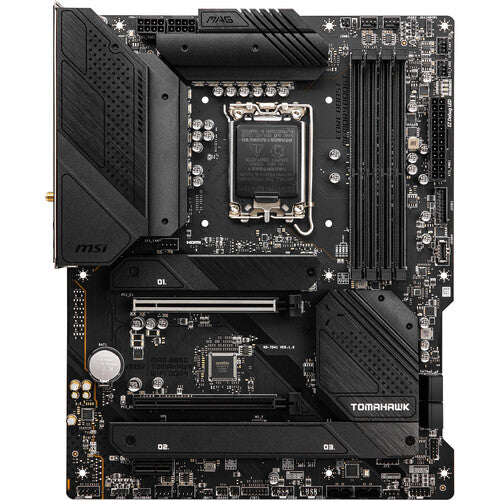

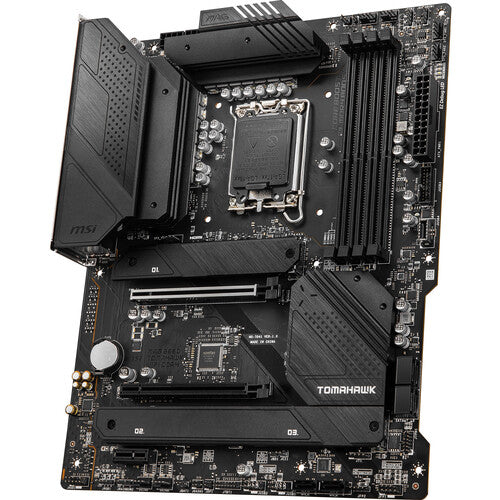

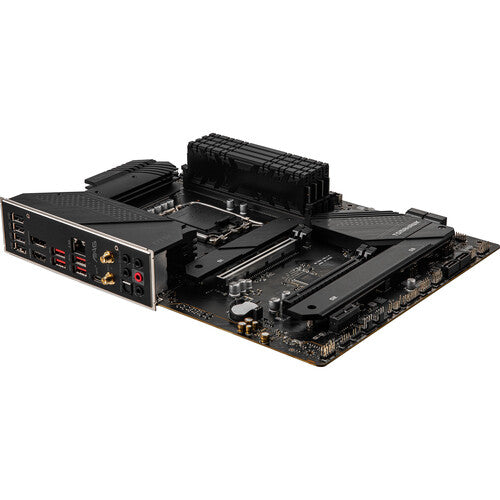

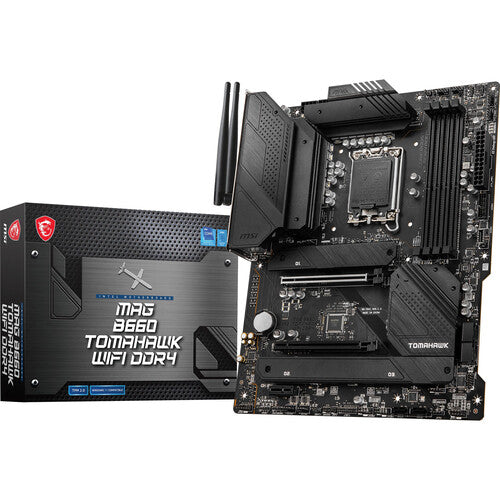

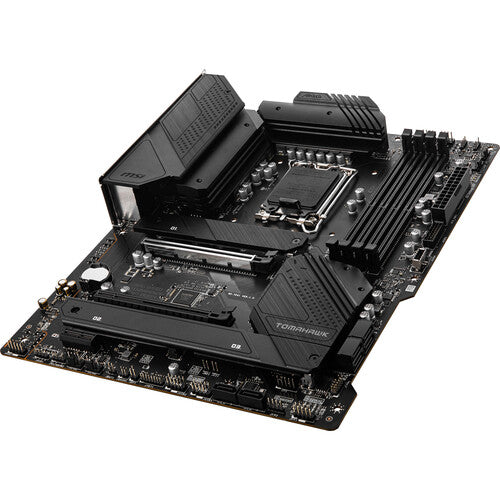

MSI MAG B660 Tomahawk WiFi LGA 1700 ATX Motherboard
MSI MAG B660 Tomahawk WiFi LGA 1700 ATX Motherboard
Couldn't load pickup availability
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
LIGHTNING GEN 4 M.2
Utilizing 12th Gen Intel processors, MSI B660 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
CPU (MAX SUPPORT)
i9
SOCKET
1700
CHIPSET
Intel B660 Chipset
DDR4 MEMORY
4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
128
PCI-E X16
2
SATAIII
6
PCI-E X1
1
M.2 SLOT
3
RAID
0/1/5/10
LAN
1x Realtek 8125BG 2.5G LAN
USB 3.2 PORTS (FRONT)
1(Gen 2, Type C), 1(Gen 1, Type A)

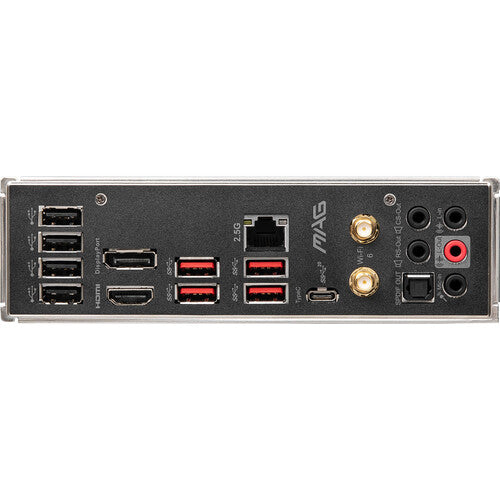

USB 3.2 PORTS (REAR)
1(Gen 2x2, Type C), 4(Gen 2, Type A)
WIFI and BLUETOOTH
Intel Wi-Fi 6 module
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
4
AUDIO PORTS (REAR)
Realtek ALC1220P Codec
DISPLAYPORT
1
