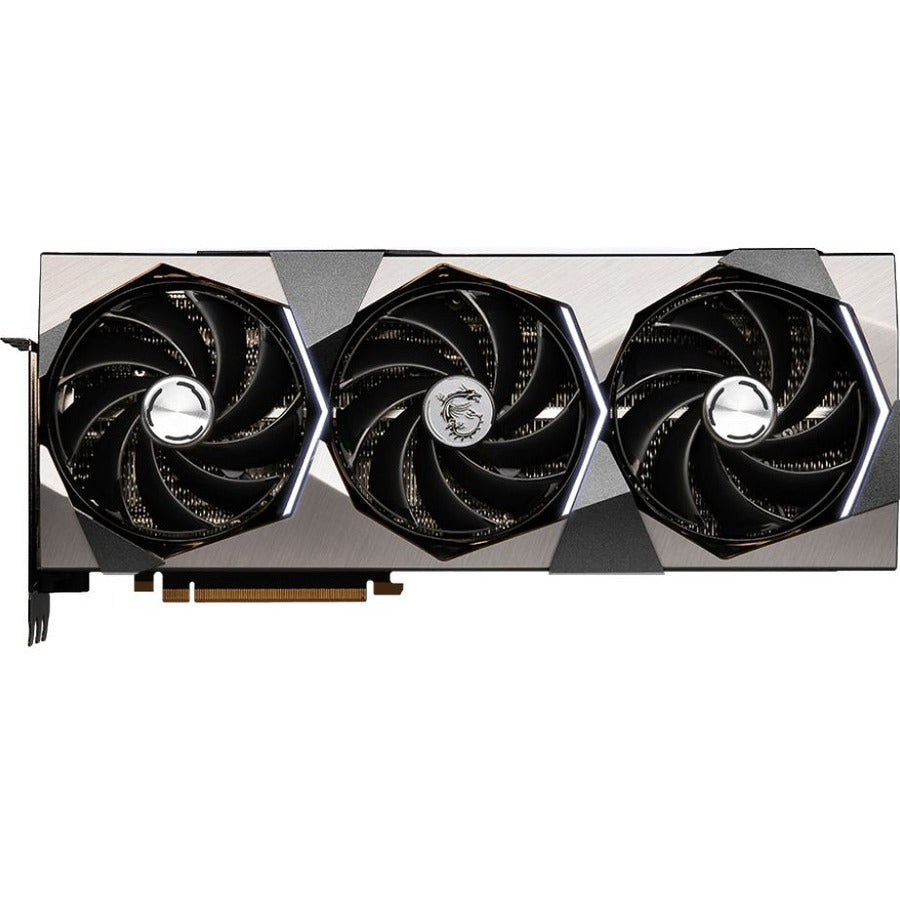

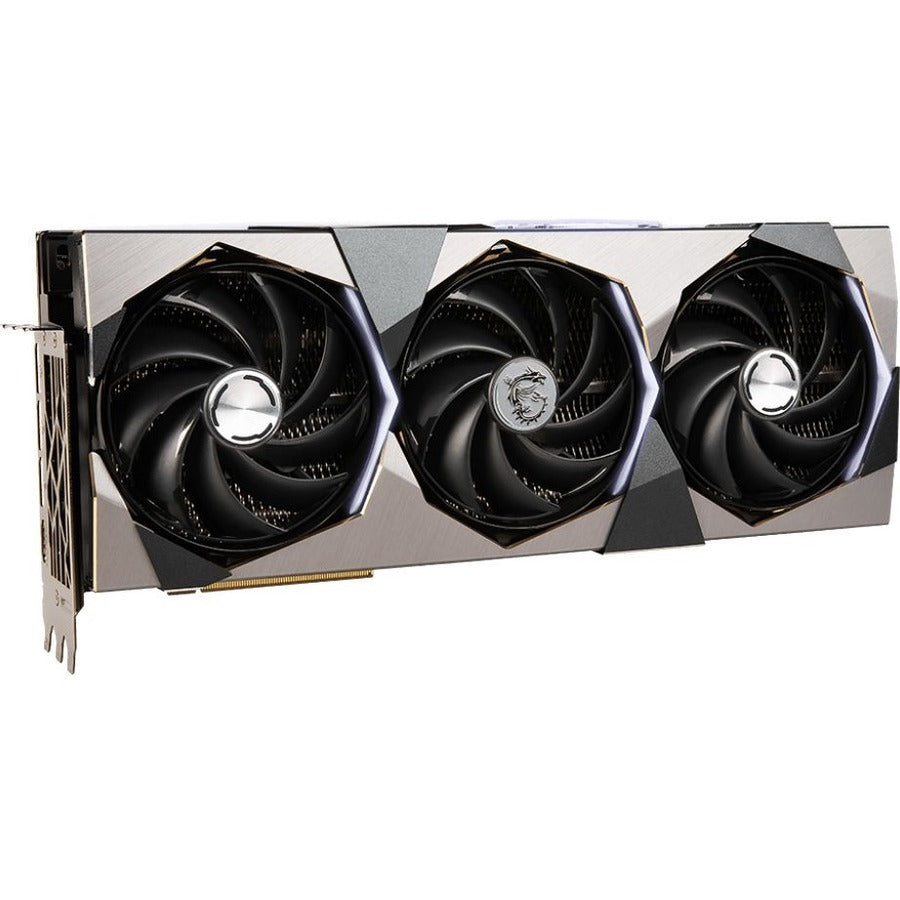

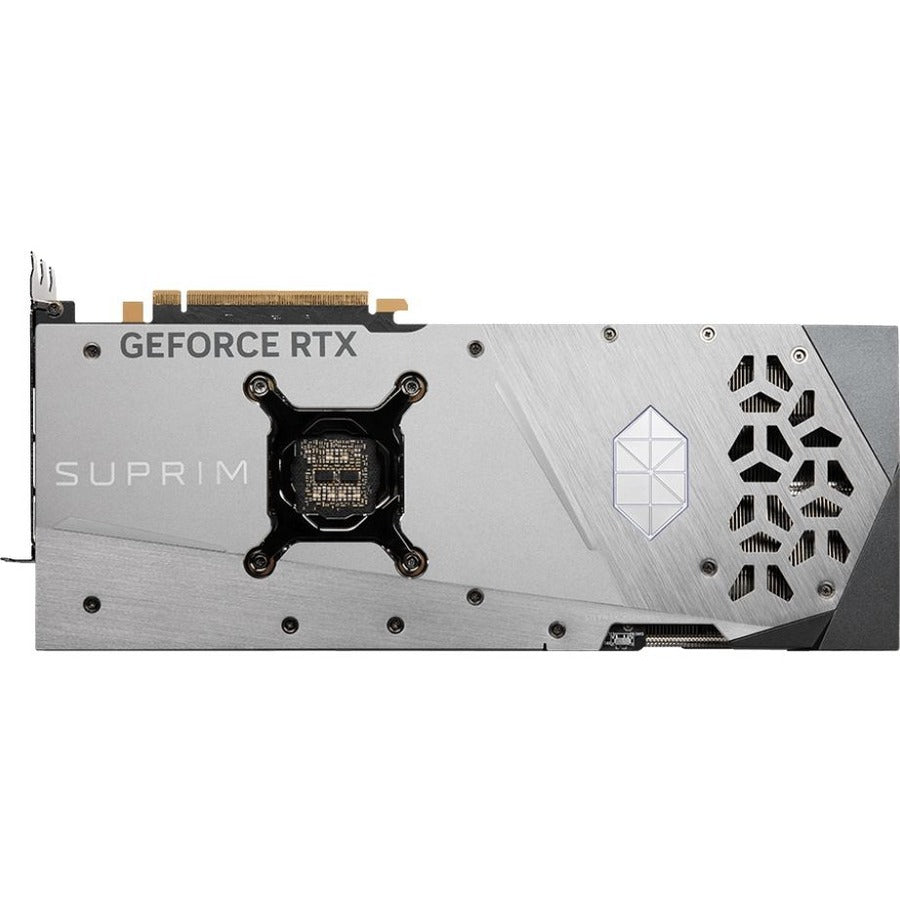

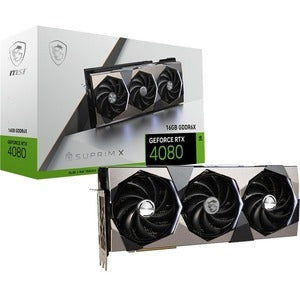

MSI GeForce RTX 4080 Suprim X 16GB GDDR6X Graphics Card
The NVIDIA® GeForce RTX™ 4080 delivers the ultra performance and features that enthusiast gamers and creators demand. Bring your games and creative projects to life with ray tracing and AI-powered graphics. It's powered by the ultra-efficient NVIDIA Ada Lovelace architecture and up to 16GB of superfast G6X memory.
- Extreme Performance: 2640 MHz (MSI Center)
- Boost: 2625 MHz (GAMING & SILENT Mode)
- Memory Speed 22.4 Gbps
- 16GB GDDR6X

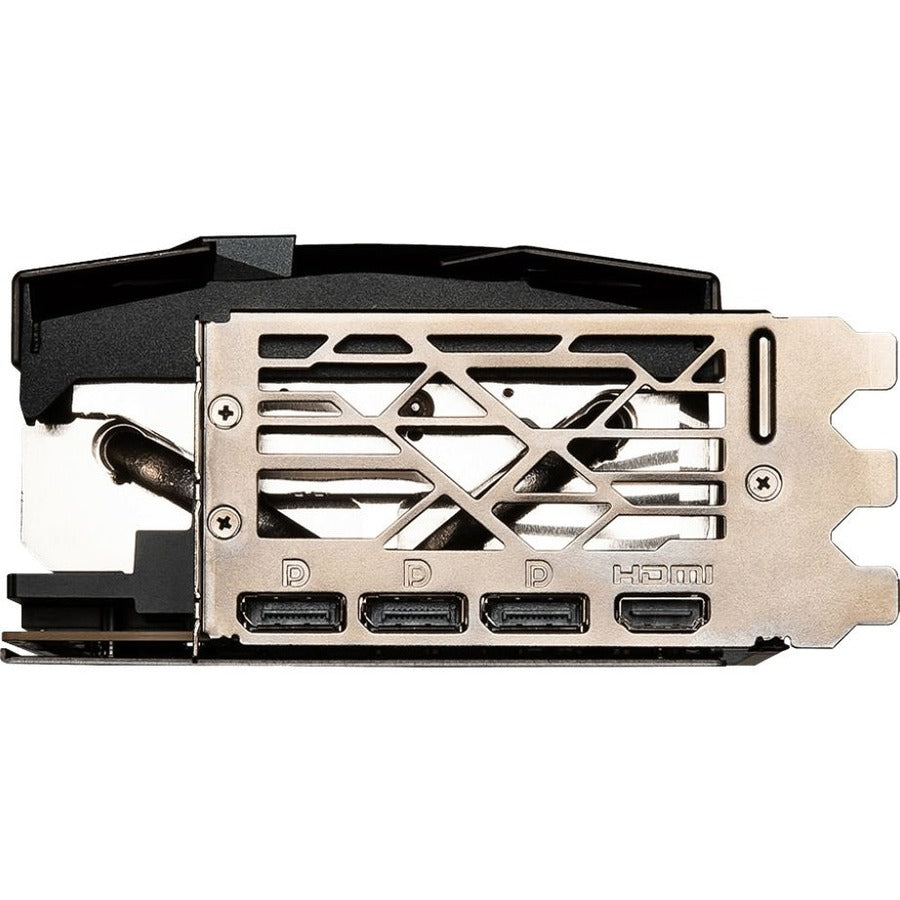

- DisplayPort x 3 (v1.4a)
- HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
VAPOR CHAMBER: The GPU and memory modules are covered with a Vapor Chamber which rapidly transfers heat to Core Pipes.
Core Pipe: Precision-machined heat pipes ensure max contact to the GPU baseplate and spread heat along the full length of the heatsink.
Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
MSI Center - The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Mystic Light - Controls lighting for both MSI and compatible third-party RGB products.
Product Overview
UPC Code: 824142306338
Manufacturer Warranty: 3 Year
D&H Returns Allowed: yes
Return Period (Days): 40
Add'l Return Info: Past Exch-Call MSI 626-913-0828 x159
Master Pack Qty: 2
Country of Origin: CHINA
General Information
Manufacturer: MSI
Manufacturer Part Number: G408016SX
Manufacturer Website Address: www.msi.com
Brand Name: MSI
Product Line: SUPRIM X
Product Name: GeForce RTX 4080 16GB SUPRIM X Graphic Card
Product Type: Graphic Card
Technical Information
API Supported: OpenGL 4.6
API Supported: DirectX 12 Ultimate
Number of Monitors Supported: 4
Maximum Digital Display Resolution: 7680 x 4320
CUDA Cores: 9728
Processor & Chipset
Chipset Manufacturer: NVIDIA
Chipset Line: GeForce
Chipset Series: RTX
Chipset Model: RTX 4080
GPU Boost Clock: 2.64 GHz
Memory
Standard Memory: 16 GB
Memory Technology: GDDR6X
Bus Width: 256 bit
Interfaces/Ports
Host Interface: PCI Express 4.0
DisplayPort: Yes
Number of DisplayPort Outputs: 3
HDMI: Yes
Number of HDMI Outputs: 1
Power Description
Power Supply Wattage: 750 W
Power Connector: 1x 16-pin
Physical Characteristics
Form Factor: Plug-in Card
Cooler Type: Fan Cooler
Height: 3.1"
Width: 5.6"
Length: 13.2"
Weight (Approximate): 5.21 lb
Miscellaneous
Platform Supported: PC
Country of Origin: China
Warranty
Limited Warranty: 3 Year
