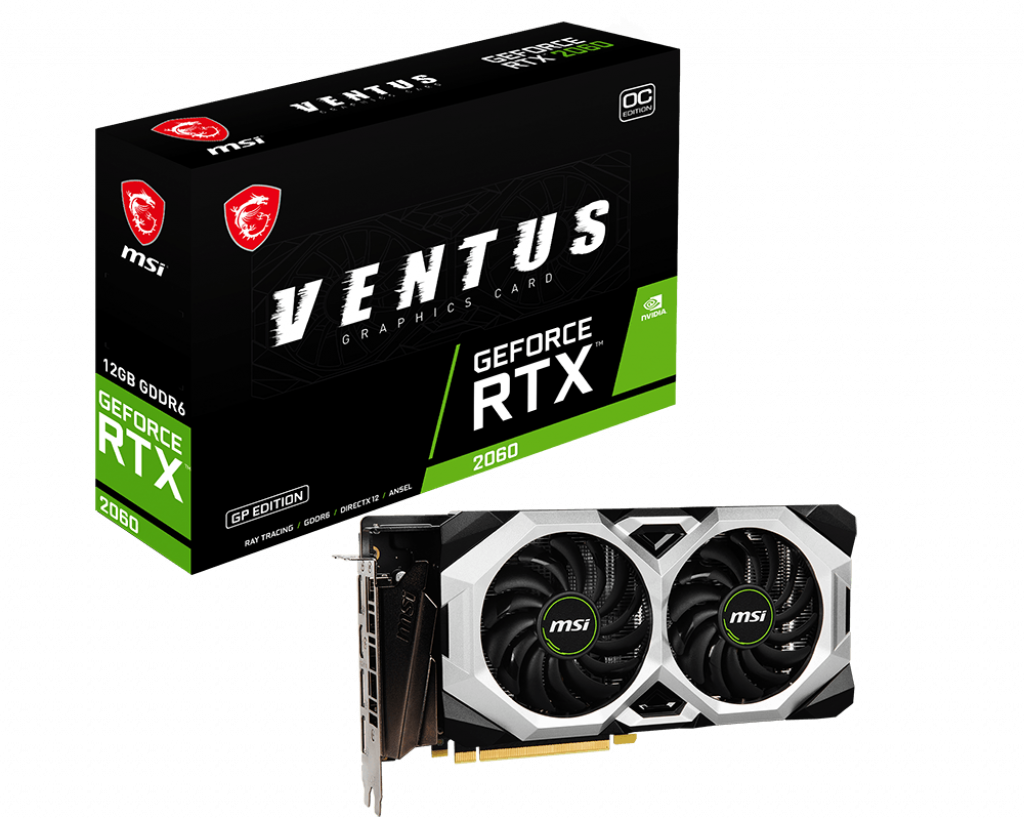

MSI GeForce RTX 2060 VENTUS GP OC 12GB GDDR6 Graphics Card

Core/Memory

• Boost Clock / Memory Speed

1695 MHz / 14 Gbps

• 12GB GDDR6

• DisplayPort x 3(v1.4a)

HDMI x 1(Supports 4K@60Hz as specified in HDMI 2.0b)

TORX Fan 2.0

• Dispersion fan blade: Steep curved blade accelerating the airflow

• Traditional fan blade: Provides steady airflow to massive heat sink below

Afterburner Overclocking Utility

• OC Scanner: An automated function finds the highest stable overclock settings.

• Kombustor: The latest DirectX versions benchmark supporting.

• Predator: In-game video recording.

NVIDIA G-SYNC™ and HDR

• Get smooth, tear-free gameplay at refresh rates up to 240 Hz, plus HDR, and more. This is the ultimate gaming display and the go-to equipment for enthusiast gamers.

GeForce RTX™ VR

• By combining advanced VR rendering, real-time ray tracing, and AI, GeForce RTX will take VR to a new level of realism.


NVIDIA Turing™ Architecture

This revolutionary architecture, combined with our all-new GeForce RTX™ platform, fuses together real-time ray tracing, artificial intelligence, and programmable shading. You’ve never created and enjoyed games like this before.


Real-Time Ray Tracing In Games

Ray tracing is the definitive solution for lifelike lighting, reflections, and shadows, offering a level of realism far beyond what’s possible using traditional rendering techniques. NVIDIA Turing™ is the first GPU capable of real-time ray tracing.

MODEL NAME
GeForce RTX^TM 2060 VENTUS GP 12G OC
GRAPHICS PROCESSING UNIT
NVIDIA GeForce RTX^TM 2060
INTERFACE
PCI Express x16 3.0
CORES
2176 Units
CORE CLOCKS
Boost: 1695 MHz
MEMORY SPEED
14 Gbps
MEMORY
12GB GDDR6
MEMORY BUS
192-bit
OUTPUT
DisplayPort x 3 (v1.4a)
HDMI x 1(Supports 4K at 60Hz as specified in HDMI 2.0b)
HDCP SUPPORT
Y
POWER CONSUMPTION
184 W
POWER CONNECTORS
8-pin x1 / 6-pin x1
RECOMMENDED PSU (W)
500 W
DIRECTX VERSION SUPPORT
12 API
OPENGL VERSION SUPPORT
4.6
MAXIMUM DISPLAYS
4
VR READY
Y
G-SYNC^TM TECHNOLOGY
Y
ADAPTIVE VERTICAL SYNC
Y
DIGITAL MAXIMUM RESOLUTION
7680 x 4320
