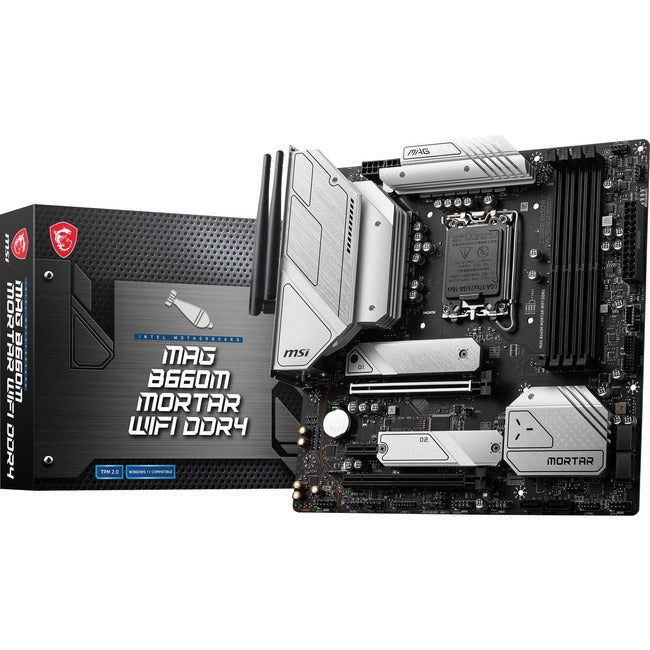

MSI B660MMOD4 MAG B660M MORTAR WIFI DDR4 B660 Socket1700 Max128GB DDR4 mATX Motherboard
MSI B660MMOD4 MAG B660M MORTAR WIFI DDR4 B660 Socket1700 Max128GB DDR4 mATX Motherboard
Regular price
$231.99 USD
Regular price
Sale price
$231.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
12 + 1 +1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings. CPU (MAX SUPPORT)
i9
SOCKET
1700
CHIPSET
Intel B660 Chipset
DDR4 MEMORY
4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
128
PCI-E X16
2
PCI-E X1
1
SATAIII
6
M.2 SLOT
2
RAID
0/1/5/10
LAN
1x Realtek 8125BG 2.5G LAN
WIFI and BLUETOOTH
Intel Wi-Fi 6 module
USB 3.2 PORTS (FRONT)
1(Gen 2, Type C), 2(Gen 1, Type A)
USB 3.2 PORTS (REAR)
1(Gen 2x2, Type C), 3(Gen 2, Type A)
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
4
AUDIO PORTS (REAR)
Realtek ALC1200 Codec
DISPLAYPORT
1
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
12 + 1 +1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings. CPU (MAX SUPPORT)
i9
SOCKET
1700
CHIPSET
Intel B660 Chipset
DDR4 MEMORY
4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
128
PCI-E X16
2
PCI-E X1
1
SATAIII
6
M.2 SLOT
2
RAID
0/1/5/10
LAN
1x Realtek 8125BG 2.5G LAN
WIFI and BLUETOOTH
Intel Wi-Fi 6 module
USB 3.2 PORTS (FRONT)
1(Gen 2, Type C), 2(Gen 1, Type A)
USB 3.2 PORTS (REAR)
1(Gen 2x2, Type C), 3(Gen 2, Type A)
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
4
AUDIO PORTS (REAR)
Realtek ALC1200 Codec
DISPLAYPORT
1
