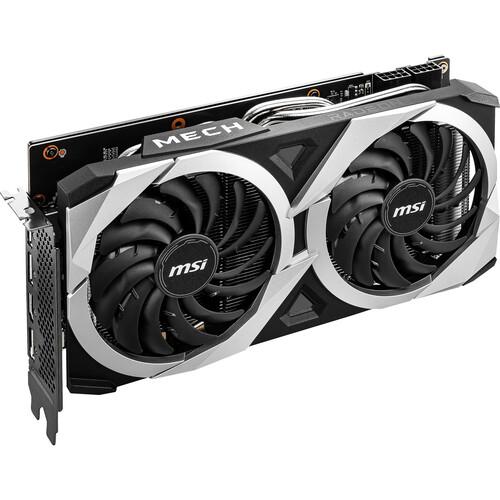

MSI AMD Radeon RX 6700 XT MECH 2X 12GB GDDR6

Radeon RX 6000 MECH SERIES
ARM YOURSELF FOR THE FINAL BLOW
MECH brings a performance-focused design that maintains the essentials to accomplish any task at hand.
Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
BACKPLATE
A clean-looking brushed-finish backplate reinforces the length of the card.
DUAL FAN DESIGN

TORX FAN 3.0
The award-winning MSI TORX Fan 3.0 design keeps the limits of thermal performance turning. Fan blades alternate between traditional blades and dispersion blades that focus and accelerate airflow into the heatsink.
ZERO FROZR
CHILLINGLY SILENT
Zero Frozr is the calm before the storm. The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is unneeded. The fans will automatically start spinning again when the heat is on during gaming .
THERMAL PADDING
Ample amounts of thermal pads allow various board components to transfer heat directly to the heatsink for better cooling. MODEL NAME
RX 6700 XT MECH 2X 12G
GRAPHICS PROCESSING UNIT
Radeon RX 6700 XT
INTERFACE
PCI Express Gen 4
CORES
2560 Units
CORE CLOCKS
Boost: Up to 2581 MHz / Game: Up to 2424 MHz
MEMORY SPEED
16 Gbps
MEMORY
12GB GDDR6
MEMORY BUS
192-bit
OUTPUT
DisplayPort x 3 (v1.4) / HDMI x 1 (Supports 4K120Hz/8K60Hz and VRR as specified in HDMI 2.1)
HDCP SUPPORT
Y
POWER CONSUMPTION
230 W
POWER CONNECTORS
8-pin x 2
RECOMMENDED PSU
650 W
DIRECTX VERSION SUPPORT
12 API
OPENGL VERSION SUPPORT
4.6
MULTI-GPU TECHNOLOGY
Y
AFTERBURNER OC
Y
MAXIMUM DISPLAYS
4
VR READY
Y
DIGITAL MAXIMUM RESOLUTION
7680 x 4320
