Lian-Li Q58W3 Q58 Mini-ITX White Case

Lian-Li Q58W3 Q58 Mini-ITX  White Case

• Mini-ITX Aluminum Chassis

• Features swappable hinged glass and mesh panels

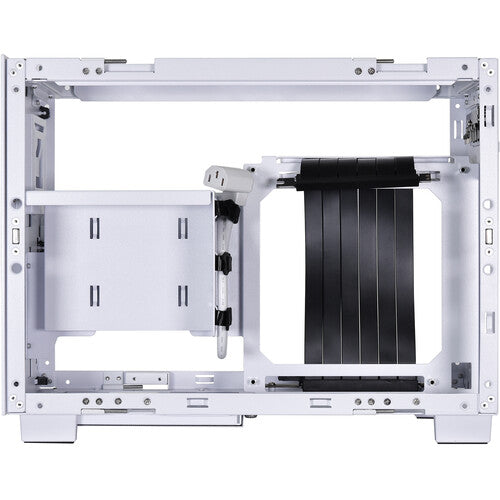

• Included PCIe 3.0 or PCIe 4.0 riser cable for vertically mounted GPU

• Supports SFX PSU and up to 160mm long ATX PSU

• Supports up to 325mm long radiator in certain circumstances

• Supports 4 storage drive mounting locations

• Cable management friendly with tie points and included LED/ fan hub


SWAPPABLE HINGE PANELS

The dual side split hinged panels feature two 3.0mm thick tempered glass panels and two 1.0mm fine mesh panels that are swappable.


MODULAR DESIGN FOR SFX/ATX POWER SUPPLY

Compatible for both SFX and ATX PSU, the Q58 comes with an additional bracket to transform from SFX PSU mode to ATX PSU mode.


DETAILS MAKE PERFECTION

BUILD LIKE A PRO – AVOID GLASS DAMAGES

The hinged glass panel features a curve hole at the rear, which allows opening of the panel without removing the thumbscrew, and helps avoid any possible damage caused to the glass by preventing it from leaning on the table.


EFFORTLESS CONNECTION – INCLUDED LED/ FAN HUB

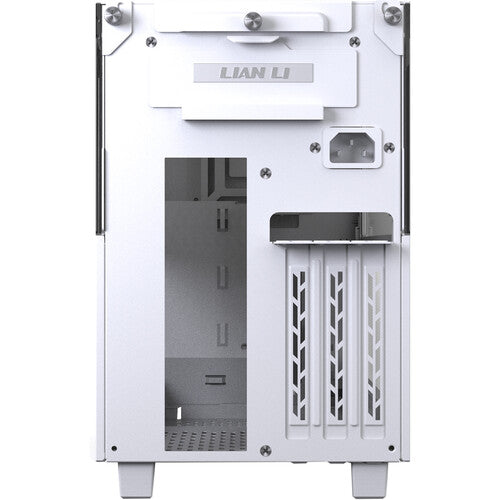

Flip the LIAN LI logo plate at the rear to access the LED/fan hub that supports 3 PWM fan headers and 3 LED headers ( 5V 3 Pin ARGB) without dealing with cable clutter.

PRODUCT NAME
LIAN LI Q58

COLOR
White

RISER CABLE GENERATION
PCIe3.0

MATERIALS
Aluminum Exterior
SPCC Steel Interior
3.0mm tinted tempered glass side panels

MOTHERBOARD SUPPORT
Mini-ITX

FAN SUPPORT
SFX PSU Mode :
Top : 2x 120mm or 2x 140mm
Bottom : 1x 120mm
ATX PSU Mode :
Top : 1x 120mm or 1x 140mm
Bottom : 1x 120mm

RADIATOR SUPPORT
SFX PSU Mode :
Top : 1x 240mm or 280mm
(Max length 315mm, or max 325mm if remove front SSD tray)
Bottom : 1x 120mm
ATX PSU Mode :
Top : 1x 120mm
Bottom : 1x 120mm

PSU SUPPORT
SFX/SFX-L/ATX (max length 160mm)

GPU LENGTH CLEARANCE
Max 320mm

CPU COOLER CLEARANCE
Max 67mm

DRIVE SUPPORT
SFX PSU Mode :
4x 2.5" SSD or 3x 2.5" SSD + 1x 3.5" HDD
ATX PSU Mode :
2x 2.5" SSD

EXPANSION SLOT
3

I/O PORTS
1x USB 3.0, 1x USB 3.1 TYPE-C, 1x HD AUDIO

DUST FILTER

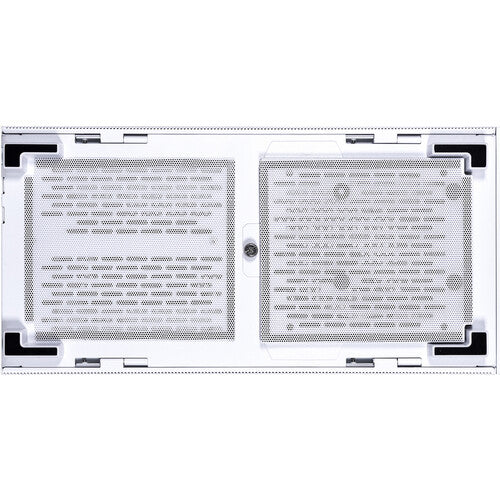

2 x bottom magnetic

Item Dimension (L inchxW inchxH inch)
18 x 10 x 17

Weight
23.00 lb

Warranty Information
1 year
