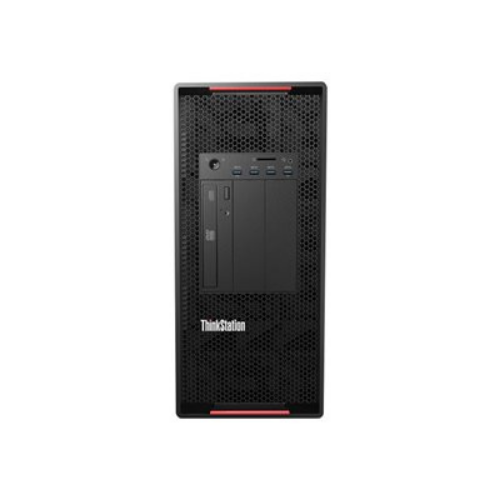

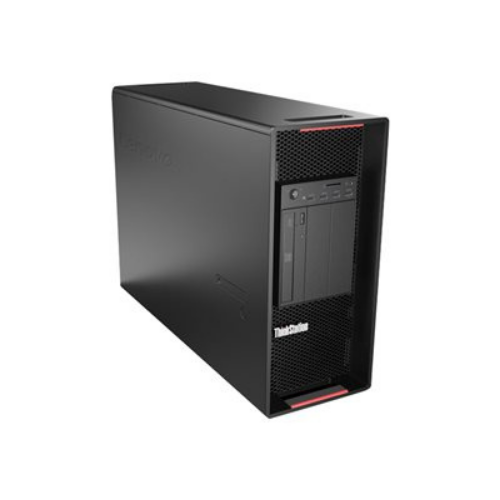

Lenovo ThinkStation P920 30BC007HUS Tower Workstation

ThinkStation P920, Intel Xeon 4214R (3.5GHz, 16.5MB), Windows 11 Pro 64 for Workstation, 16.0GB, 1x512GB SSD M.2 2280 PCIe, 3YR Premier NBD

Workstation desktop built for extreme performance. Powered by up to dual Intel Xeon processors/ Three NVIDIA professional GPUs/ The most I/O in the industry. Perfect for running large intensive apps.

CONNECTIVITY

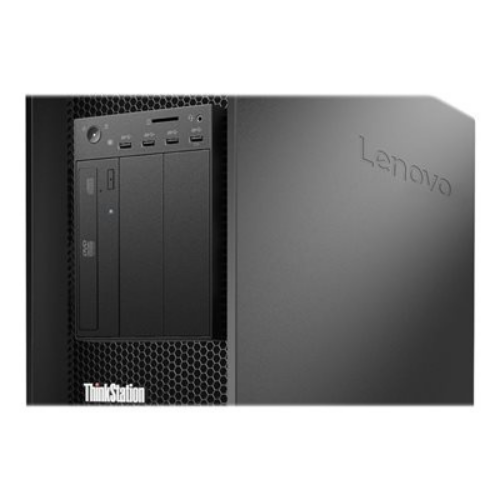

Front Ports

(4) USB 3.1 Gen 1 (Type A)

(1) Microphone

(1) Headphone

Rear Ports

(4) USB 3.1 Gen 1 (Type A)

(2) USB 2.0

(1) Serial2

(1) Parallel2

(2) PS/2

(2) Ethernet

(1) Audio Line-In

(1) Audio Line-Out

(1) Microphone-In

(1) eSATA2

(1) Firewire2

WiFi2

Intel® Wireless – N 7260 AC

802.11 ac, 2 x 2, 2.4GHz /

5GHz + Bluetooth® 4.0

Removable Storage

(1) 15-in-1 Media Card Reader6

(1) 9.0mm Slim ODD2

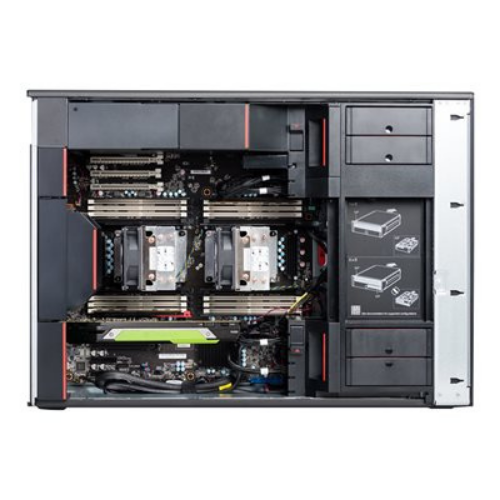

Expansion Slots

(5) PCIe x163

(3) PCIe x4

DESIGN

Dimensions (WxDxH)

(mm) : 200 x 620 x 446

(inches): 7.9” x 24.4” x 17.6”

PERFORMANCE

Processor

Dual Intel® Xeon® Platinum, Gold,

Silver and Bronze (up to 28 cores,

up to 3.6GHz per CPU)

Operating System

Windows 10 Pro for Workstations

Ubuntu Linux (pre-load)

Redhat Linux (certified)

Graphics

Up to 3x NVIDIA® Quadro® GP100 or

P6000

Total Memory

Up to 2TB DDR4, 2666MHz, 16 DIMMs

(supports both RDIMM and LRDIMM)

Memory DIMM Capacity

8 GB / 16 GB / 32 GB /

64 GB / 128 GB4

Total Storage

12 max internal drives

Up to 4 internal storage bays5

Max M.2 = 2 (2TB)1

Max 3.5” = 6 (60TB)1

Max 2.5” = 10 (20TB)1

Storage Type Capacity

3.5” SATA HDD 7200RPM up to 10TB

2.5” SAS HDD up to 1.2TB

2.5” SATA SSD up to 2TB

M.2 PCIe SSD up to 1TB

Raid3

0, 1, 5, 6, 10

Power Supply

1400W 92% Efficient

Chipset

Intel® C621

SOFTWARE

Windows 10 Preloads

CyberLink PowerDVD

CyberLink Create

CyberLink Power2Go

Lenovo™ Companion

ThinkStation® Diagnostics

Microsoft Office 2016 (trial)

ISV CERTIFICATIONS

Adobe®; ANSYS®; AUTODESK®;

AVID®; Altair®; AVEVA™; Bentley®;

Dassault®; Nemetschek®; PTC®;

Siemens®; Halliburton®;

Schumberger®; Barco®; Eizo®;

Mckesson®

GREEN CERTIFICATIONS

ENERGY STAR® 6.2 Qualified

GREENGUARD® Certified

EPEAT™ Gold rating

RoHS Compliant

80 PLUS® Platinum – 1400 W PSU

ErP Lot-6 2014

OPTIONS & ACCESSORIES

ThinkVision® P27u

ThinkVision® P24q

Rack Rail Kit

ThinkStation® Quad M.2 Adapter

For full list of accessories and options,

please visit http://accsmartfind.lenovo.com
