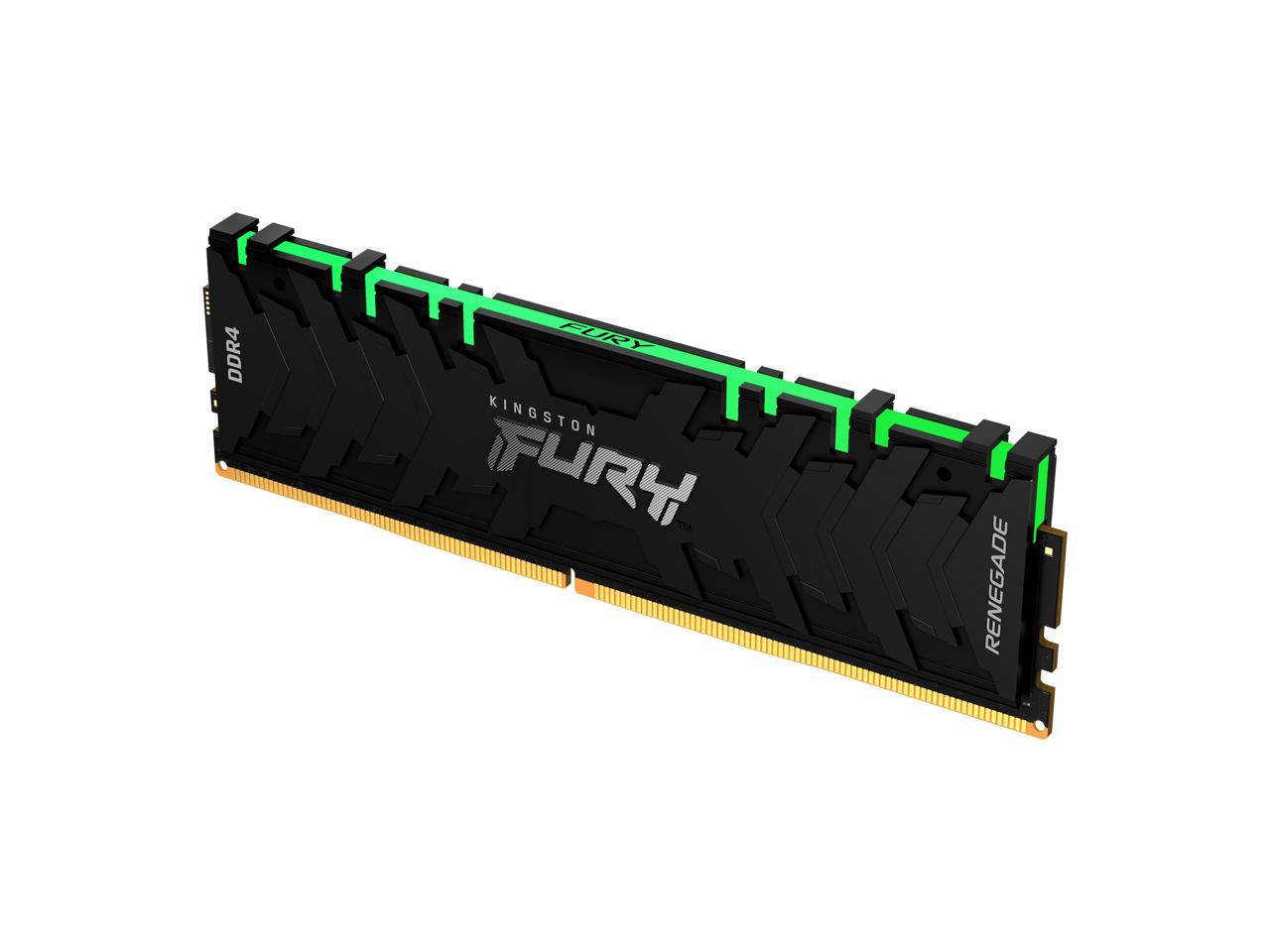

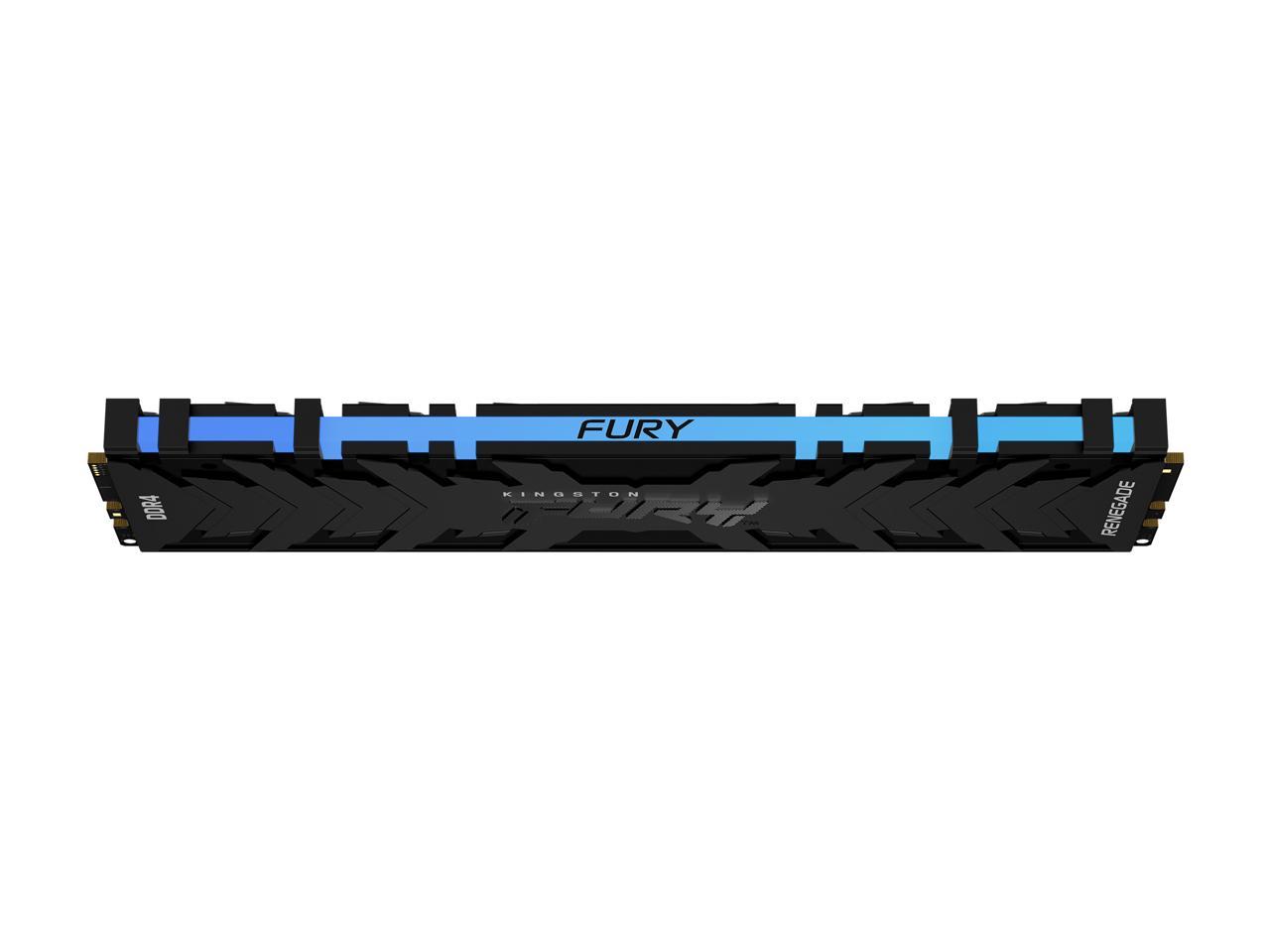

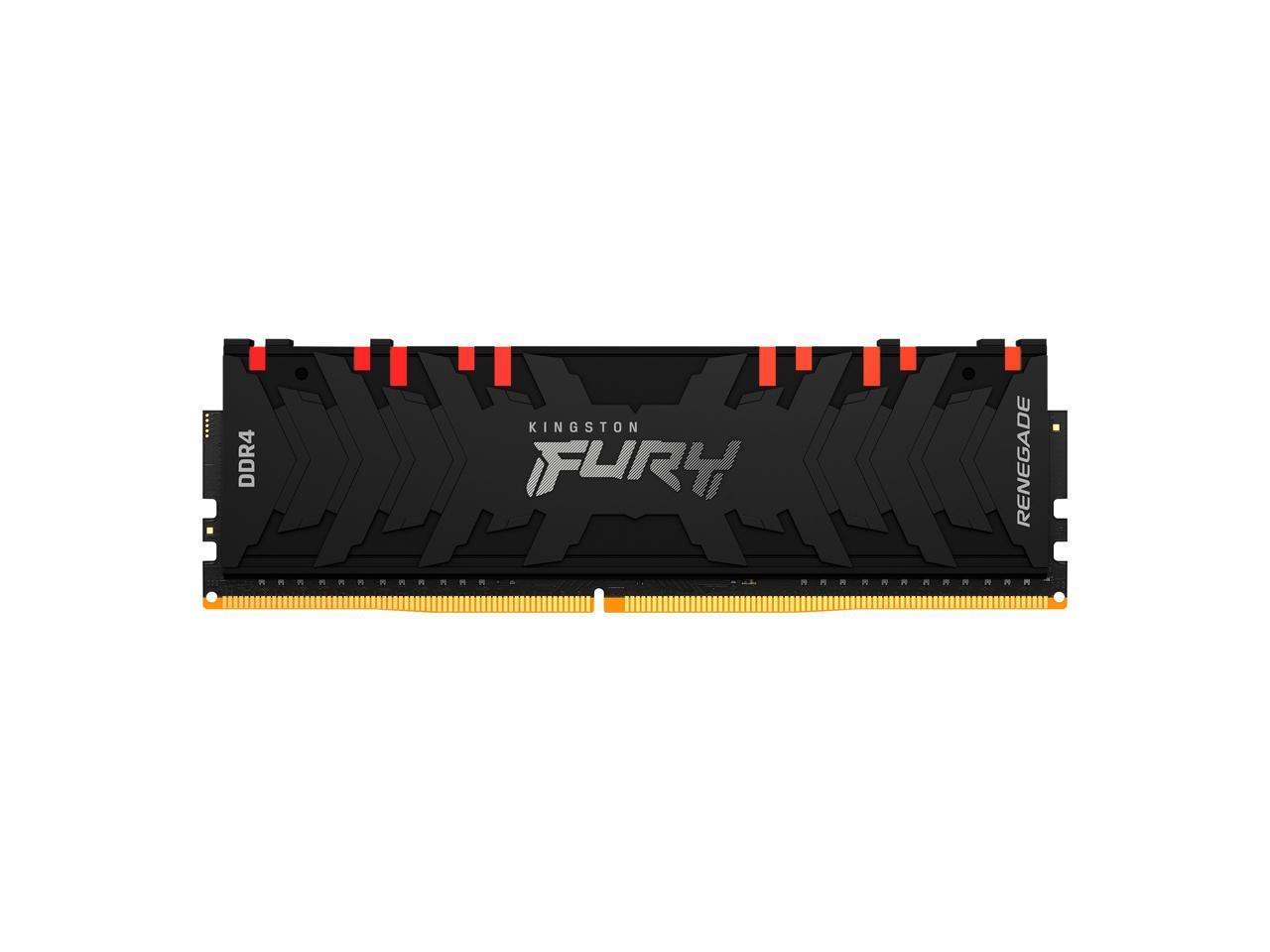

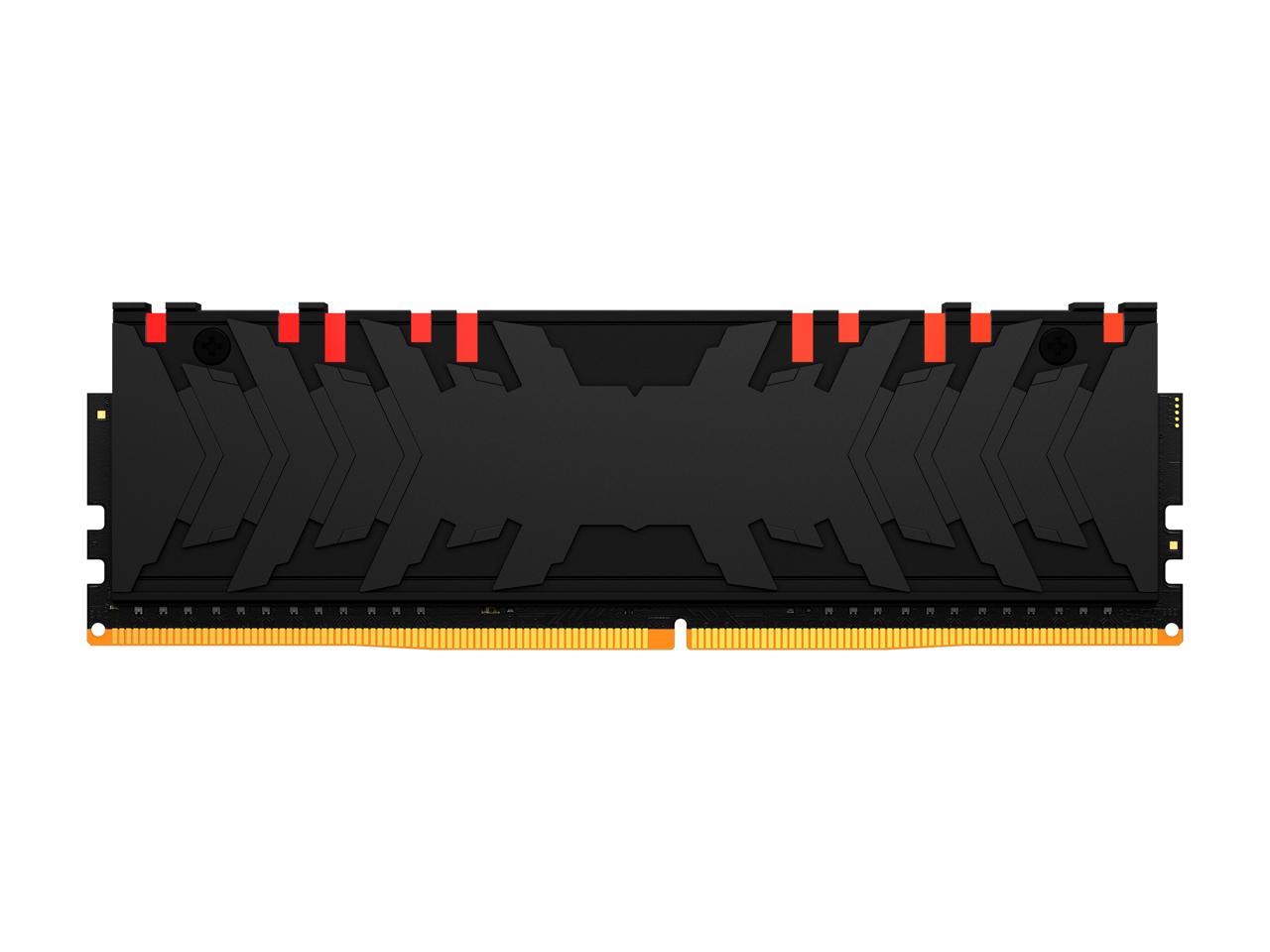

FURY KF436C16RBA/8 is a 1G x 64-bit (8GB) DDR4-3600 CL16 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-3600 at a low latency timing of 16-20-20 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
• Default (JEDEC): DDR4-2400 CL17-17-17 @1.2V
• XMP Profile #1: DDR4-3600 CL16-20-20 @1.35V
• XMP Profile #2: DDR4-3000 CL15-17-17 @1.35V
CL(IDD) 17 cycles Row Cycle Time (tRCmin) 45.75ns(min.) Refresh to Active/Refresh Command Time (tRFCmin) 350ns(min.) Row Active Time (tRASmin) 32ns(min.) UL Rating 94 V - 0 Operating Temperature 0o C to +85o C Storage Temperature -55o C to +100o C Item Dimension (L"xW"xH") 7 x 3 x 1
