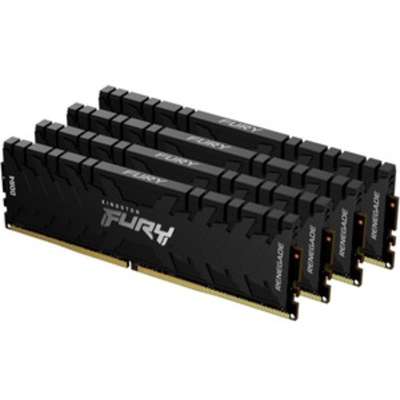

Kingston Memory KF436C16RB1K4-64 64GB 3600MHz DDR4 CL16 DIMM Kit of 4 FURY Renegade Black

KF436C16RB1K4/64

64GB (16GB 2G x 64-Bit x 4 pcs.)

DDR4-3600 CL16 288-Pin DIMM Kit

DESCRIPTION

FURY KF436C16RB1K4/64 is a kit of four 2G x 64-bit (16GB) DDR4-3600 CL16 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Total kit capacity is 64GB. Each module has been tested to run at DDR4-3600 at a low latency timing of 16-20-20 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

• Default (JEDEC): DDR4-2400 CL17-17-17 @ 1.2V

• XMP Profile Number 1: DDR4-3600 CL16-20-20 @ 1.35V

• XMP Profile Number 2: DDR4-3000 CL15-17-17 @ 1.35V CL(IDD)
17 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
7 x 3 x 1

Weight
1 lb

Warranty Information
Lifetime Warranty
