Kingston Technology Company

Kingston FURY Impact Black 8GB 4800MHz DDR5 CL38 SODIMM Memory Module

Regular price $68.99 USD
Regular price Sale price $68.99 USD
Shipping calculated at checkout.

DESCRIPTION

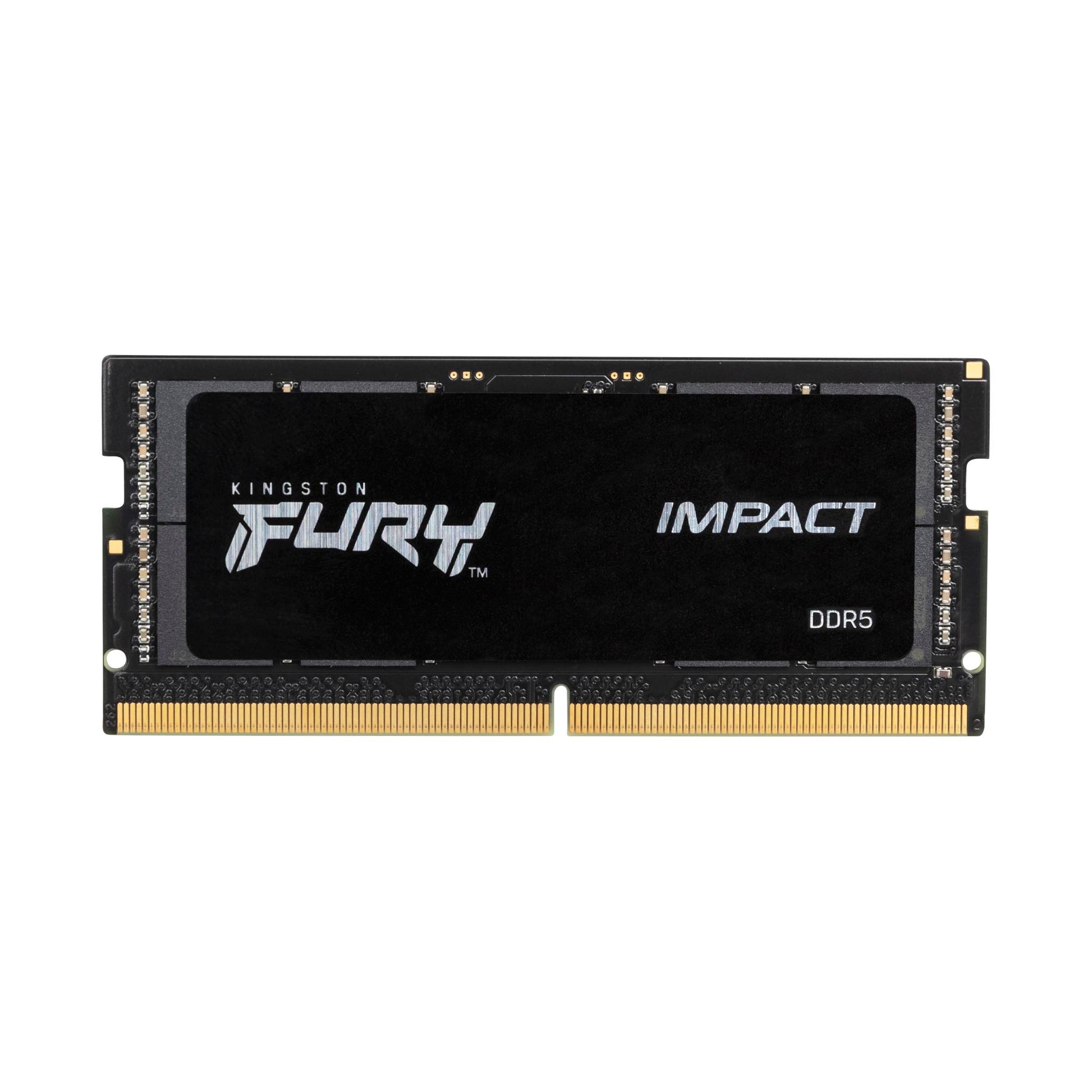

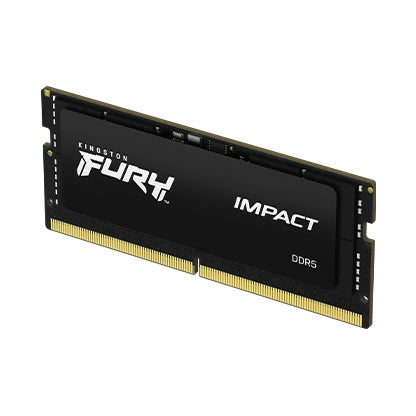

FURY KF548S38IB-8 is a 1G x 64-bit (8GB) DDR5-4800 CL38 SDRAM (Synchronous DRAM) 1Rx16, memory module, based on four 1G x 16-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-4800 at a low latency timing of 38-38-38 at 1.1V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 262-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

 FACTORY TIMING PARAMETERS

• Default (Plug N Play): DDR5-4800 CL38-38-38 @ 1.1V

• XMP Profile #1: DDR5-4800 CL38-38-38 @ 1.1V

SPECIFICATIONS

CL(IDD) 38 cycles

Row Cycle Time (tRCmin) 48ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin) 295ns(min.)

Row Active Time (tRASmin) 29.12ns(min.)

UL Rating 94 V - 0

Operating Temperature 0C to +85C

Storage Temperature  55C to +100C

FEATURES

• Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• Height 1.18” (30mm)

KF548S38IB-8

8GB 1G x 64-Bit

DDR5-4800 CL38 262-Pin SODIMM
