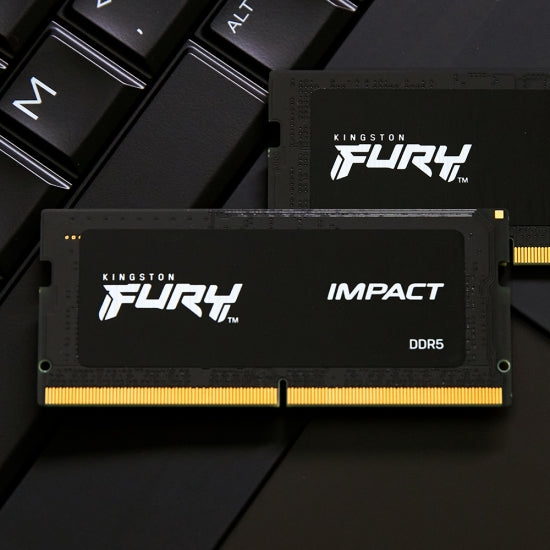

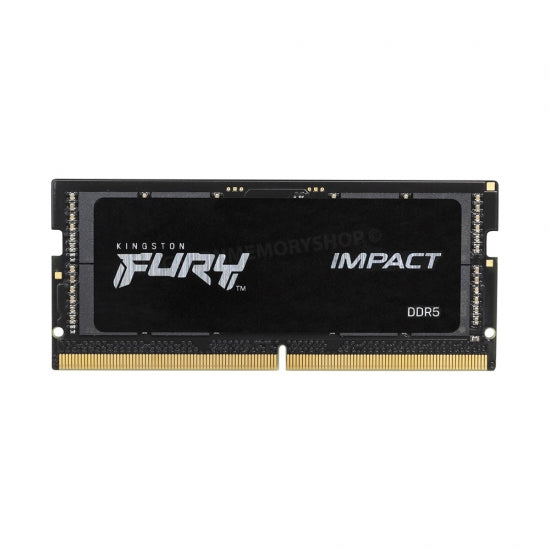

Kingston FURY Impact 16GB 4800MHz DDR5 CL38 SODIMM Memory Module
Kingston FURY Impact 16GB 4800MHz DDR5 CL38 SODIMM Memory Module
Couldn't load pickup availability
DESCRIPTION
FURY KF548S38IB-16 is a 2G x 64-bit (16GB) DDR5-4800 CL38 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-4800 at a low latency timing of 38-38-38 at 1.1V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 262-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
• Default (Plug N Play): DDR5-4800 CL38-38-38 @ 1.1V
• XMP Profile #1: DDR5-4800 CL38-38-38 @ 1.1V
SPECIFICATIONS
- CL(IDD) Row Cycle Time (tRCmin) 38 cycles
- Refresh to Active/Refresh 48ns(min.)
- Command Time (tRFCmin) 295ns(min.)
- Row Active Time (tRASmin) 29.12ns(min.)
- UL Rating 94 V - 0
- Operating Temperature 0 C to +85 C
- Storage Temperature -55 C to +100 C
FEATURES
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.18” (30mm)
KF548S38IB-16
16GB 2GB x 64-Bit
DDR5-4800 CL38 262-Pin SODIMM
