Kingston Technology Company

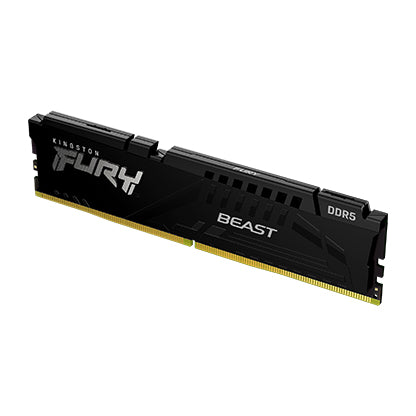

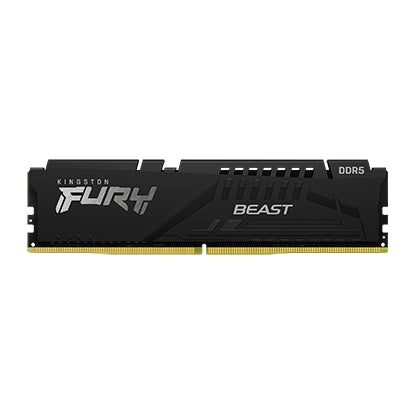

Kingston FURY Beast Black 8GB 6000MHz DDR5 CL40 DIMM Memory Module

Regular price $86.99 USD
Regular price Sale price $86.99 USD
Shipping calculated at checkout.

DESCRIPTION

FURY KF560C40BB-8 is a 1G x 64-bit (8GB) DDR5-6000 CL40 SDRAM (Synchronous DRAM) 1Rx16, memory module, based on four 1G x 16-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-6000 at a low latency timing of 40-40-40 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

• XMP Profile #1: DDR5-6000 CL40-40-40 @1.35V

• XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V

• XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V

SPECIFICATIONS

CL(IDD) 40 cycles

Row Cycle Time (tRCmin) 48ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin) 295ns(min.)

Row Active Time (tRASmin)  32ns(min.)

UL Rating 94 V - 0

Operating Temperature  0C to + 85C

Storage Temperature -55C to + 100C

KF560C40BB-8

8GB 1G x 64-Bit

DDR5-6000 CL40 288-Pin DIMM

Capacity Single 8GB
Speed 6000MT/s
Latency CL40
Voltage 1.35V
Operating temperature 0°C to 85°C
Dimensions 133.35 mm x 34.9 mm x 6.62 mm
