  • Kingston  FURY Beast Black 32GB 4800MHz DDR5 CL38 DIMM Memory Module Kingston Technology Company
  • Kingston  FURY Beast Black 32GB 4800MHz DDR5 CL38 DIMM Memory Module Kingston Technology Company
1 of 2

Kingston Technology Company

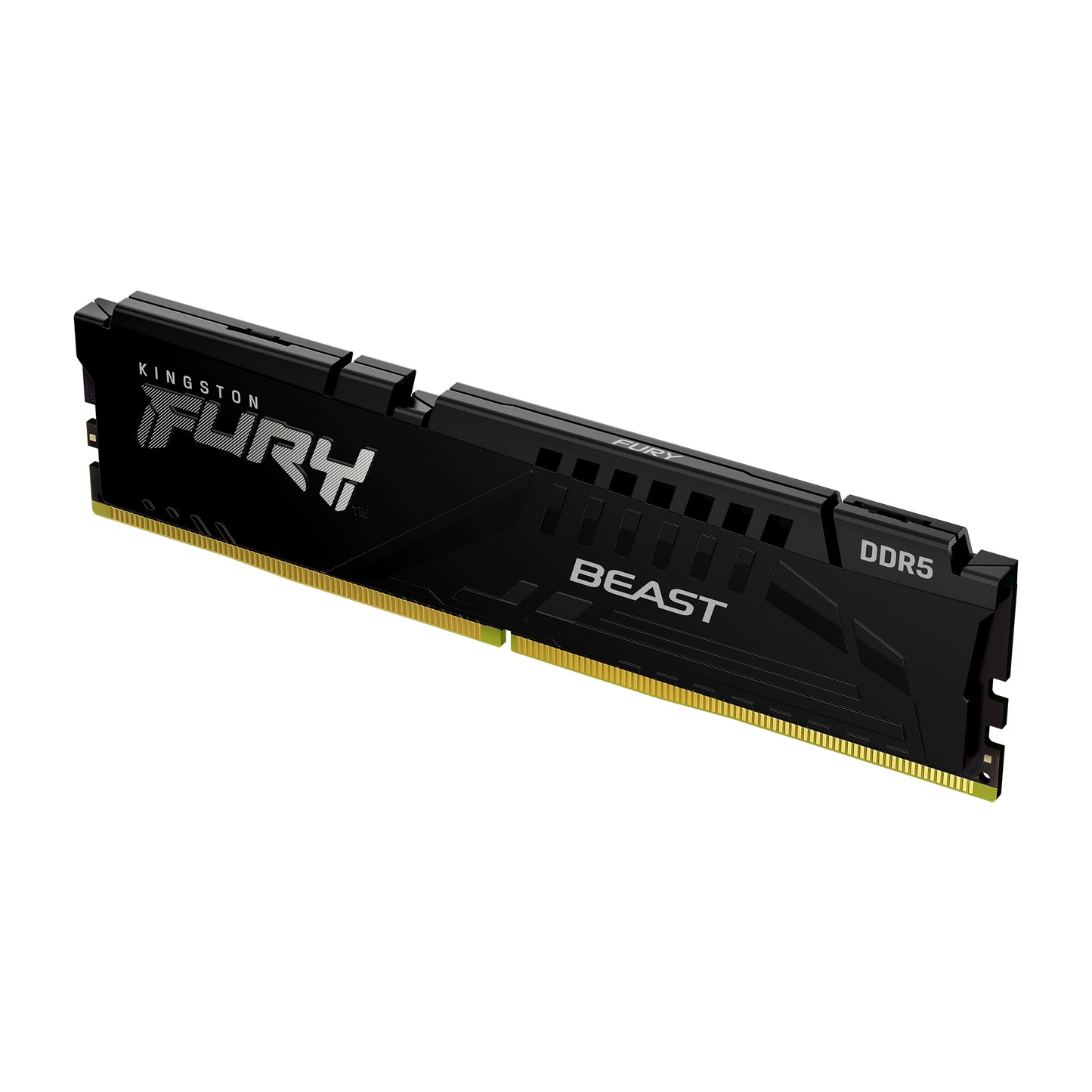

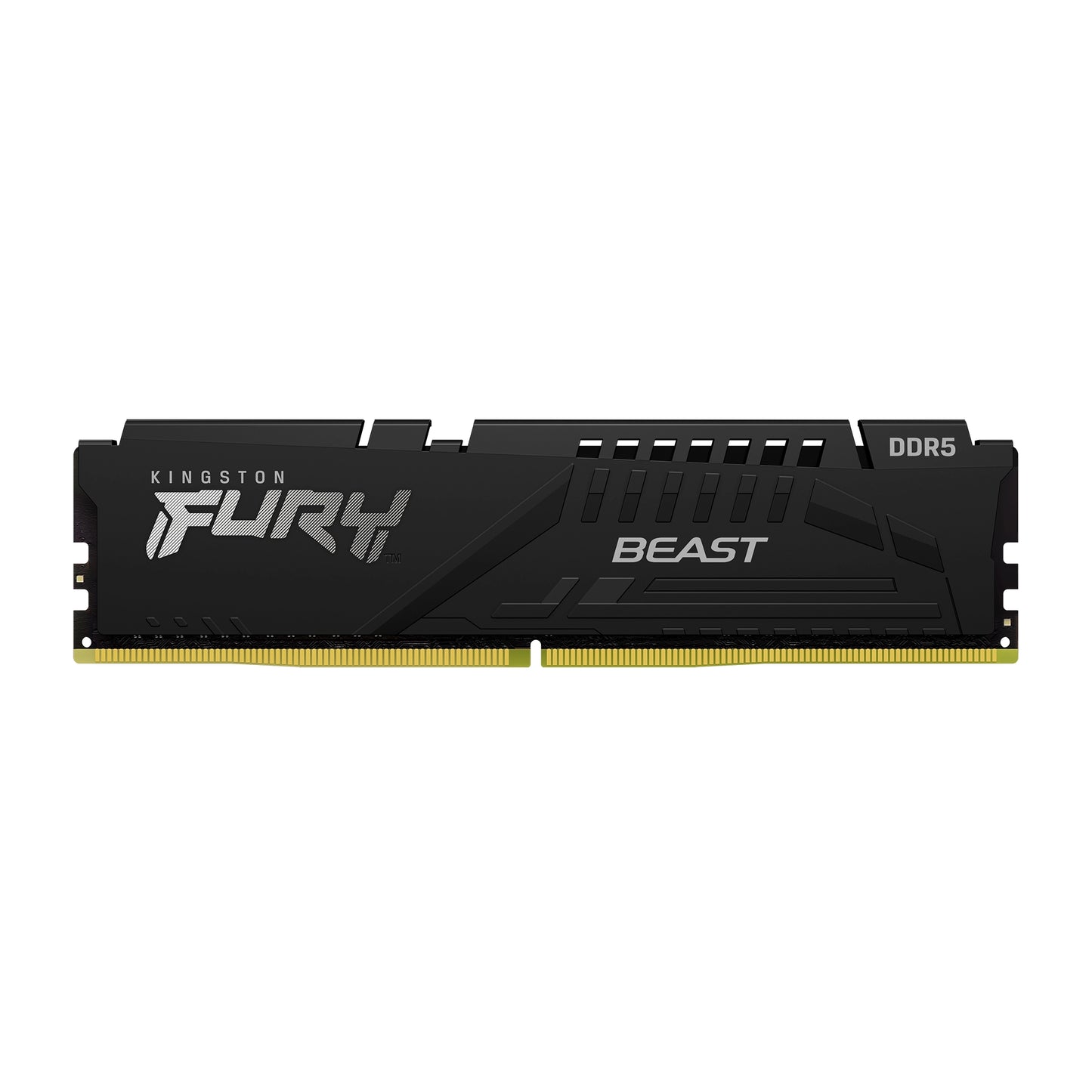

Kingston FURY Beast Black 32GB 4800MHz DDR5 CL38 DIMM Memory Module

Regular price $169.99 USD
Regular price Sale price $169.99 USD
Shipping calculated at checkout.

DESCRIPTION

FURY KF548C38BB-32 is a 4G x 64-bit (32GB) DDR5-4800 CL38 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-4800 at a low latency timing of 38-38-38 at 1.1V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

• Default (Plug N Play): DDR5-4800 CL38-38-38 @ 1.1V

• XMP Profile #1: DDR5-4800 CL38-38-38 @ 1.1V

SPECIFICATIONS

CL(IDD) 38 cycles

Row Cycle Time (tRCmin) 48ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin) 295ns(min.)

Row Active Time (tRASmin) 29.12ns(min.)

UL Rating 94 V - 0

Operating Temperature 0C to +85C

Storage Temperature -55C to +100C

FEATURES

• Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• Height 1.37” (34.9mm), w/heatsink

Capacity Single: 32GB
Speed* 4800MT/s
Latency CL38
Voltage 1.1V
Operating Temperature 0°C to 85°C
Dimensions 133.35 mm x 34.9 mm x 6.62 mm
