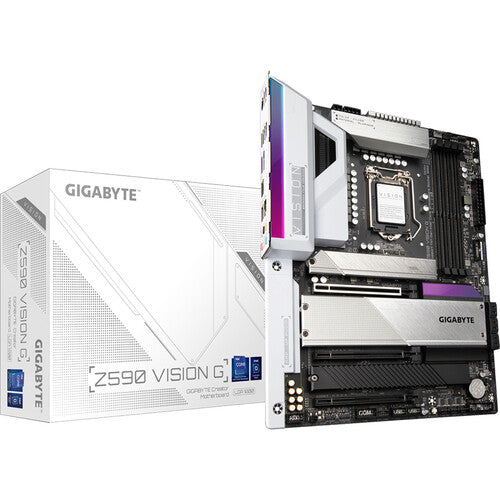

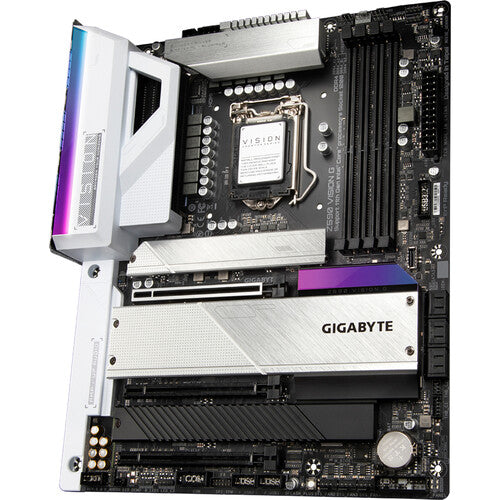

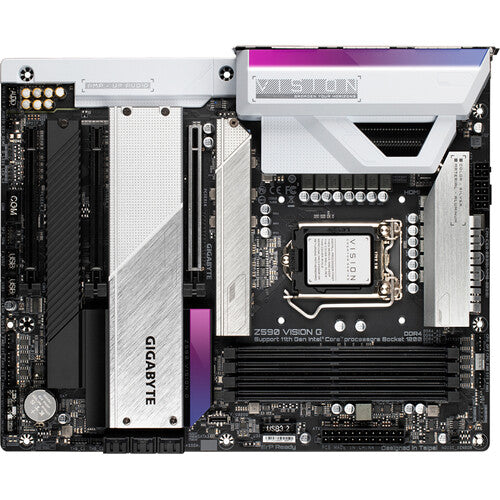

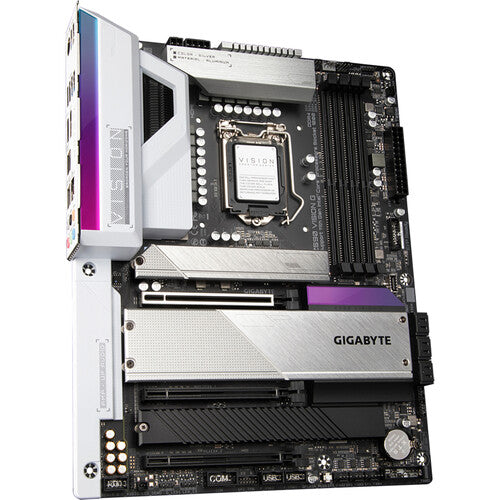

Gigabyte Z590 VISION G LGA 1200 ATX Motherboard

Gigabyte Z590 VISION G LGA 1200 ATX Motherboard

Regular price $326.99 USD
Regular price Sale price $326.99 USD
Sale Sold out
Shipping calculated at checkout.

Gigabyte Z590 VISION G LGA 1200 ATX Motherboard


Go Further Without More Cables
GIGABYTE VisionLINK is an extension of your idea and creation. Transmitting data, video output, and power charging all through one USB Type-C® cable will simplify the user experience more than ever. Seamlessly multitasking between your PC and devices lets you work like a pro.

* Compatibility may vary according to system configuration and device specifications.

All at One Cable that Does It All
Did you experience your pen display connecting to the PC with lots of cables? GIGABYTE VisionLINK lets you not only without cable clutter but also the benefit of data, video, and power charging simultaneously. One USB Type-C® cable connected, turn your workspace neat and tidy.


Add Graphic Power to You
Ever wondered if you can have a high-end graphic performance of your pen display? The DisplayPort™_In design provides external graphic performance and superior GPU ability for your pen display to use it. It brings your creation incredible realism and performance.


DisplayPort™ Alternate Mode with USB Power Delivery
VisionLINK equips you with the unique capability of data delivery, the DisplayPort Alternate Mode for the video signal, and a 60W Power Delivery design for your device's charging. It's a perfectly tailored connectivity for creators and professional artists.


High-Bandwidth and Low-Latency access.

The adoption of Intel® 2.5G LAN provides up to 2.5GbE network connectivity, with at least 2X faster transfer speeds than general 1GbE networking. It immediately boosts overall network performance and improves the bandwidth required at large file transfers, video editing, and performance workloads.

CPU
LGA1200 package:
11th Generation Intel CoreTM i9 processors / Intel CoreTM i7 processors / Intel CoreTM i5 processors
10th Generation Intel CoreTM i9 processors / Intel CoreTM i7 processors / Intel CoreTM i5 processors / Intel CoreTM i3 processors/ Intel Pentium processors / Intel Celeron processors
Note: Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
L3 cache varies with the CPU
(Please refer to "CPU Support List" for more information.)
Chipset
Intel Z590 Express Chipset
Memory
11th Generation Intel CoreTM i9/i7/i5 processors:
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
10th Generation Intel CoreTM i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel CoreTM i5/i3 /Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer to "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x USB Type-C port, supporting USB Type-C and DisplayPort video outputs and a maximum resolution of 4096x2304 at 60 Hz.
Note:
Support for drawing tablets and 20V at 3A of power delivery.
Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160 at 30 Hz
Note: Support for HDMI 1.4 version and HDCP 2.3.
(Supported graphics specifications may vary depending on the CPU or graphics card used.)
Audio
Realtek ALC4080 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
Note:
- For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
Note: Supported by 11th Generation processors only.
2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
(The PCIEX4 slot conforms to PCI Express 3.0 standard.)
Multi-Graphics Technology
Support for AMD Quad-GPU CrossFireTM and 2-Way AMD CrossFireTM technologies
Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Note: Supported by 11th Generation processors only.
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)(M2C_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Note: Refer to "1-7 Internal Connectors" for the installation notices for the M.2 and SATA connectors.
Intel OptaneTM Memory Ready
USB
Chipset:
2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
2 x ThunderboltTM add-in card connectors
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
1 x noise detection header

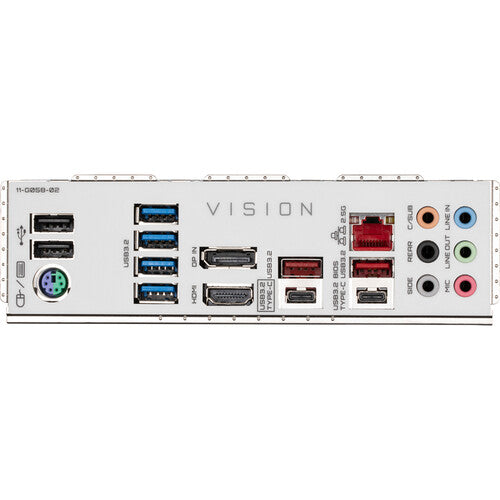

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
4 x USB 3.2 Gen 1 ports
1 x DisplayPort In port
1 x HDMI port
2 x USB 3.2 Gen2 Type-A ports
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x RJ-45 port
6 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Note: Whether the fan speed control function is supported will depend on the cooler you install.
Noise detection
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
Note: Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
at BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version)
cFosSpeed
Operating System
Support for Windows 10 64-bit
Form Factor
ATX Form Factor, 30.5cm x 24.4cm
Item Dimension (L inchxW inchxH inch)
14 x 11 x 4

Weight
5.16 lb

Warranty Information
3 YEARS
