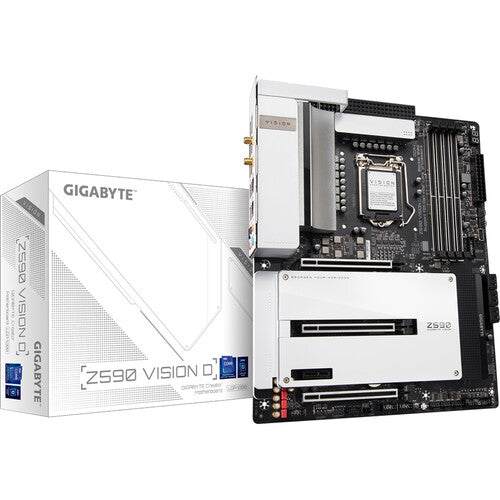

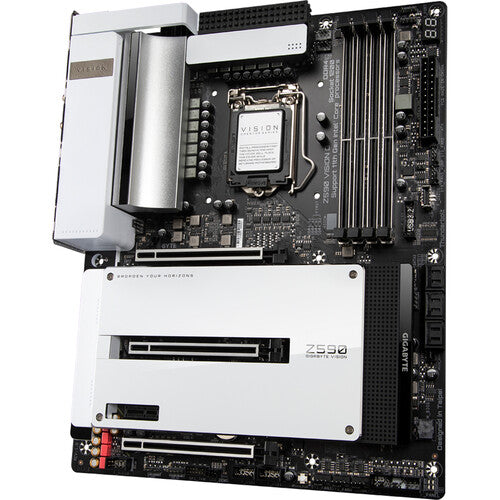

Go Further Without More Cables

GIGABYTE VisionLINK is an extension of your idea and creation. Transmitting data, video output, and power charging all through one USB Type-C® cable will simplify the user experience more than ever. Seamlessly multitasking between your PC and devices lets you work like a pro.

* Compatibility may vary according to system configuration and device specifications.


All at One Cable that Does It All

Did you experience your pen display connecting to the PC with many cables? GIGABYTE VisionLINK lets you not only without cable clutter but also the benefit of data, video, and power charging simultaneously. One USB Type-C® cable connected, turn your workspace neat and tidy.


VisionLINK TB, Your Thunderbolt™ 4

GIGABYTE VisionLINK TB is based on Thunderbolt™ 4, delivers 40Gb/s high-bandwidth speeds, data, video, 60W power, and USB4™ specification compliance devices with the simplicity of just one cable. One simple connectivity to make your work better than ever.


Add Graphic Power to You

Ever wondered if you can have a high-end graphic performance of your pen display? The DisplayPort™_In design provides external graphic performance and superior GPU ability for your pen display to use it. It brings your creation incredible realism and performance.


Connect the devices you have. Like a Pro

Creators engaged in drawing work usually connect with a high-end pen display. Now, it can even be directly presented on the big screen to discuss more details or real-time rendering during the proposal. Meanwhile, they can have a daisy chain of multiple Thunderbolt devices together and ultimately end up with just one cable to make the connectivity to be simple.

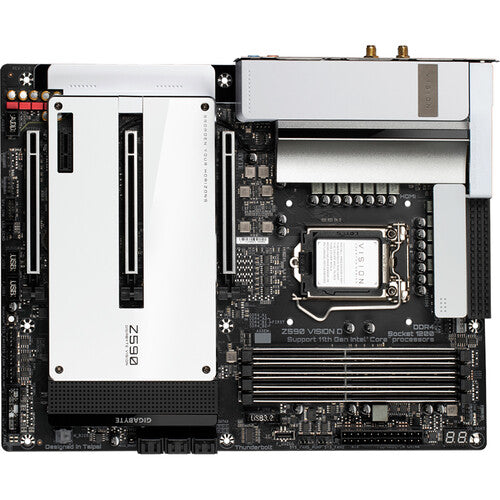

CPU
LGA1200 package:
11th Generation Intel Core^TM i9 processors / Intel Core^TM i7 processors / Intel Core^TM i5 processors
10th Generation Intel Core^TM i9 processors / Intel Core^TM i7 processors / Intel Core^TM i5 processors / Intel Core^TM i3 processors/ Intel Pentium processors / Intel Celeron processors
Note: Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
L3 cache varies with the CPU
(Please refer to "CPU Support List" for more information.)
Chipset
Intel Z590 Express Chipset
Memory
11th Generation Intel Core^TM i9/i7/i5 processors:
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
10th Generation Intel Core^TM i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel Core^TM i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer to "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor+Intel Thunderbolt^TM 4 Controller:
1 x VisionLINK TB connector (Intel Thunderbolt^TM 4/USB Type-C port)
1 x Intel Thunderbolt^TM 4 connector (USB Type-C port)
Note: - The Intel Thunderbolt^TM 4 connectors support DisplayPort and Thunderbolt^TM video outputs and a maximum resolution of 5120x2880 at 60 Hz with 24 bpp (via single display output)
- Because of the limited I/O resources of the PC architecture, the number of Thunderbolt^TM devices that can be used depends on the number of PCI Express devices being installed. (Refer to Chapters 1-7, "Back Panel Connectors," for more information.)
- Support for DisplayPort 1.4 version and HDCP 2.3.
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160 at 30 Hz
Note: Support for HDMI 1.4 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek ALC4080 codec
Support for DTS:X Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
2 x Intel 2.5GbE LAN chips (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module
Intel Wi-Fi 6 AX200
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.1
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Note: Actual data rate may vary depending on the environment and equipment.
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
Note: For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
Note: The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
(The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)
Note: Supported by 11th Generation processors only.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
Note: The PCIEX4 slot shares bandwidth with the M2P_SB connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_SB connector.
1 x PCI Express x1 slot
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
Support for AMD Quad-GPU CrossFire^TM and 2-Way AMD CrossFire^TM technologies
Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Note: Supported by 11th Generation processors only.
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Note: Refer to "1-8 Internal Connectors" for the installation notices for the PCIEX4, M.2, and SATA connectors.
Intel Optane^TM Memory Ready
USB
Chipset+Intel Thunderbolt^TM 4 Controller:
2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x temperature sensor headers
1 x Clear CMOS jumper
1 x Q-Flash Plus button

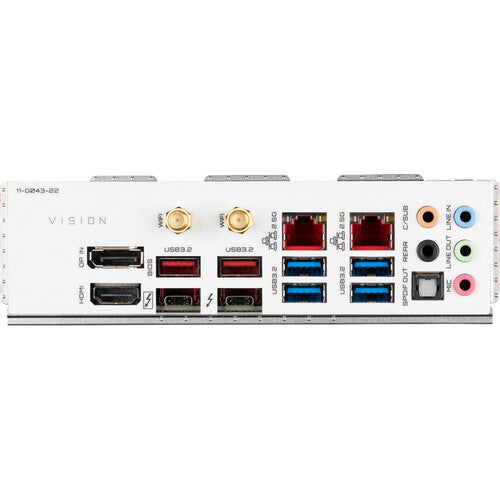

Back Panel Connectors
1 x DisplayPort In port
1 x HDMI port
2 x SMA antenna connectors (2T2R)
2 x Thunderbolt^TM 4 connectors (USB Type-C port, with USB 3.2 Gen 2 support)
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Note: Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
Note: Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
at BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version)
cFosSpeed
Operating System
Support for Windows 10 64-bit
Form Factor
ATX Form Factor 30.5cm x 24.4cm
