Gigabyte

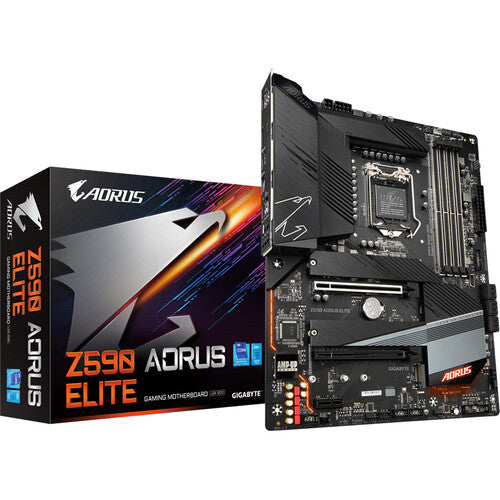

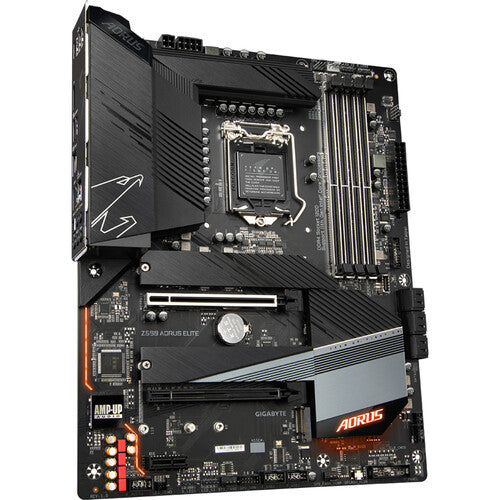

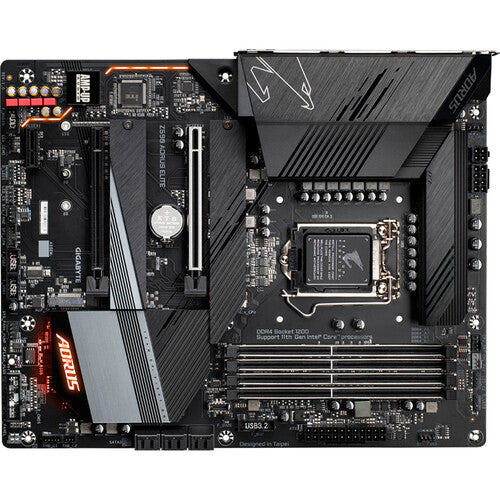

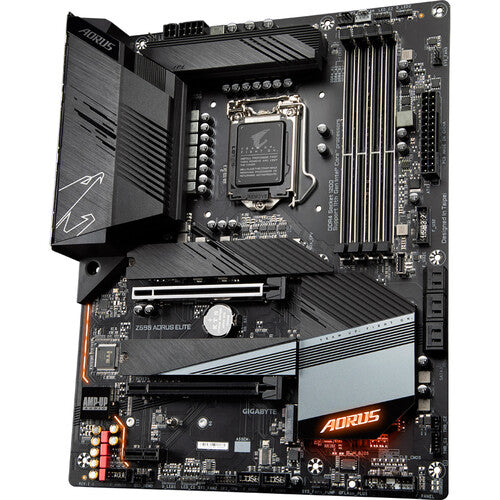

Gigabyte Z590 AORUS ELITE LGA 1200 ATX Motherboard

Gigabyte Z590 AORUS ELITE LGA 1200 ATX Motherboard

Regular price $260.99 USD
Regular price Sale price $260.99 USD
Sale Sold out
Shipping calculated at checkout.

Gigabyte Z590 AORUS ELITE LGA 1200 ATX Motherboard


DIRECT POWER DESIGN
Z590 AORUS ELITE motherboard uses a 12+1 phases digital CPU power design, including a digital PWM Controller and DrMOS. These 100% digital controllers and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new Intel 11th Gen CPU.

ADVANCED THERMAL SOLUTION
Z590 AORUS ELITE uses a high-performance Full Covered thermal design with high coverage MOSFET Heatsinks and a thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers, and gamers.

UNPARALLELED PERFORMANCE
With the best quality components and GIGABYTE R&D design capability, the Z590 AORUS is a true beast among motherboards.

NEXT GENERATION CONNECTIVITY
A high-end product needs to be future-proof, so your system stays up-to-date with the latest technology. Z590 AORUS ELITE provides all next-generation networks and storage to keep you up to speed.

Hi-Res Audio
Hi-Res Audio certification means that the product can reproduce frequencies up to 40kHz or above, which ensures the user with the best audio quality at all times.

Immersive Gaming ViBes

Realtek High-End HD Audio Codec

ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects your head-worn audio device impedance, preventing issues such as low volume and distortion. With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

CPU
LGA1200 package:
11th Generation Intel CoreTM i9 processors / Intel CoreTM i7 processors / Intel CoreTM i5 processors
10th Generation Intel CoreTM i9 processors / Intel CoreTM i7 processors / Intel CoreTM i5 processors / Intel CoreTM i3 processors/ Intel Pentium processors / Intel Celeron processors
Note: Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset
Intel Z590 Express Chipset
Memory
11th Generation Intel CoreTM i9/i7/i5 processors:
Support for DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
10th Generation Intel CoreTM i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel CoreTM i5/i3 /Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer to "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304 at 60 Hz
Note: Support for DisplayPort 1.2 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek ALC1220-VB codec
Note: The back panel line out jack supports DSD audio
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
Note: For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
Note: Supported by 11th Generation processors only.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
Support for AMD Quad-GPU CrossFireTM and 2-Way AMD CrossFireTM technologies
Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Note: Supported by 11th Generation processors only.
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2B_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Note: Refer to "1-7 Internal Connectors" for the installation notices for the M.2 and SATA connectors.
Intel OptaneTM Memory Ready
USB
Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen2 Type-A ports (red) on the back panel
5 x USB 3.2 Gen1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hub:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen1 header
2 x USB 2.0/1.1 headers
2 x ThunderboltTM add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
1 x Clear CMOS jumper
1 x Q-Flash Plus button

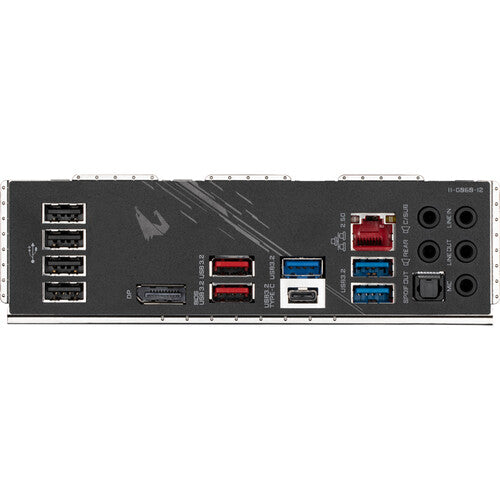

Back Panel Connectors
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Note: Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
Note: Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
at BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version)
Realtek 8125 Gaming LAN Bandwidth Control Utility
Operating System
Support for Windows 10 64-bit
Form Factor
ATX Form Factor 30.5cm x 24.4cm
Item Dimension (L inchxW inchxH inch)
14 x 11 x 4

Weight
5.00 lb

Warranty Information
3 YEARS
