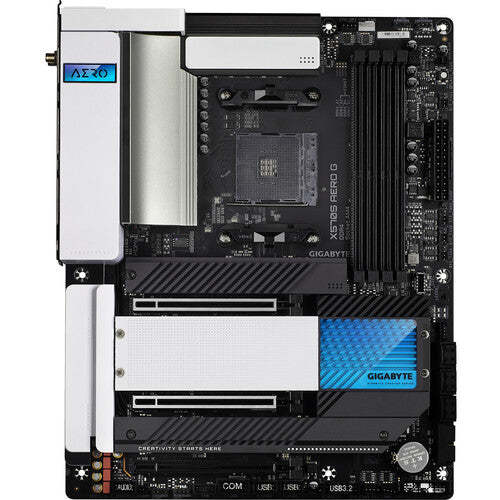

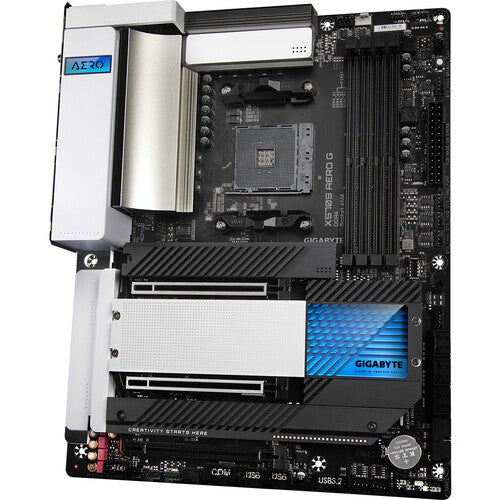

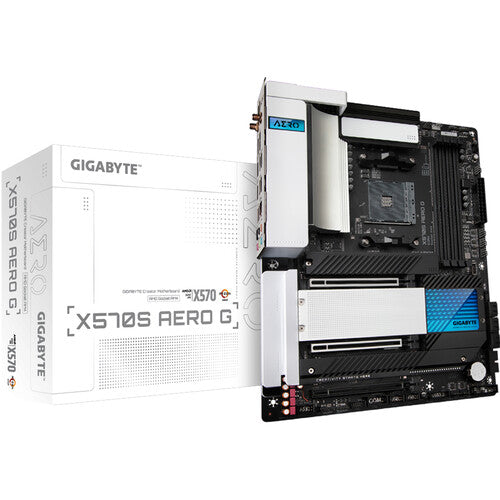

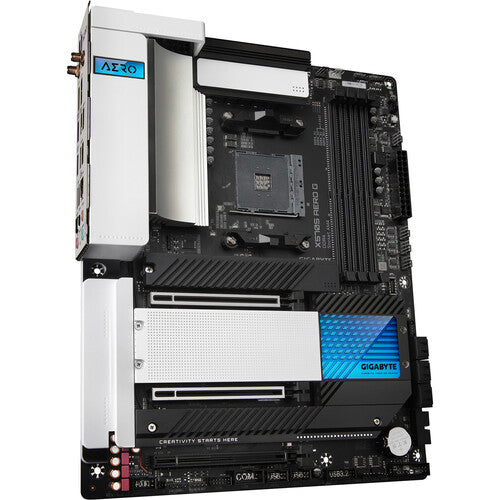

Gigabyte X570S AERO G Motherboard

Gigabyte X570S AERO G Motherboard

Regular price $398.99 USD
Regular price Sale price $398.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Gigabyte X570S AERO G Motherboard


Creativity Starts Here
AERO Series motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics, and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production.
Go Further Without More Cables
GIGABYTE VisionLINK is an extension of your idea and creation. Transmitting data, video output, and power charging all through one USB Type-C cable will simplify the user experience than ever. With seamless multitasking between your PC and devices, it lets you work like a pro.
Intel 2.5GbE Connectivity
High-Bandwidth and Low-Latency access.
The adoption of Intel 2.5G LAN provides up to 2.5GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking. It immediately boosts overall network performance and improves the bandwidth required at large file transfers, video editing, and performance workloads.
Make Your Expandability Flexible.
Multi-graphics configurations offer better graphics performance for applications that demand the highest frame rates without compromising on resolution.
Fast Speed. More Space.
To equip with four PCIe M.2 sockets, delivering superior bandwidth and upgrading your storage capacity to accelerate creative workflow. M.2 PCIe SSD gives you 7X faster data transferring experience compared to 2.5" SATA solid-state drives.

CPU
AMD Socket AM4, support for: AMD Ryzen 5000 Series Processors/ AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
AMD X570
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor:
1 x USB Type-C port, supporting USB Type-C and DisplayPort video outputs and a maximum resolution of 4096x2304 at 60 Hz
Support for drawing tablets and 20V at 3A of power delivery.
Support for DisplayPort 1.4 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz
Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
Realtek ALC1220-VB Audio CODEC
The back panel line out jack supports DSD audio.
Support for DTS:X Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel Wi-Fi 6 AX200 (For PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 5000 Series/3000 Series Processors
support PCIe 4.0 x16 mode
AMD Ryzen 5000 G-Series/4000 G-Series/2000 Series Processors
support PCIe 3.0 x16 mode
AMD Ryzen 3000 G-Series/2000 G-Series Processors
support PCIe 3.0 x8 mode
1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
AMD Ryzen 5000 Series/3000 Series Processors
support PCIe 4.0 x8 mode
AMD Ryzen 5000 G-Series/4000 G-Series/2000 Series Processors
support PCIe 3.0 x8 mode
AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 G-Series Processors do not support this slot
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 4.0 /3.0 x4 mode
For AMD Ryzen 5000 Series/3000 Series Processors only.
The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.
Multi-Graphics Technology
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
For AMD Ryzen 5000 Series/5000 G-Series/4000 G-Series/3000 Series/2000 Series Processors only.
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
AMD Ryzen 5000-Series/3000 Series Processors
support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/ 2000 G-Series Processors
support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
Supporting PCIe 4.0 /3.0 x4/x2 SSDs
For AMD Ryzen 5000 Series/3000 Series Processors only.
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
Supporting SATA and PCIe 4.0 /3.0 x4/x2 SSDs
For AMD Ryzen 5000 Series/3000 Series Processors only.
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280/22110 SSDs:
Supporting SATA and PCIe 4.0 /3.0 x4/x2 SSDs
For AMD Ryzen 5000 Series/3000 Series Processors only.
6 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USB
CPU:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports on the back panel
Chipset+ASMedia USB 3.2 Gen 2x2 Controller:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Thunderbolt add-in card connector
1 x serial port header
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x Q-Flash Plus button

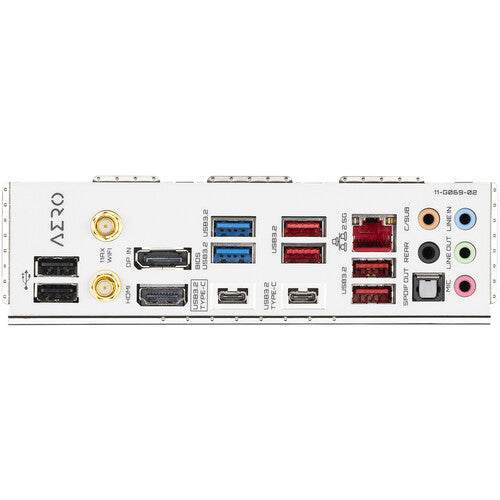

Back Panel Connectors
2 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R) 1 x HDMI port
1 x DisplayPort In port
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
1 x USB Type-C port, with USB 3.2 Gen 1 support
4 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
At BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version)
cFosSpeed
Operating System
Support for Windows 10 64-bit
Form Factor
ATX Form Factor 30.5cm x 24.4cm
