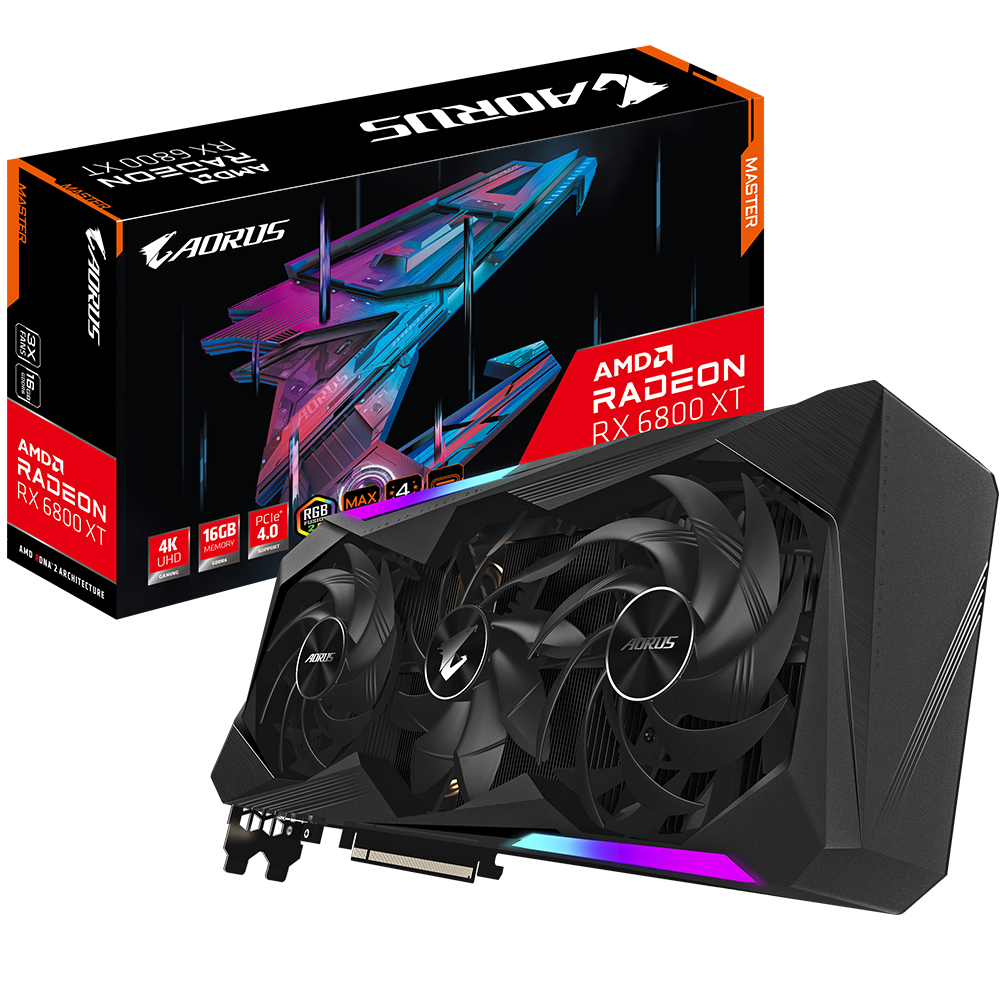

Gigabyte Radeon RX 6800 XT 16GB GDDR6 256B PCIE DP

KEY FEATURE
Powered by RDNA2 Radeon RX 6800 XT
Integrated with 16GB GDDR6 256-bit memory interface
MAX-Covered cooling
LCD Edge View
RGB Fusion 2.0
Dual BIOS
Protection metal back plate
4 years warranty (Online registration required)
CORE CLOCK
Boost Clock : up to 2310 MHz (Reference card: 2250 MHz)
Game Clock : up to 2065 MHz (Reference card: 2015 MHz)
DESIGN CONCEPT
In the AORUS dimension, everything is constructed digitally. The lighting and patterns are mapped onto the products with an efficient, free flowing style.
Welcome to the Digital Code Era.
MAX-COVERED COOLING
The Max-Covered cooling features 2x 115mm and 1x 100mm unique blade stack fans with wind claw design and alternate spinning, so the air pressure can completely cover the heatsink.
UNIQUE BLADE STACK FANS
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
WIND CLAW DESIGN
Reinforce and channel the airflow to completely cover the heat sink.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase air pressure.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
LARGE COPPER PLATE AND HEAT PIPE
With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
ANGULAR FIN DESIGN
The angular and unequal fins height can channel the airflow through the fins and enlarge the contact surface. Graphics Processing
Radeon RX 6800 XT
Core Clock
Boost Clock : up to 2310 MHz (Reference card: 2250 MHz)
Game Clock : up to 2065 MHz (Reference card: 2015 MHz)
Stream Processors
4608
Process Technology
7 nm
Memory Clock
16000 MHz
Memory Size
16 GB
Memory Type
GDDR6
Memory Bus
256 bit
Memory Bandwidth (GB/sec)
512 GB/s
Card Bus
PCI-E 4.0 x 16
Digital max resolution
7680x4320
Multi-view
4
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
750W
Power Connectors
8 pin x2
Output
DisplayPort 1.4a x1
HDMI 2.1 x2
USB Type-C x1
Accessories
1. Quick guide
2. 4-year warranty registration
3. Metal sticker
Note
Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
