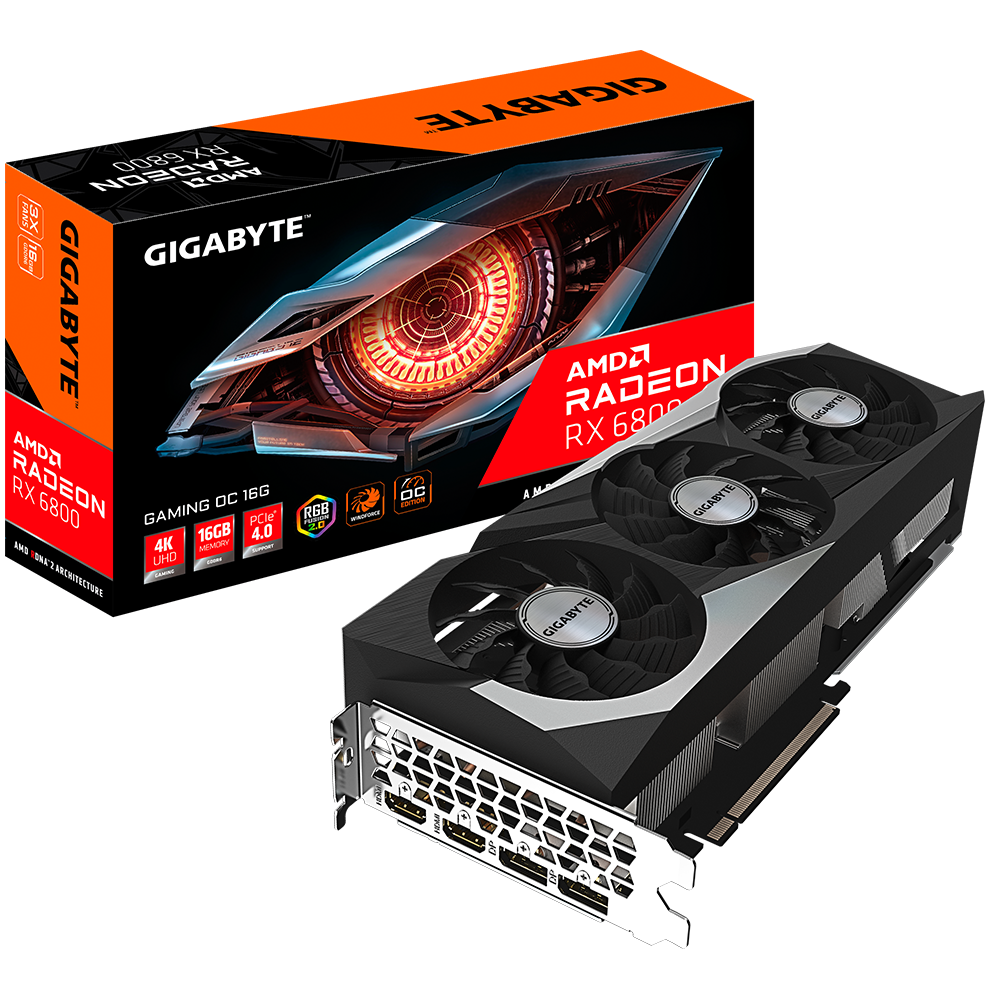

Gigabyte Radeon RX 6800 GAMING OC 16GB GDDR6

FEATURES

Powered by RDNA2 Radeon™ RX 6800

Integrated with 16GB GDDR6 256-bit memory interface

WINDFORCE 3X Cooling System with alternate spinning fans

Screen cooling

Graphene nano lubricant

RGB Fusion 2.0

Dual BIOS

Protection metal back plate

CORE CLOCK

Boost Clock : up to 2155 MHz (Reference card: 2105 MHz)

Game Clock* : 1925 MHz (Reference card: 1815 MHz)

WINDFORCE 3X
COOLING SYSTEM

The WINDFORCE 3X cooling system features 3X80mm unique blade fans, alternate spinning, 5 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.

SMOOTH AIRFLOW

GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure. Graphics Processing
Radeon^TM RX 6800
Core Clock
Boost Clock : up to 2155 MHz (Reference card: 2105 MHz)
Game Clockx : 1925 MHz (Reference card: 1815 MHz)
Stream Processors
3840
Process Technology
7 nm
Memory Clock
16000 MHz
Memory Size
16 GB
Memory Type
GDDR6
Memory Bus
256 bit
Memory Bandwidth (GB/sec)
512 GB/s
Card Bus
PCI-E 4.0 x 16
Digital max resolution
7680x4320
Multi-view
4
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
650W
Power Connectors
8 pinx2
Output
DisplayPort 1.4a x2
HDMI 2.1x2
Accessories
Quick guide
Note
: "Game Clock" is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
