Gigabyte

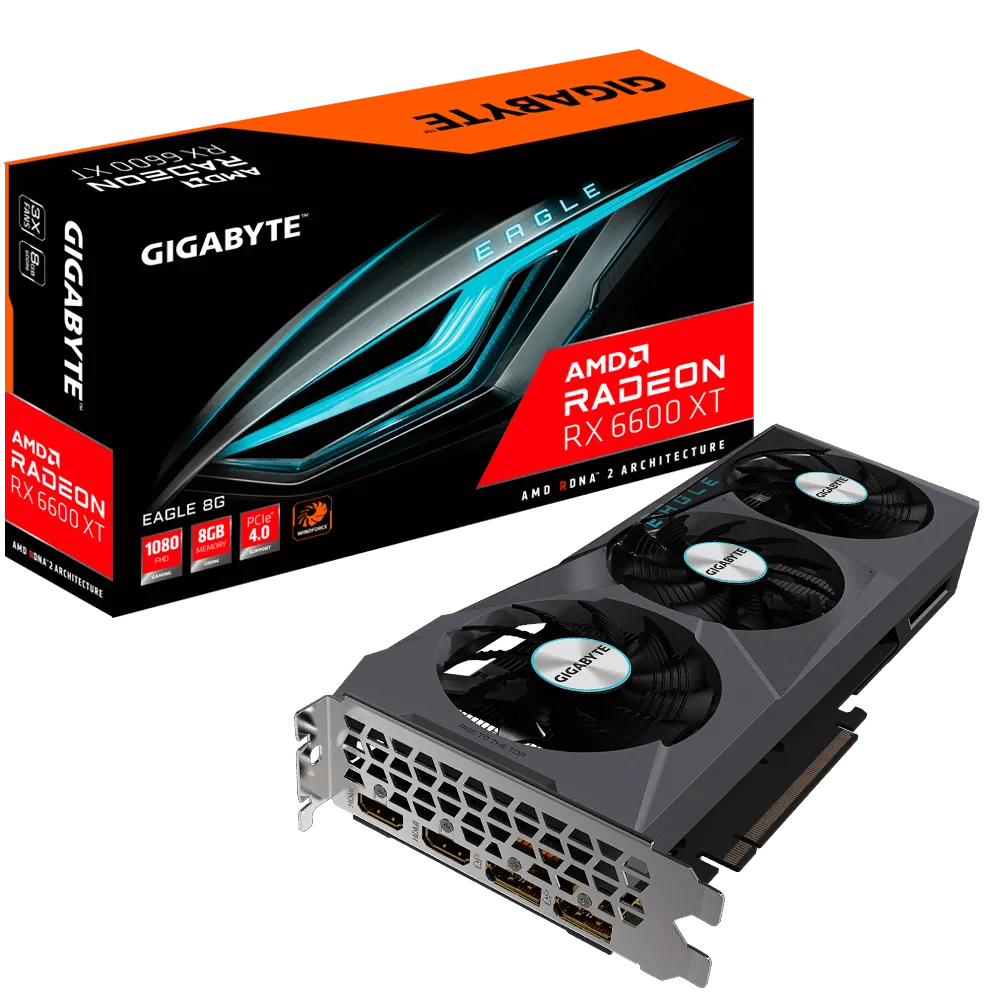

Gigabyte Radeon RX 6600 XT EAGLE 8GB GDDR6 Graphics Card

Gigabyte Radeon RX 6600 XT EAGLE 8GB GDDR6 Graphics Card

Regular price $544.99 USD
Regular price Sale price $544.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

FEATURES
Powered by AMD RDNA™ 2 Radeon™ RX 6600 XT
Integrated with 8GB GDDR6 128-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans

Screen cooling
Graphene nano lubricant
Protection back plate

CORE CLOCK
Boost Clock* : up to 2589 MHz
Game Clock* : up to 2359 MHz


WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x80mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.

SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.


UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.

HEAT PIPES DIRECT TOUCH

The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

Graphics Processing
RadeonTM RX 6600 XT
Core Clock
Boost Clocknote1 : up to 2589 MHz
Game Clocknote2: up to 2359 MHz
Stream Processors
2048
Memory Clock
16000 MHz
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Memory Bandwidth (GB/sec)
256 GB/s
Card Bus
PCI-E 4.0 x 8
Digital max resolution
7680x4320
Multi-view
4
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
500W
Power Connectors
8 pin x 1
Output
DisplayPort 1.4a x 2
HDMI 2.1 x 2
Accessories
Quick guide
Note
Note1: Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
Note2: Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
Item Dimension (L inchxW inchxH inch)
5 x 12 x 2

Weight
3.08 lb

Warranty Information
3 YEARS

Proposition 65 Warning for California Consumers

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
