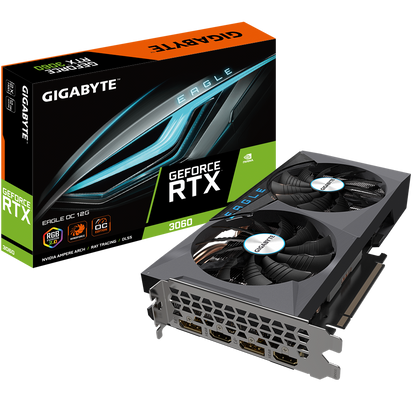

Gigabyte GeForce RTX 3060 12GB GDDR6 Graphics Card

Gigabyte GeForce RTX 3060 12GB GDDR6 Graphics Card

FEATURES
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3060
Integrated with 12GB GDDR6 192-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
100mm unique blade fans
RGB Fusion 2.0

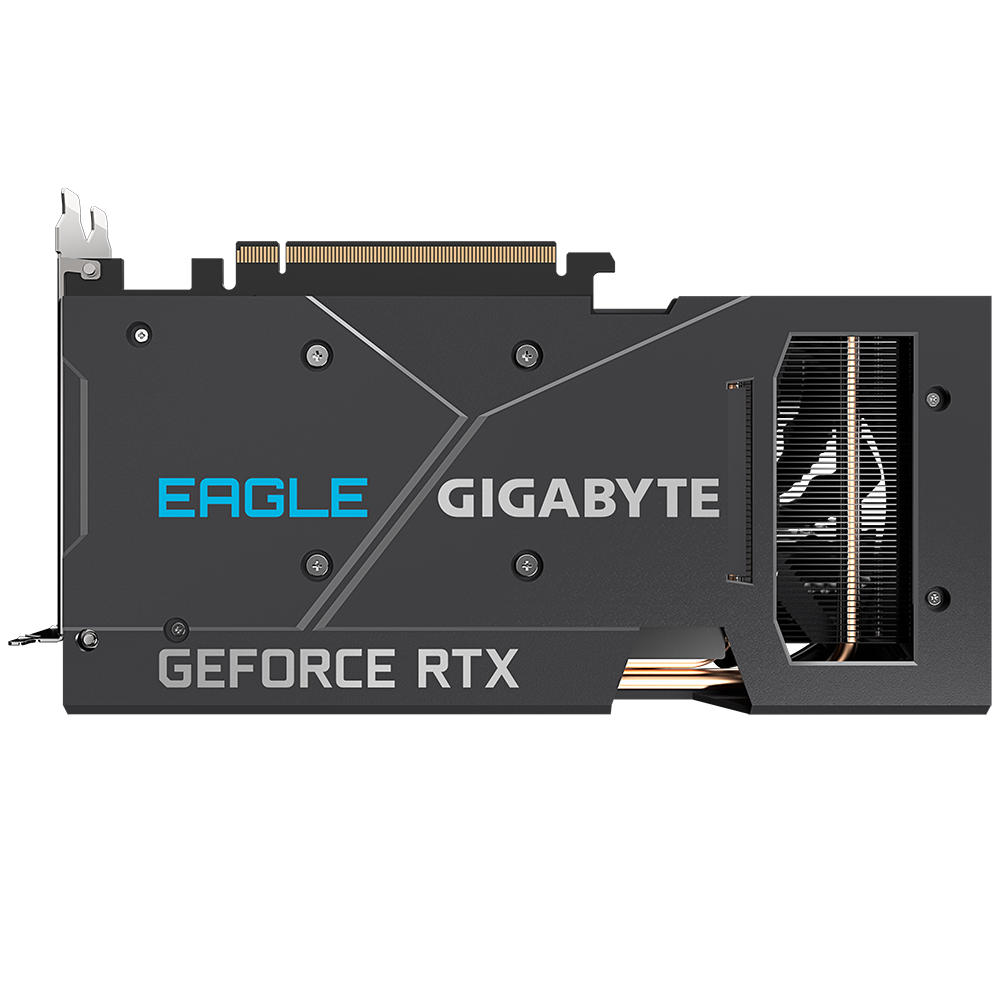

Protection back plate
Limited Hash Rate version

CORE CLOCK
1807 MHz (Reference Card: 1777 MHz)

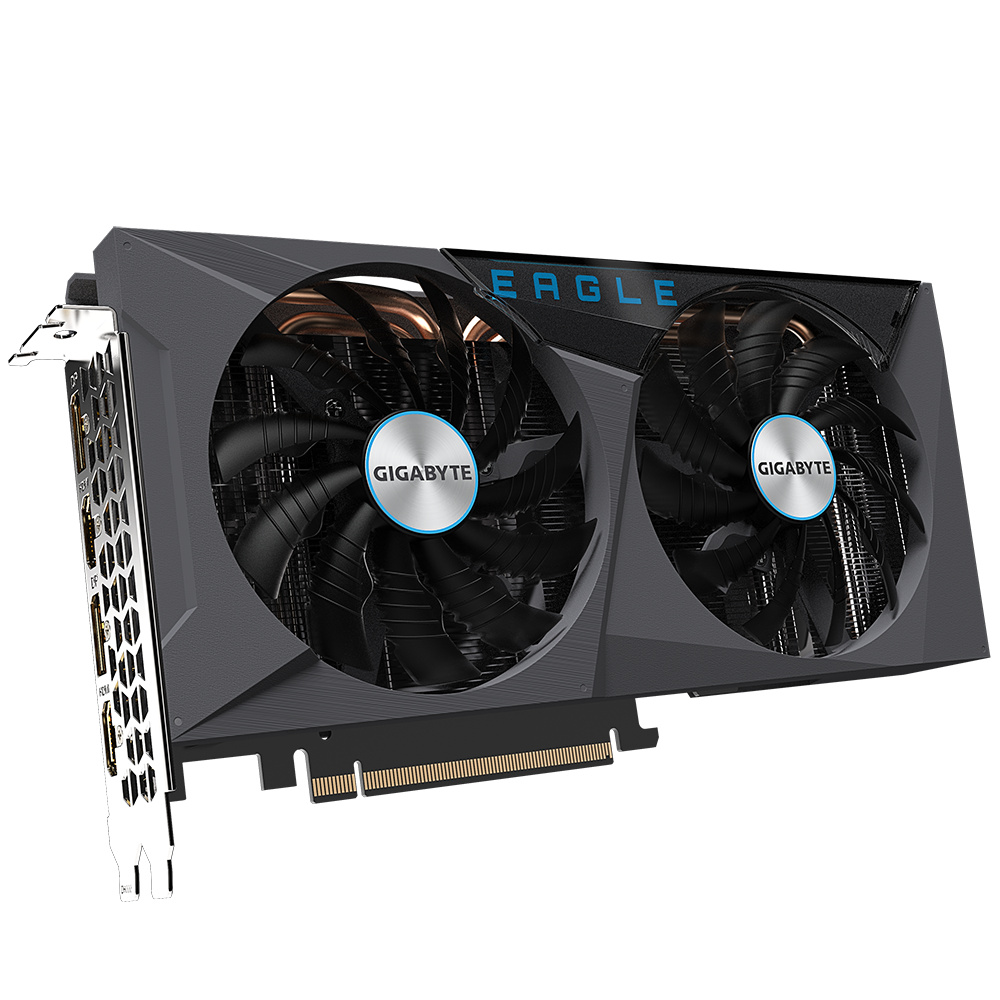

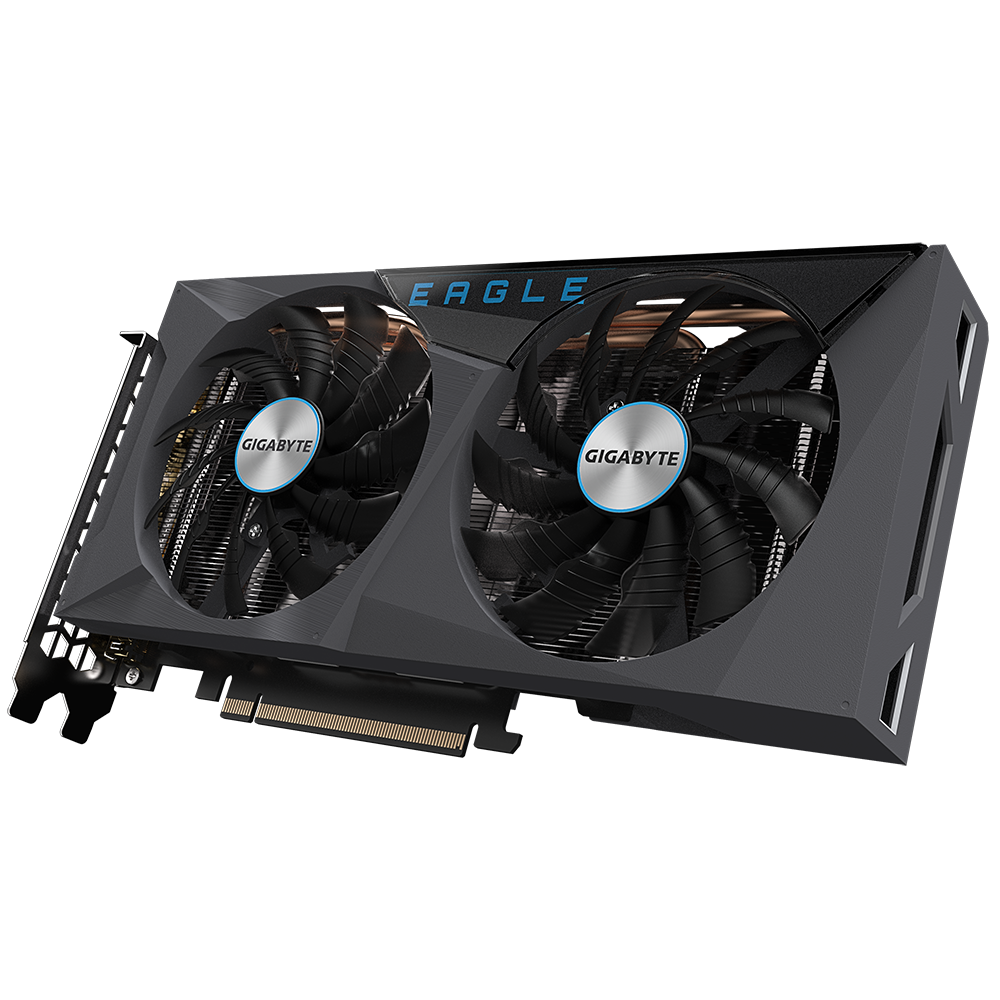

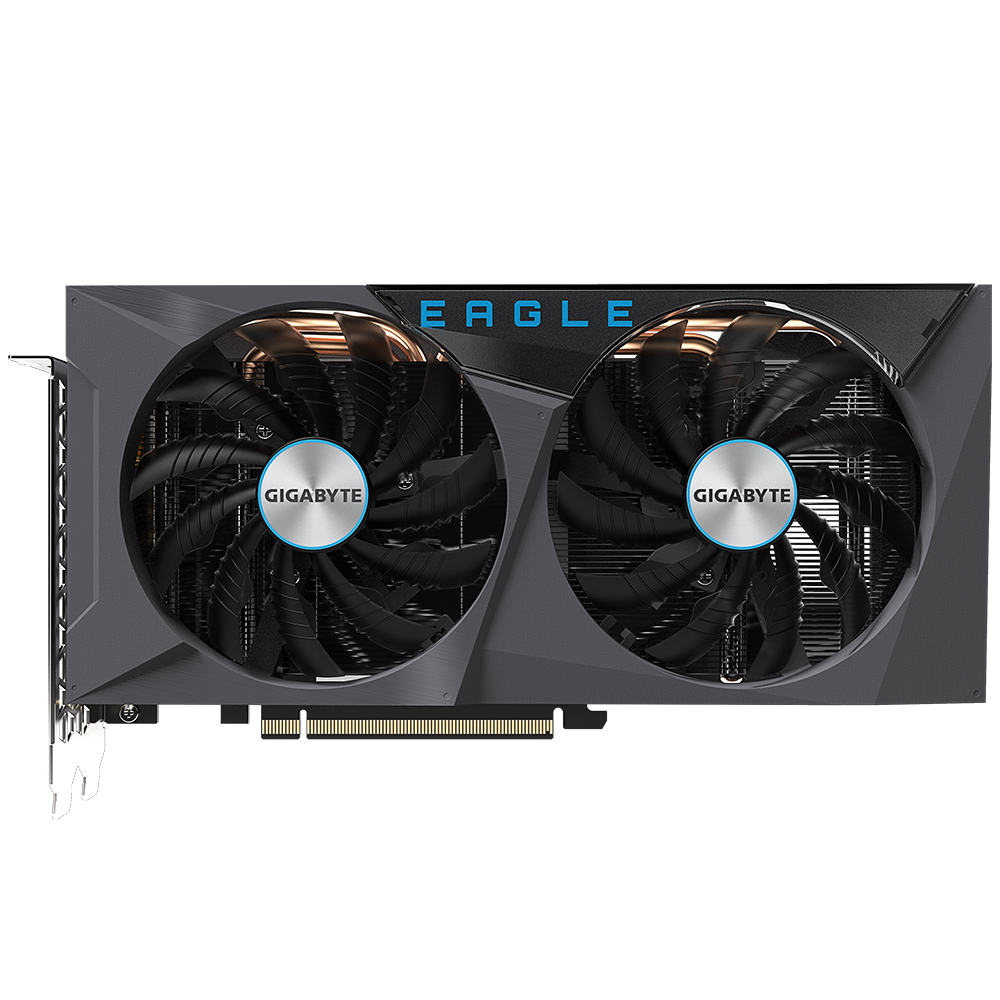

WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features 2X100mm unique blade fans, alternate spinning, 4 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.


ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.

SMOOTH AIRFLOW

GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.


3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.


UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.


GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.


SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.

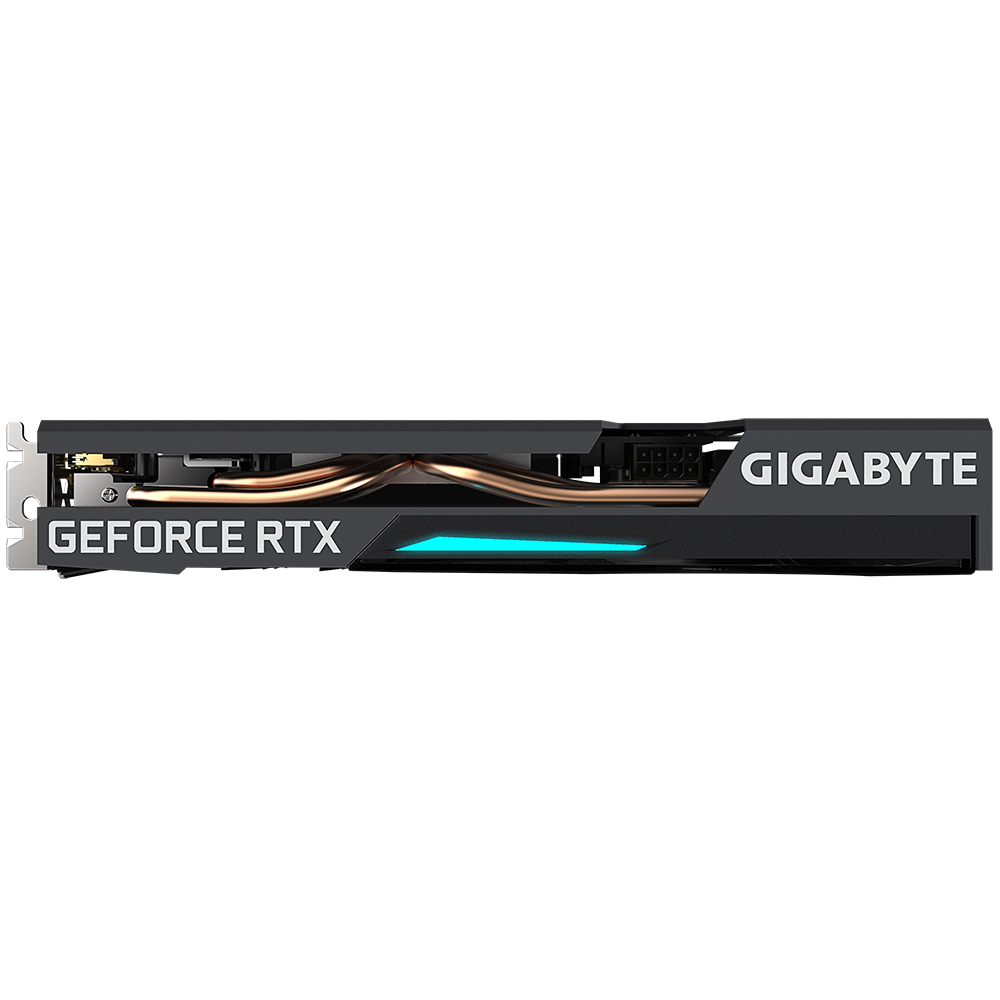

HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

Graphics Processing
GeForce RTX^TM 3060

Core Clock
1807 MHz (Reference Card: 1777 MHz)

CUDA Cores
3584

Memory Clock
15000 MHz

Memory Size
12 GB

Memory Type
GDDR6

Memory Bus
192 bit

Memory Bandwidth (GB/sec)
360 GB/s

Card Bus
PCI-E 4.0 x 16

Digital max resolution
7680x4320

Multi-view
4

PCB Form
ATX

DirectX
12 Ultimate

OpenGL
4.6

Recommended PSU
550W

Power Connectors
8 Pin x1

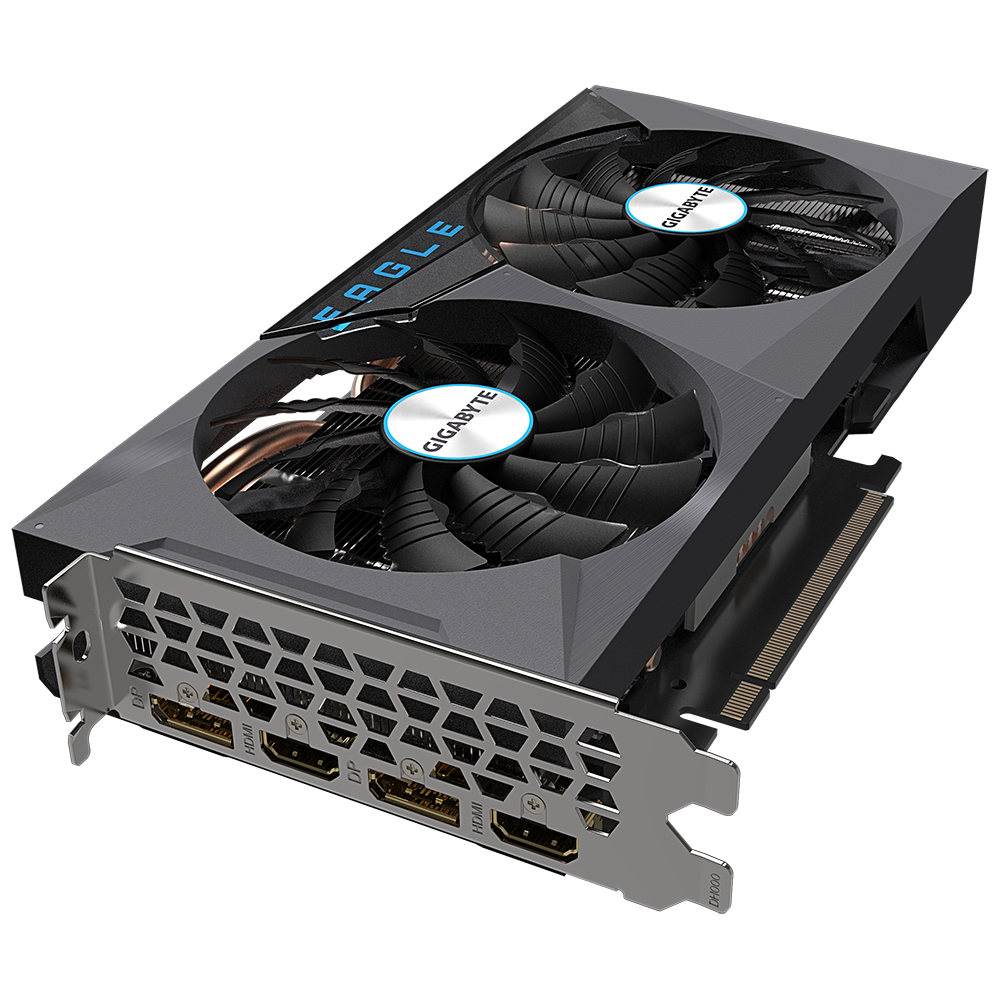

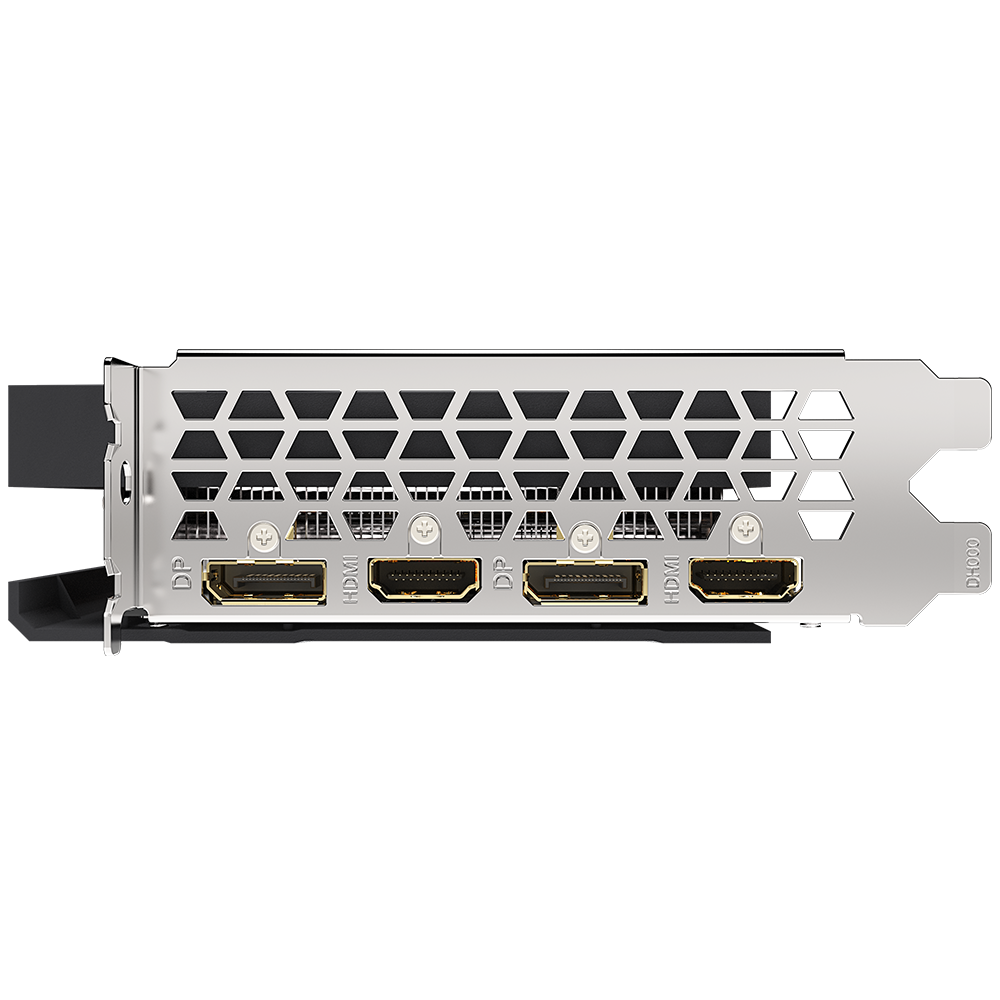

Output
DisplayPort 1.4a x2
HDMI 2.1 x2

SLI Support
N/A

Accessories
Quick Guide

Item Dimension (L inchxW inchxH inch)
10 x 5 x 2

Weight
2.20 lb

Warranty Information
3 Years

GV-N3060EAGLE OC-12GD R2

889523028612
