• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores: Up to 2X ray tracing performance
• Powered by GeForce RTX™ 4080 16GB
• Integrated with 16GB GDDR6X 256-bit memory interface
• WINDFORCE Cooling System
• RGB Fusion
• Dual BIOS

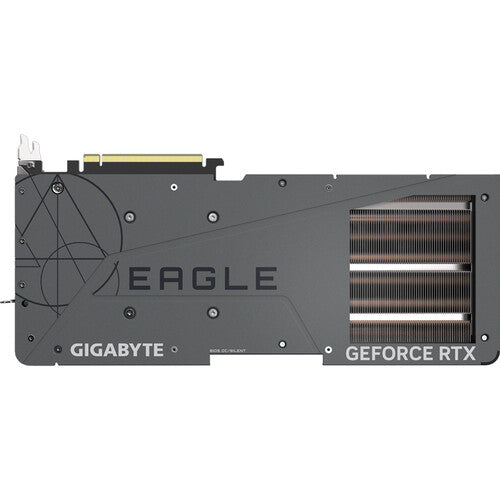

• Protection metal back plate
• Anti-sag bracket
CORE CLOCK 2520 MHz (Reference Card: 2505 MHz)
WINDFORCE COOLING SYSTEM The WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 10 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
Graphics Processing GeForce RTXTM 4080
Core Clock 2520 MHz (Reference Card: 2505 MHz)
CUDA Cores 9728
Memory Clock 22.4 Gbps
Memory Size 16 GB
Memory Type GDDR6X
Memory Bus 256 bit
Card Bus PCI-E 4.0 x 16
Digital max resolution 7680x4320
Multi-view 4
PCB Form ATX
DirectX 12 Ultimate
OpenGL 4.6
Recommended PSU 850W
Power Connectors 16 Pin x1

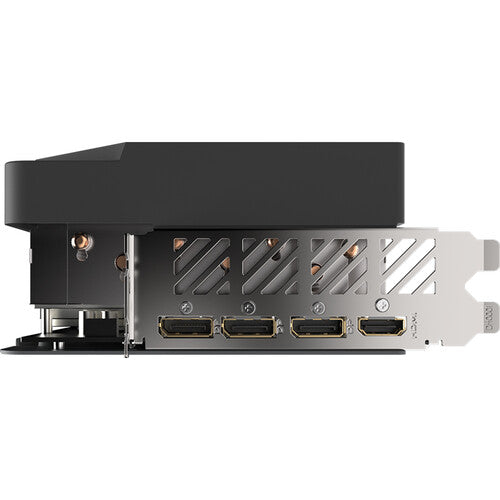

Output DisplayPort 1.4a x3 HDMI 2.1 x1
Accessories 1. Quick guide 2. Anti-sag bracket 3. Anti-sag bracket installation guide 4. One 16 pin to triple 8-pin power adaptor
Item Dimension (L inch x W inch x H inch) 18 x 11 x 5
