• Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores: Up to 2X ray tracing performance
• Powered by GeForce RTX™ 4070 Ti
• Integrated with 12GB GDDR6X 192bit memory interface
• WINDFORCE Cooling System
• RGB Fusion
• Dual BIOS

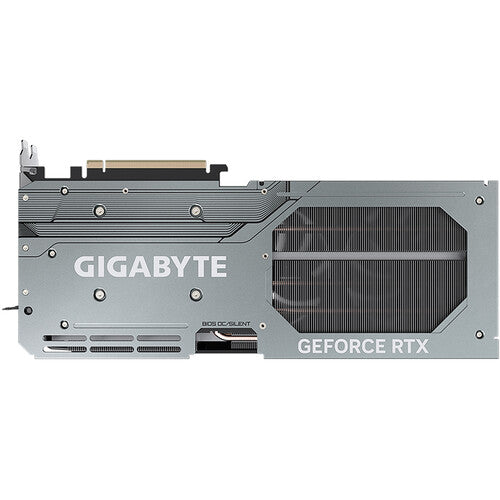

• Protection metal back plate
• Anti-sag bracket

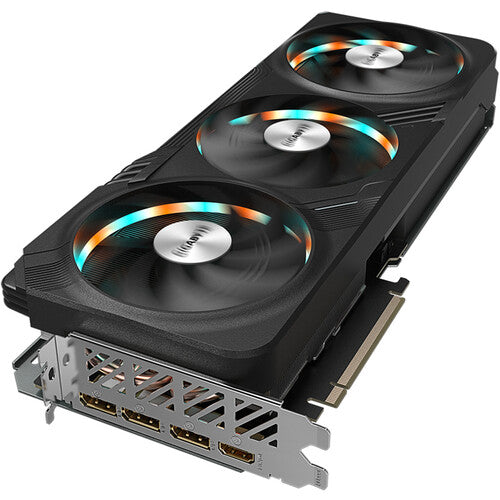

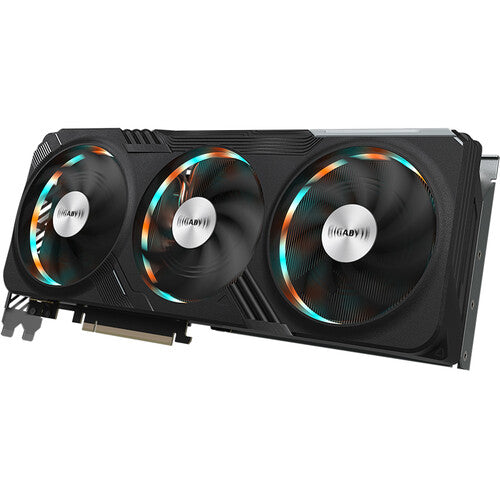

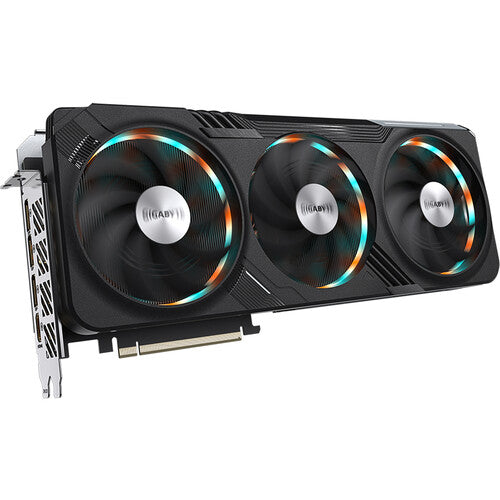

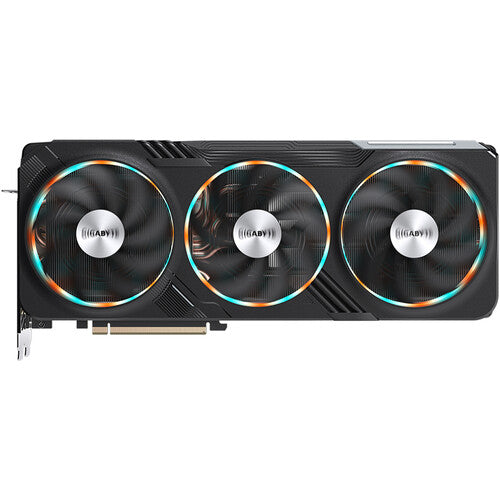

WINDFORCE COOLING SYSTEM The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

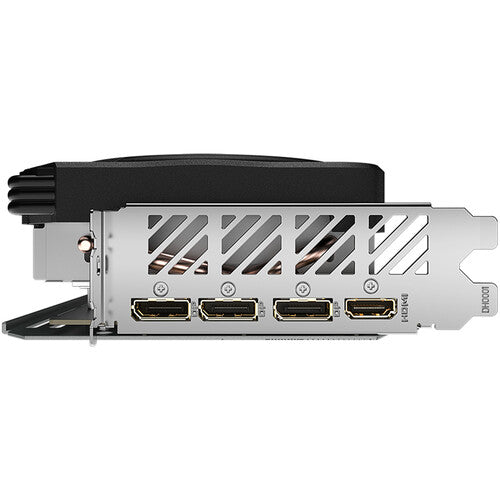

Graphics Processing GeForce RTXTM 4070 Ti Core Clock 2640 MHz (Reference card : 2610 MHz) CUDA Cores 7680 Memory Clock 21 Gbps Memory Size 12 GB Memory Type GDDR6X Memory Bus 192 bit Card Bus PCI-E 4.0 Digital max resolution 7680x4320 Multi-view 4 PCB Form ATX DirectX 12 Ultimate OpenGL 4.6 Recommended PSU 750W Power Connectors 16 pin x1 Output DisplayPort 1.4 x3 HDMI 2.1 x1 Accessories 1. Quick guide 2. Warranty registration 3. Anti-sag bracket 4. Anti-sag bracket installation guide 5. One 16-pin to two 8-pin power adaptor Item Dimension (L inchxW inchxH inch) 16 x 9 x 4
