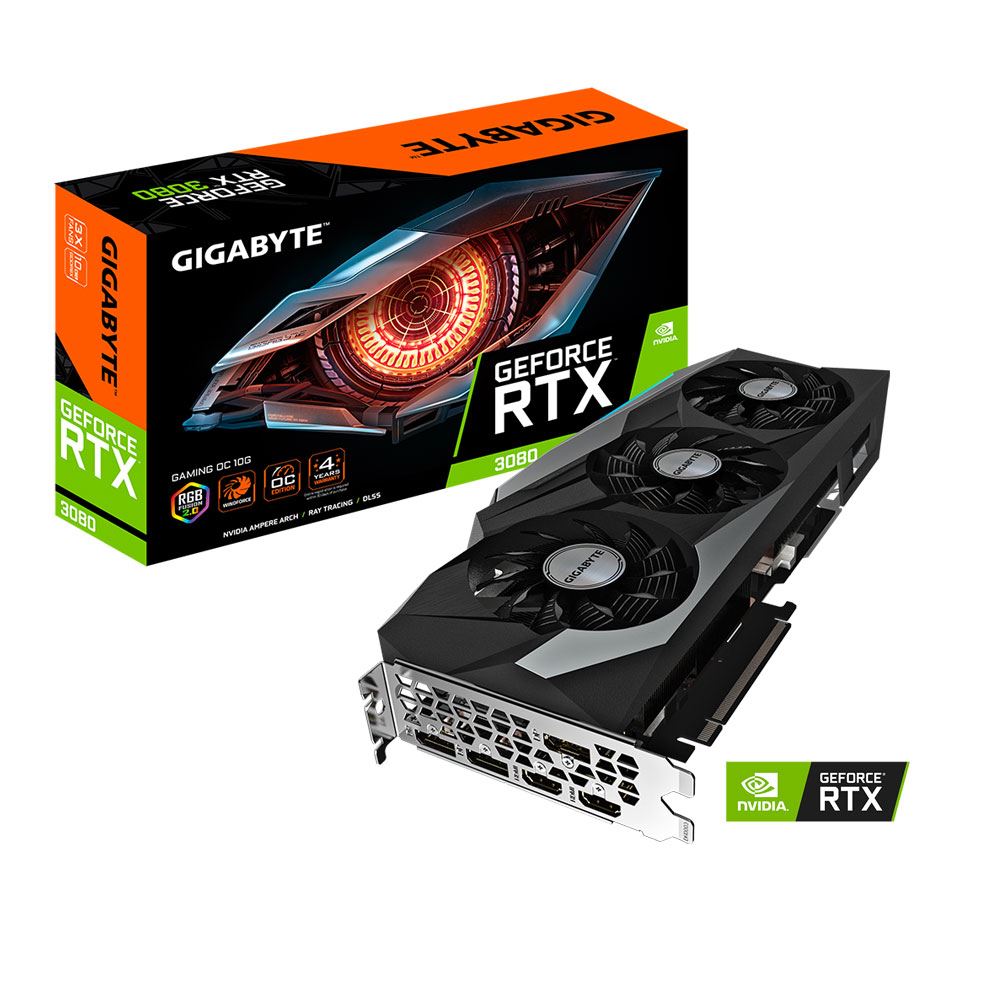

Gigabyte GeForce RTX 3080 GAMING OC 10GB GDDR6X Graphics Card

FEATURES
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores

3rd Generation Tensor Cores
Powered by GeForce RTX™ 3080
Integrated with 10GB GDDR6X 320-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans

RGB Fusion 2.0
Protection metal back plate
LHR (Lite Hash Rate) version

Core Clock
1800 MHz (Reference Card: 1710 MHz)

WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 2x 90mm and 1X80mm unique blade fans, alternate spinning, 7 composite copper heat pipes, large copper plate direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.

SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.


UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.

LARGE COPPER PLATE & HEAT-PIPE
With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.

Graphics Processing
GeForce RTX^TM 3080
Core Clock
1800 MHz (Reference Card: 1710 MHz)
CUDA Cores
8704
Memory Clock
19000 MHz
Memory Size
10 GB
Memory Bus
320 bit
Memory Bandwidth (GB/sec)
760 GB/s
Card Bus
PCI-E 4.0 x 16
Digital max resolution
7680x4320
Multi-view
4
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
750W
Power Connectors
8 pin x 2
Output
DisplayPort 1.4a x 3
HDMI 2.1 x 2
SLI Support
N/A
Accessories
Quick guide
Item Dimension (L inchxW inchxH inch)
10 x 16 x 4

Weight
5.00 lb

GV-N3080GAMING OC-10GD (rev. 2.0)

889523029299
