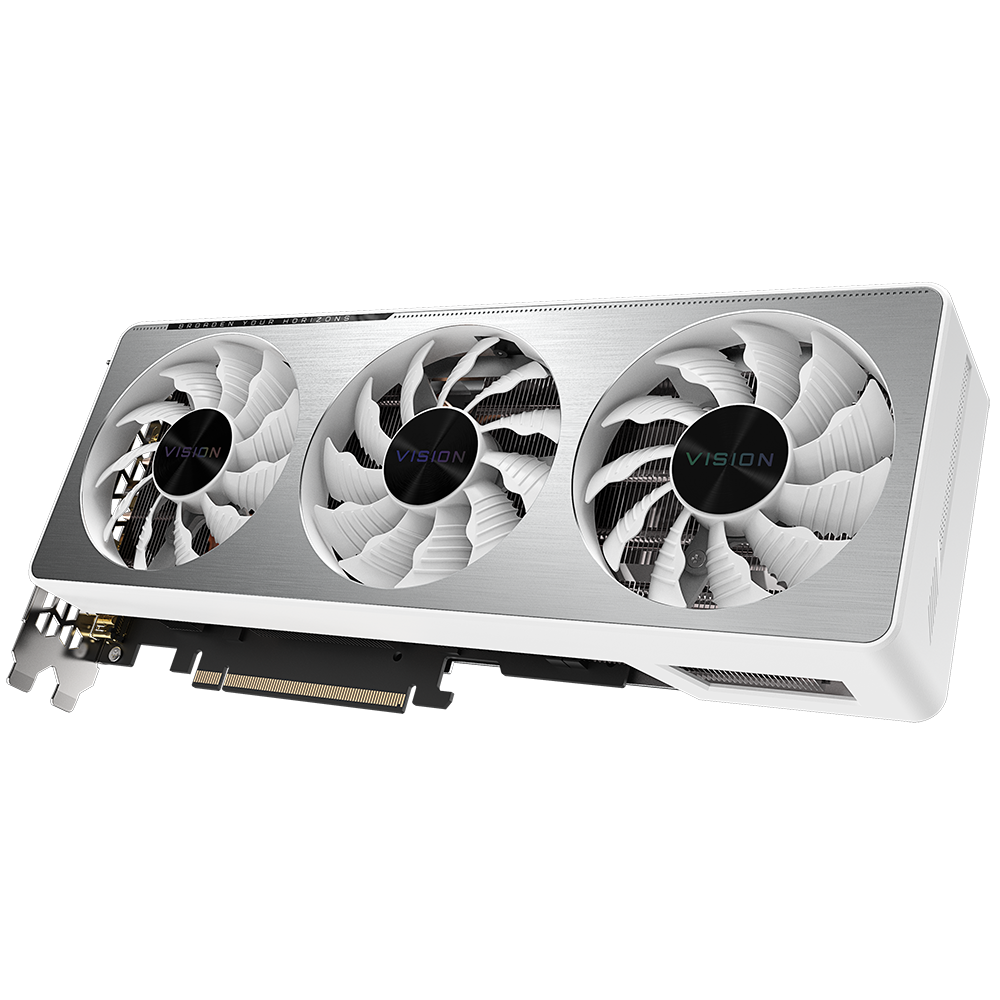

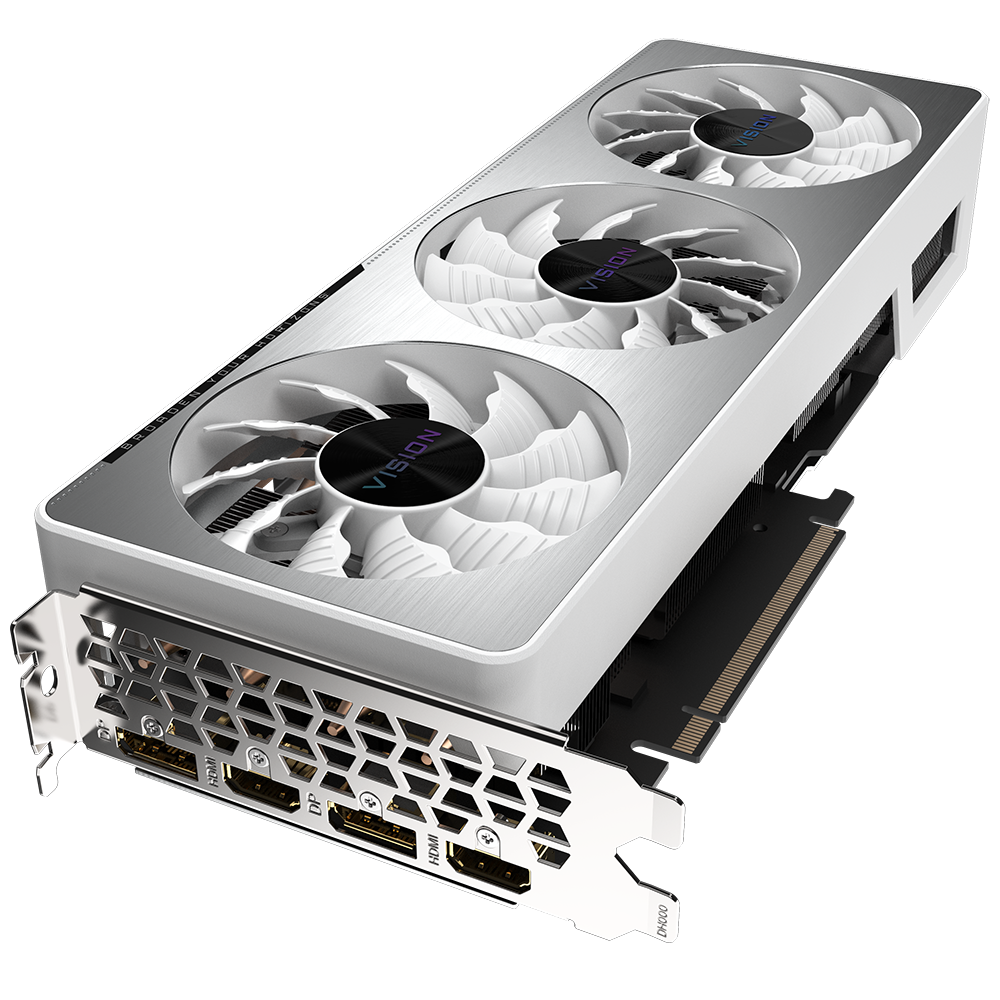

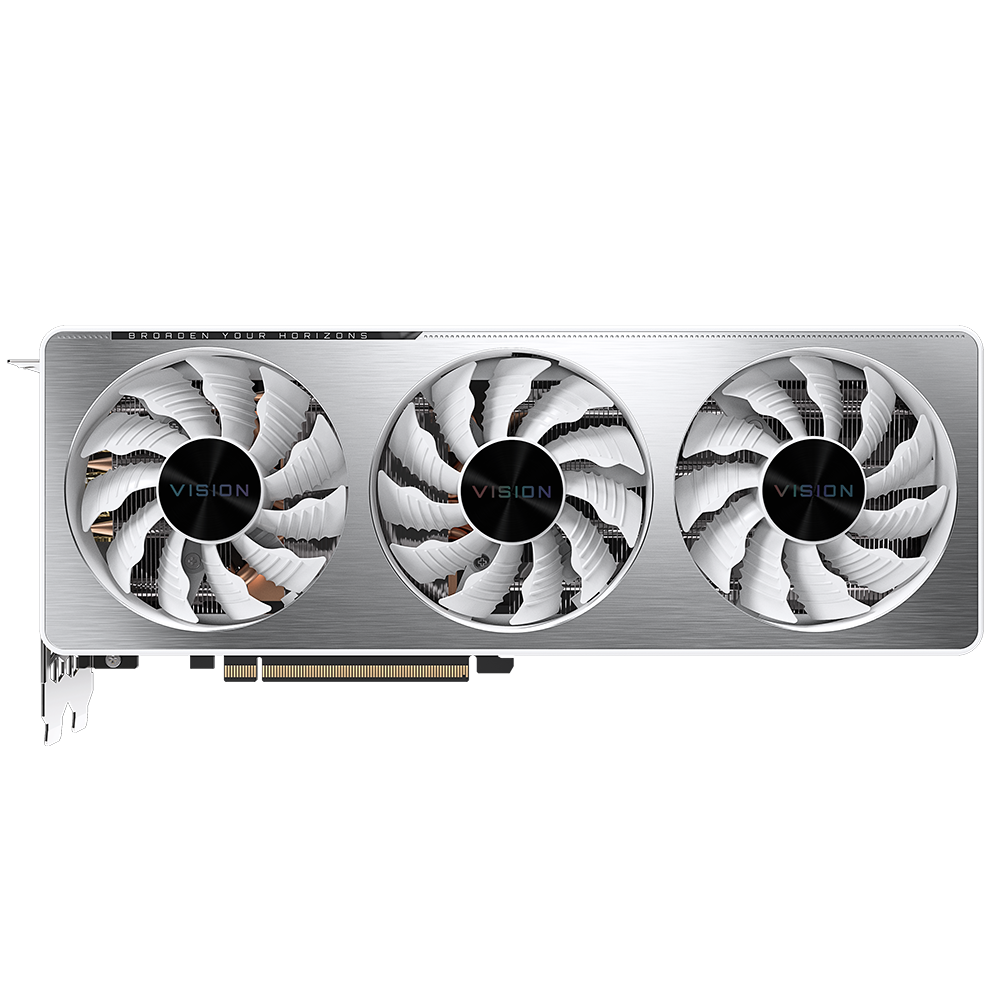

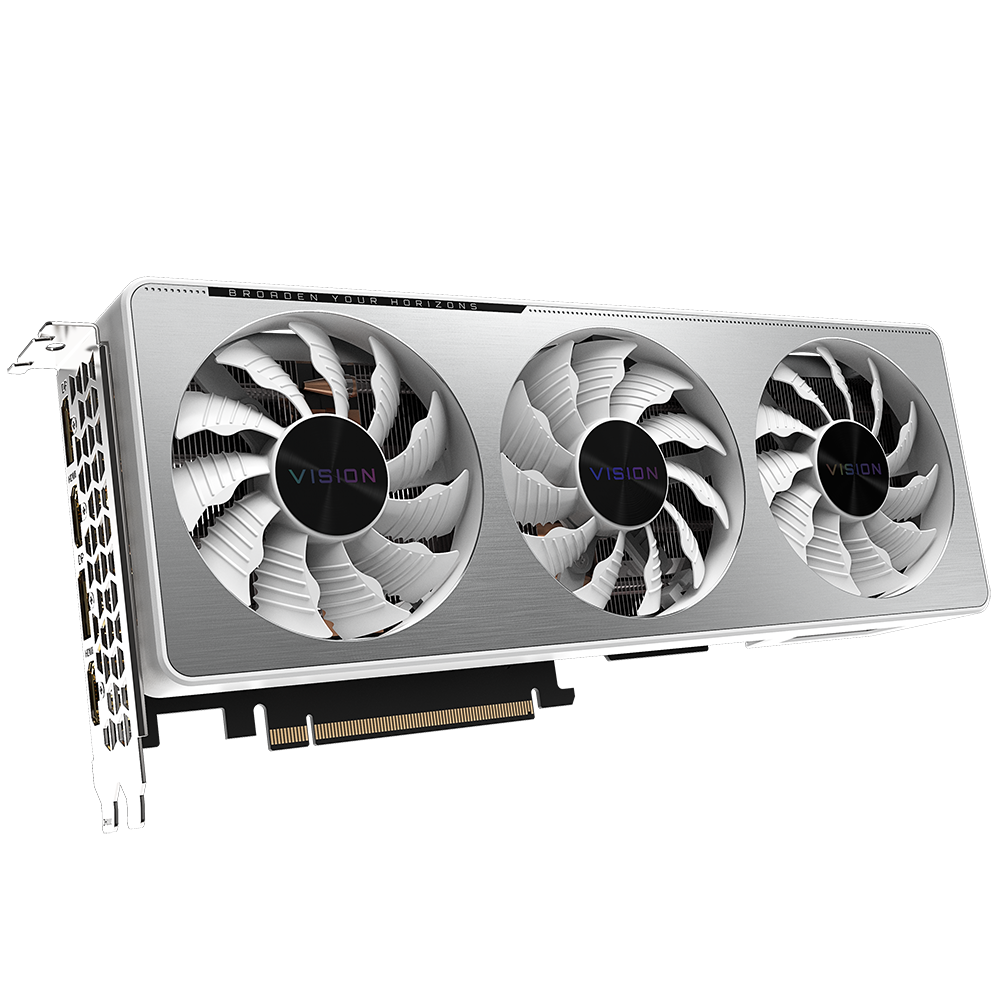

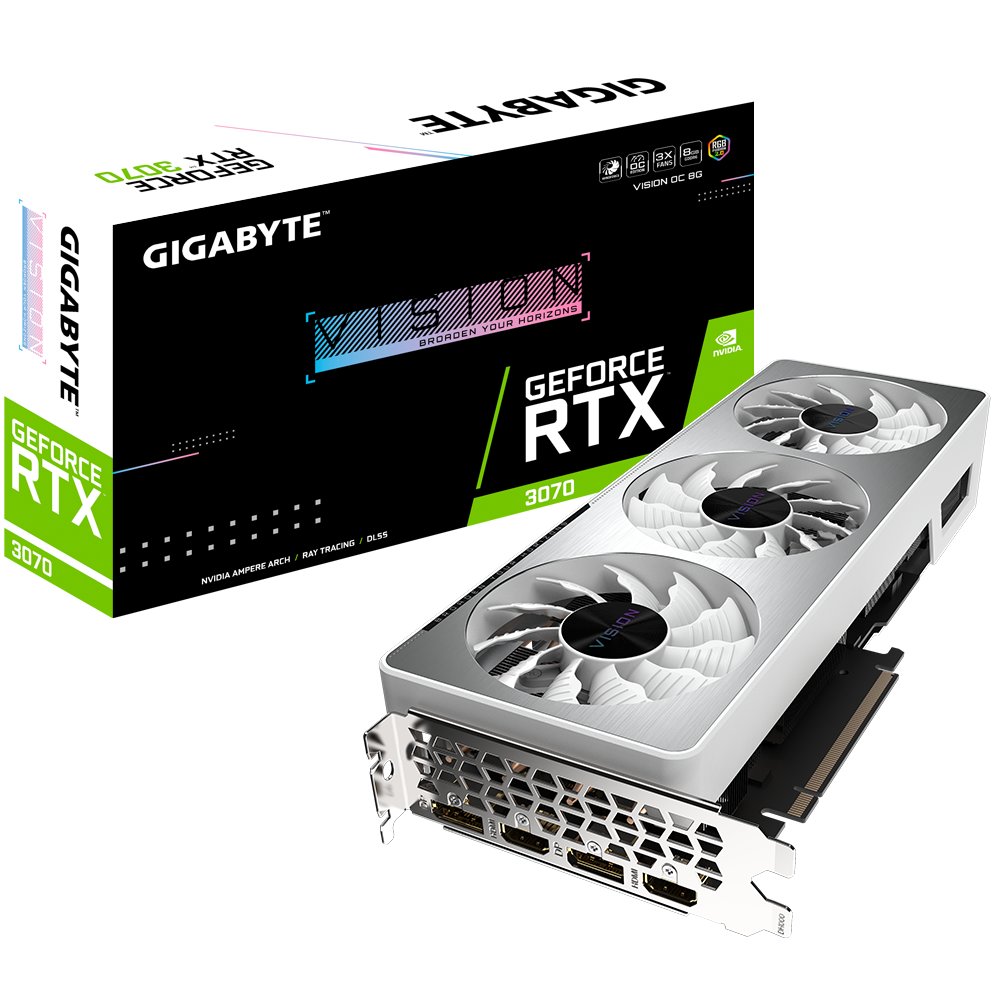

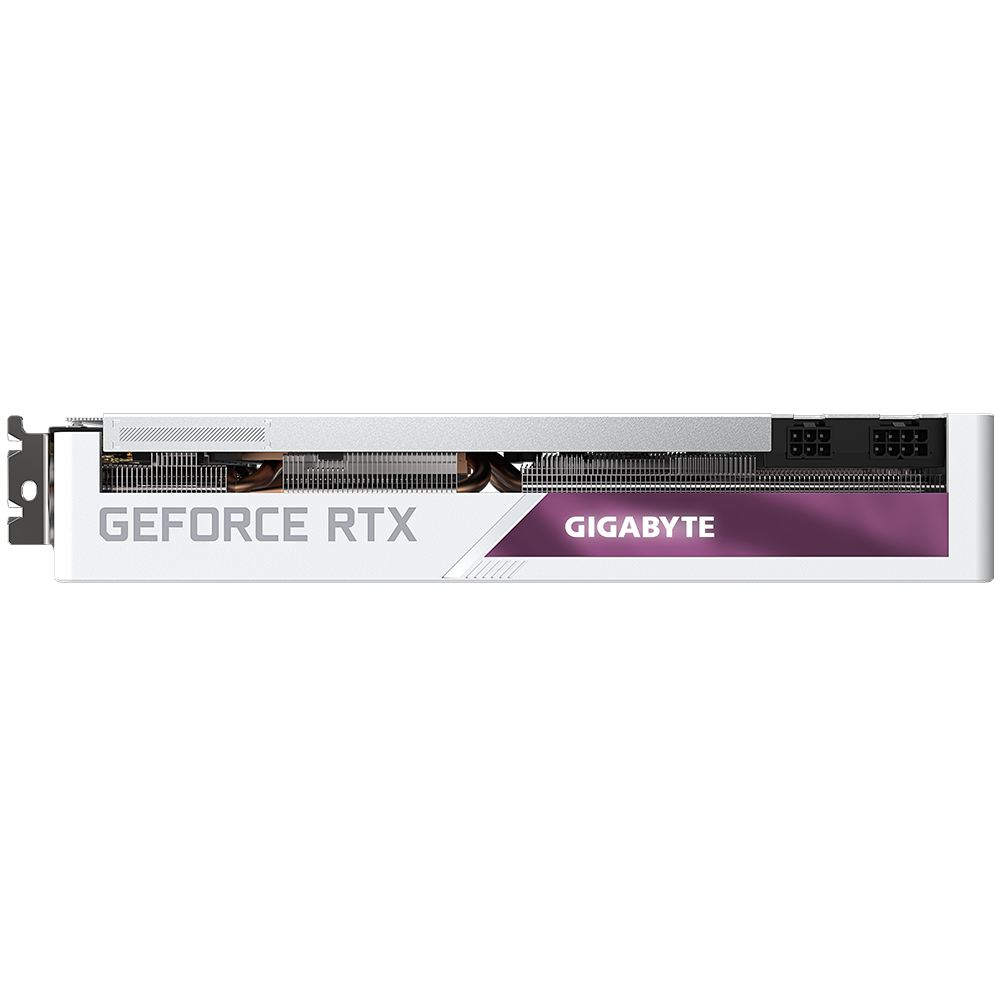

Gigabyte GeForce RTX 3070 VISION OC 8GB GDDR6 Graphics Card

FEATURES
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores

3rd Generation Tensor Cores
Powered by GeForce RTX™ 3070
Integrated with 8GB GDDR6 256-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
RGB Fusion 2.0

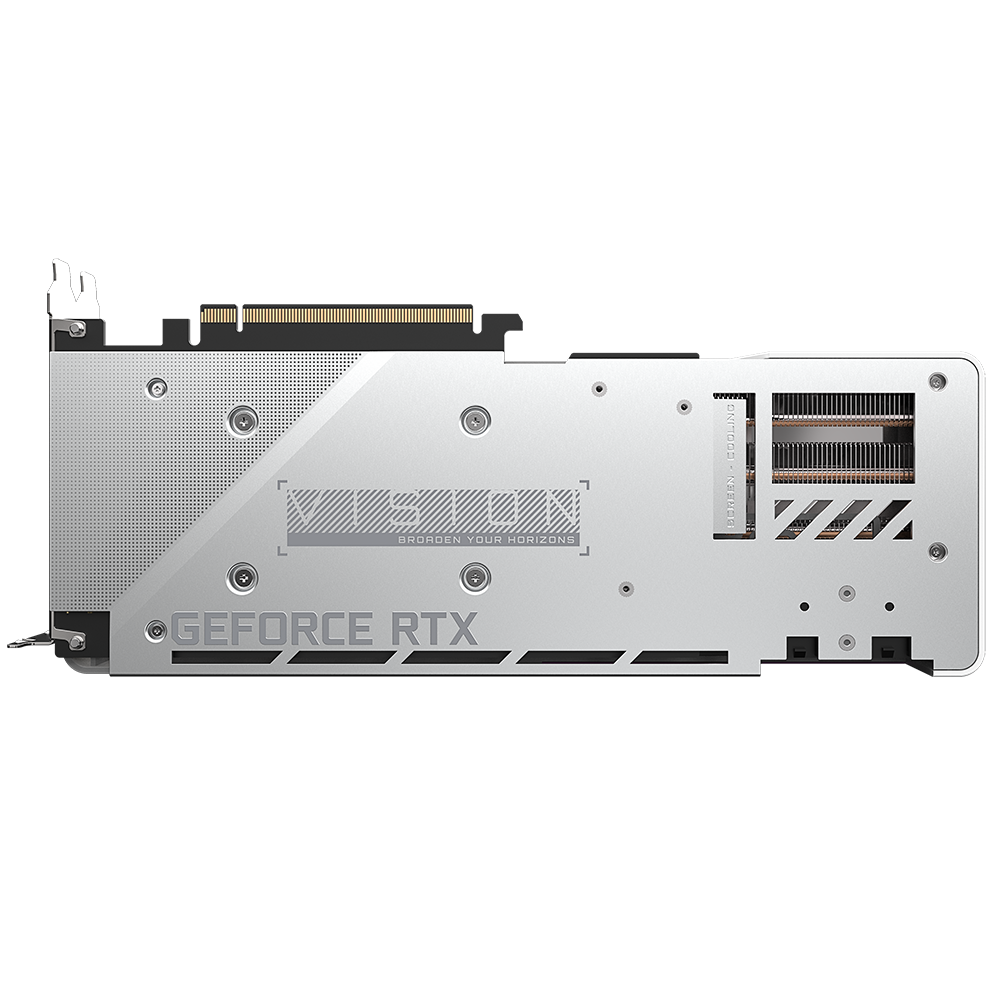

Protection metal back plate
LHR (Lite Hash Rate) version


CORE CLOCK
1815 MHz (Reference Card: 1725 MHz)


CREATE YOUR WORK FASTER THAN EVER
Powerful GeForce RTX™ 30 VISION series accelerates your work with incredible boosts in performance. Whether you are doing VIDEO EDITING、3D ANIMATION、PHOTOGRAPHY、GRAPHIC DESIGN、ARCHITECTURAL VISUALIZATION or BROADCASTING, it can save you a lot of time.


WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3X80mm unique blade fans, alternate spinning, 5 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.


ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.


UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.


GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.


SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.

HEAT PIPES DIRECT TOUCH

The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

Graphics Processing
GeForce RTX^TM 3070
Core Clock
1815 MHz (Reference Card: 1725 MHz)
CUDA Cores
5888
Memory Clock
14000 MHz
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
256 bit
Memory Bandwidth (GB/sec)
448 GB/s
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320
Multi-view
4
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
650W
Power Connectors
8 pin x1 + 6 pin x1

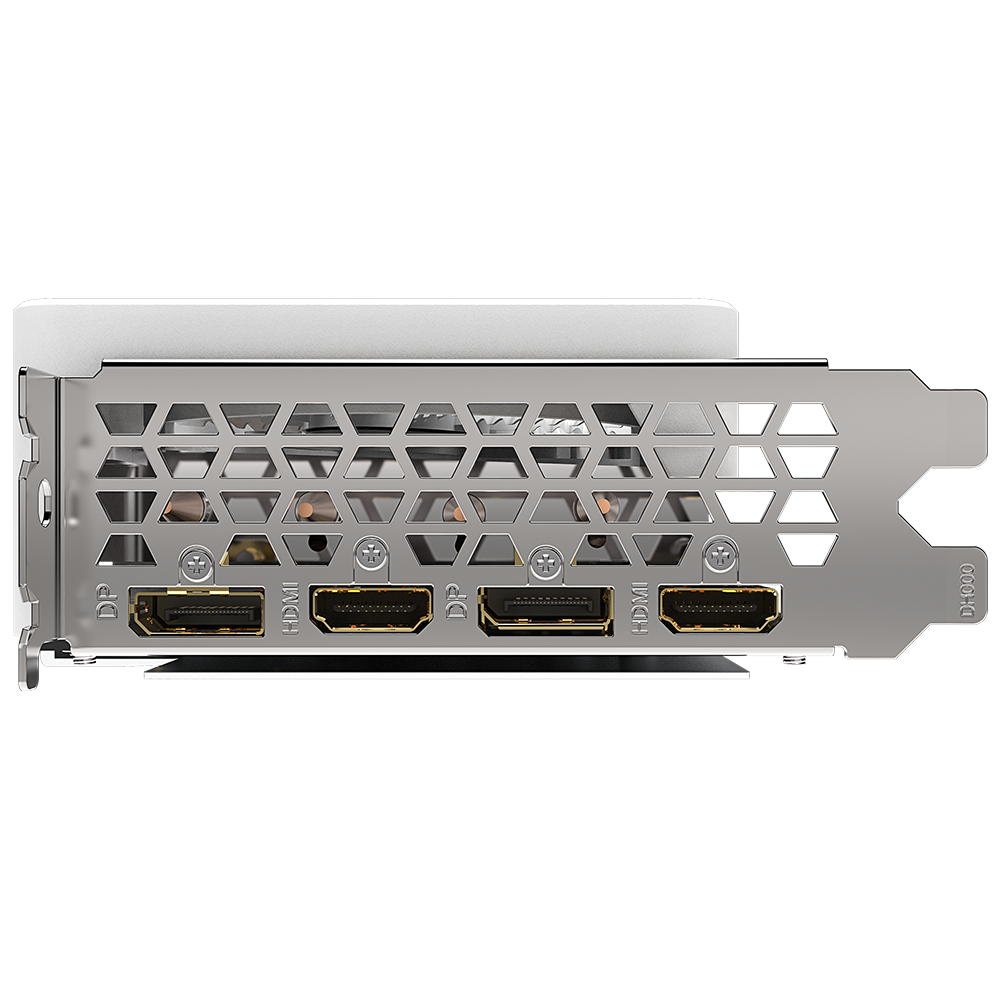

Output
DisplayPort 1.4a x2
HDMI 2.1 x2
SLI Support
N/A
Accessories
Quick Guide
Item Dimension (L inchxW inchxH inch)
16 x 9 x 4

Weight
5.00 lb

Warranty Information
3 Years

GV-N3070VISION OC-8GD R2
