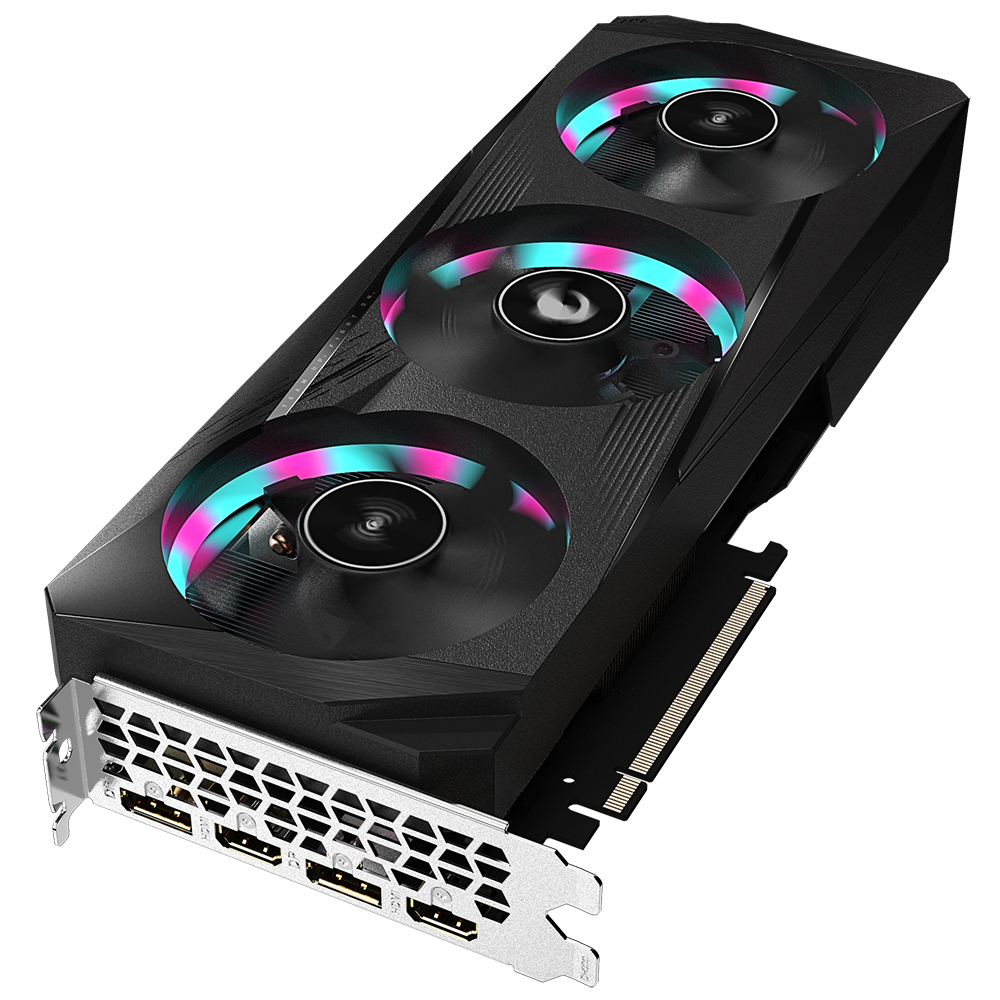

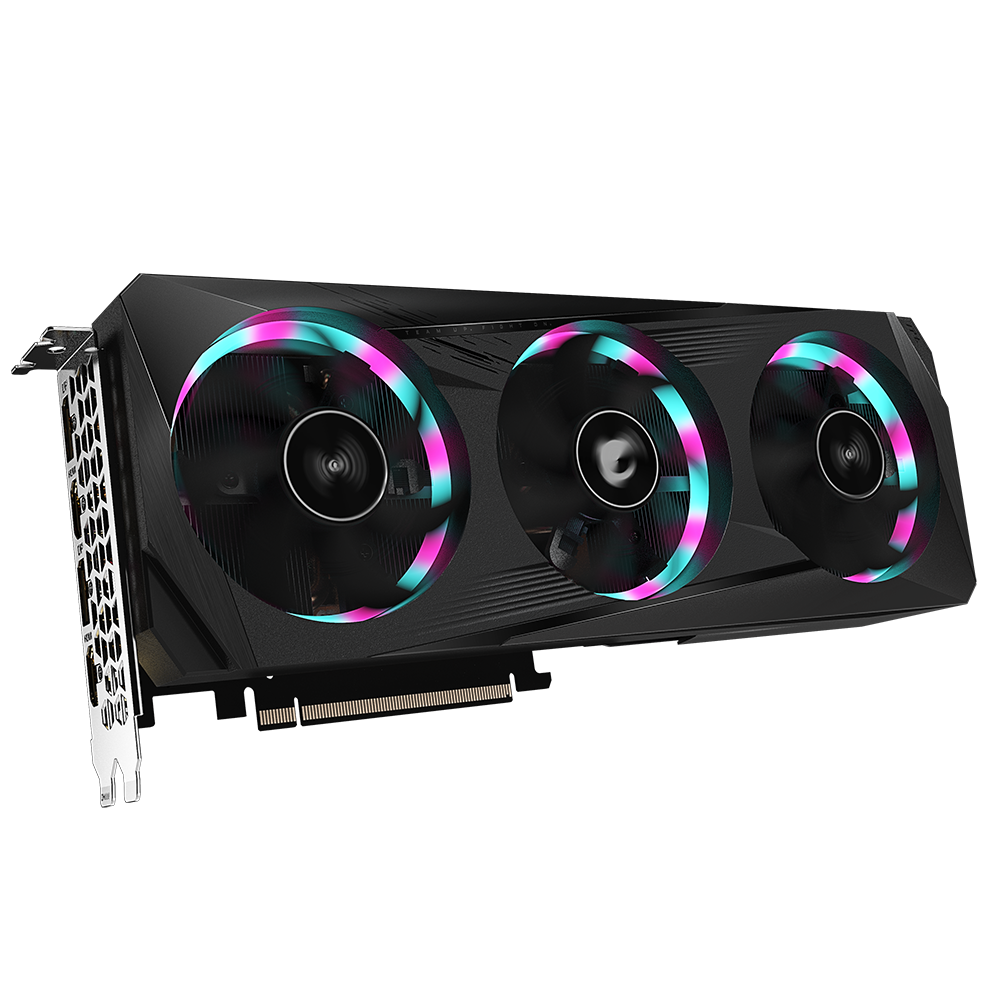

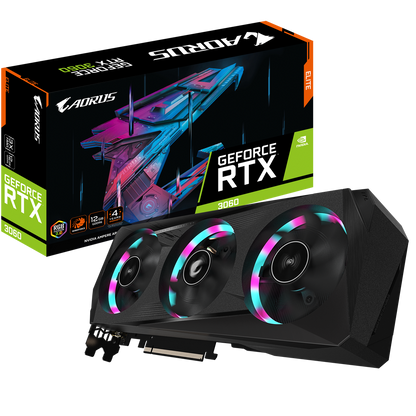

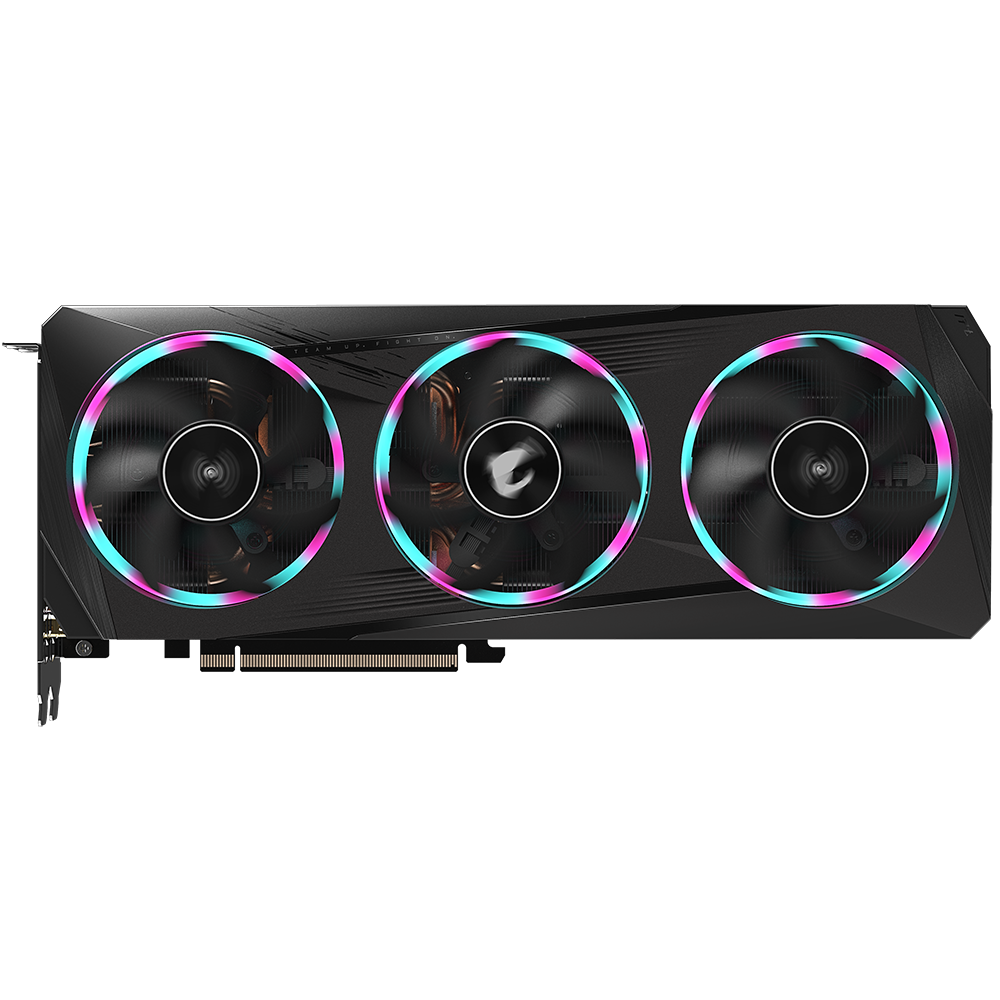

Gigabyte AORUS GeForce RTX 3060 ELITE 12GB (rev. 2.0) Graphics Cards
Gigabyte AORUS GeForce RTX 3060 ELITE 12GB (rev. 2.0) Graphics Cards
Couldn't load pickup availability

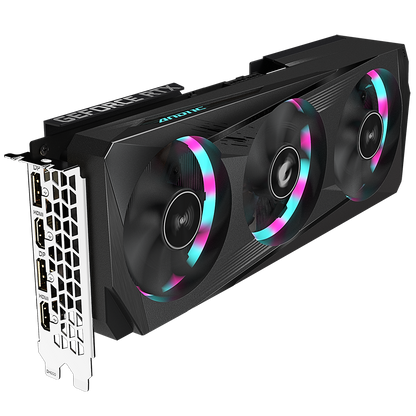

Gigabyte AORUS GeForce RTX 3060 ELITE 12GB (rev. 2.0) Graphics Cards
KEY FEATURE
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3060
Integrated with 12GB GDDR6 192-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
RGB Fusion 2.0

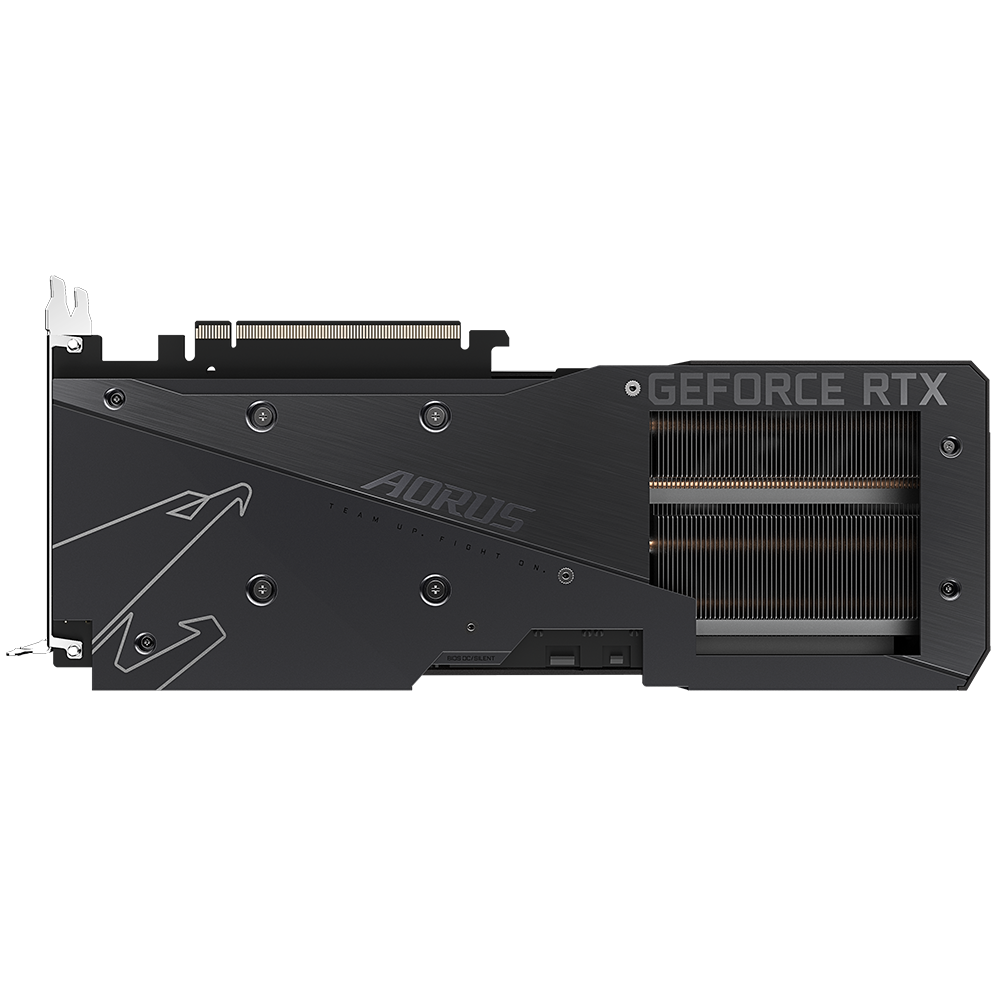

Protection metal back plate
Limited Hash Rate version

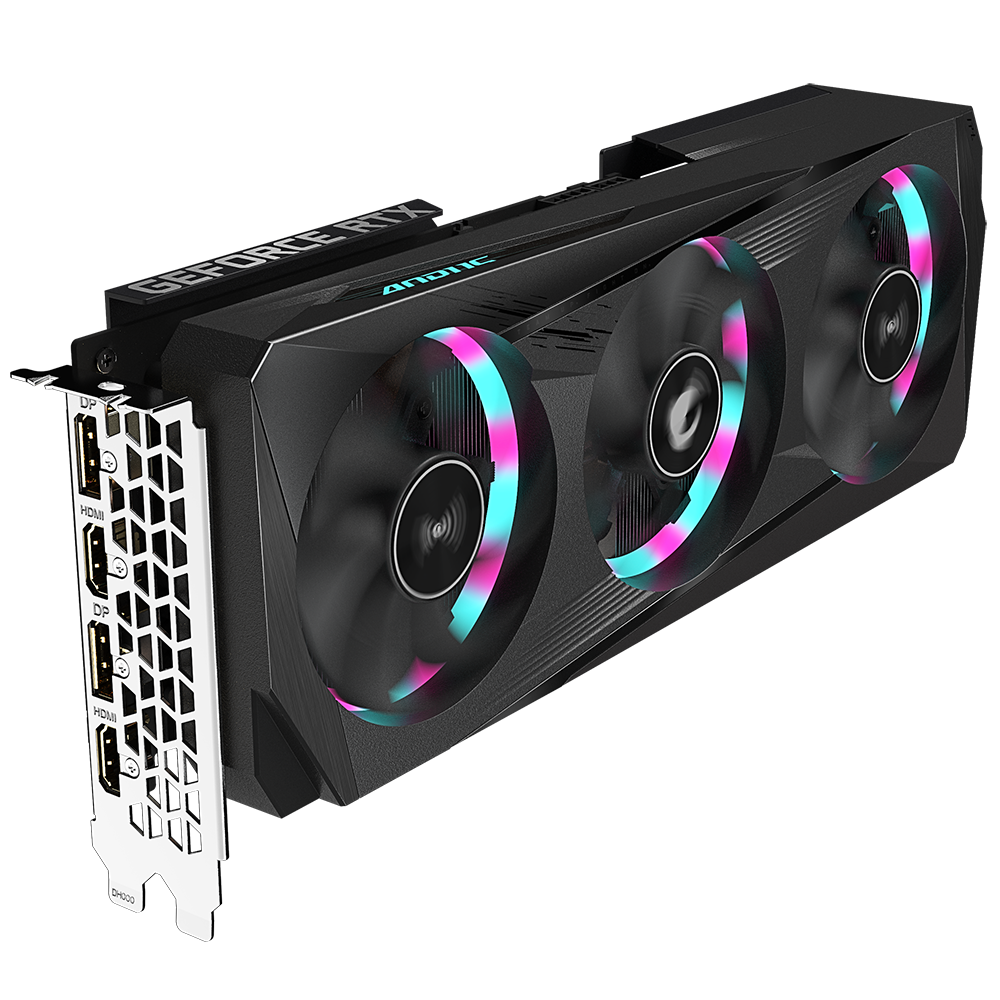

WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PERFORMANCE
GeForce RTX™ 3060 with 12G memory and 360 GB/s memory bandwidth has 3584 CUDA® Cores, 2nd gen ray tracing cores and 3rd gen tensor cores operating in parallel. It is the most suitable solution for those who are gaming, rendering, and developing A.I. technology.
EXCELLENCE
Excellent circuit design with the top-grade materials, not only maximizes the excellence of the GPU, but also maintains stable and long-life operation.
Graphics Processing
GeForce RTXTM 3060
Core Clock
1867 MHz (Reference Card: 1777 MHz)
CUDA Cores
3584
Memory Clock
15000 MHz
Memory Size
12 GB
Memory Type
GDDR6
Memory Bus
192 bit
Memory Bandwidth (GB/sec)
360 GB/s
Card Bus
PCI-E 4.0 x 16
Digital max resolution
7680x4320
Multi-view
4
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
650W

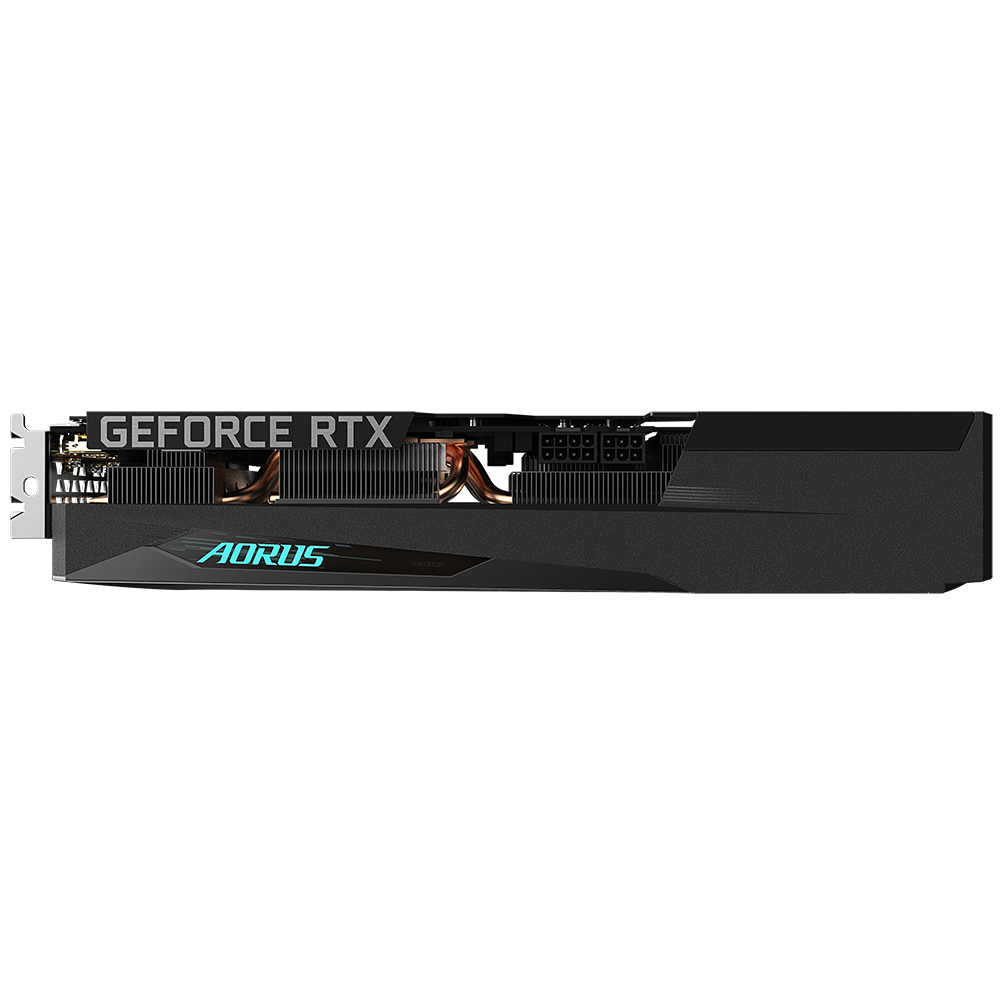

Power Connectors
8 Pin x1, 6 Pin x1

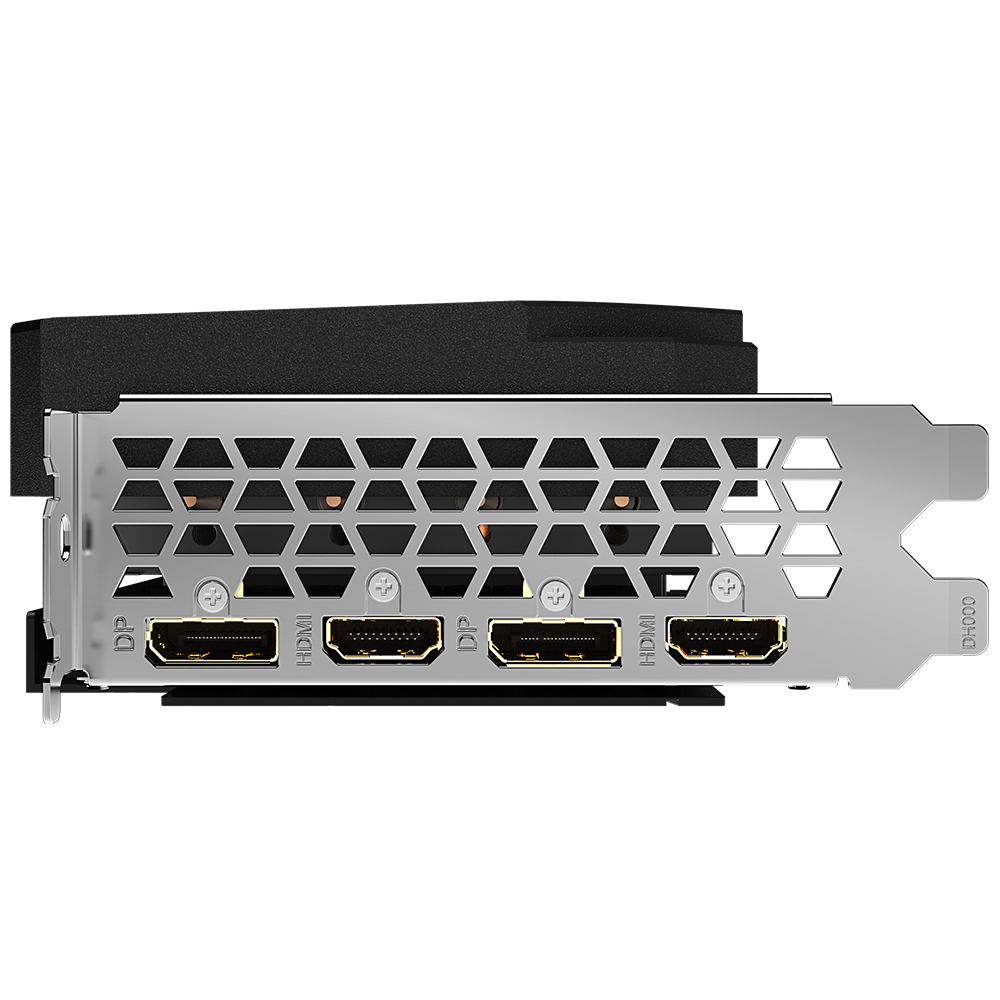

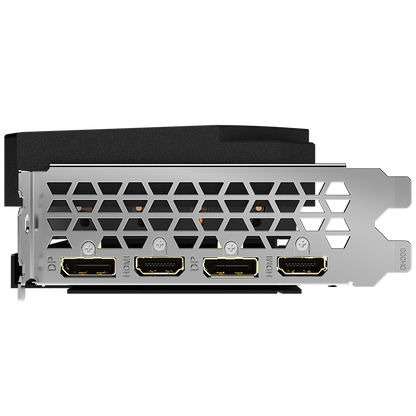

Output
DisplayPort 1.4a x2
HDMI 2.1 x2
SLI Support
N/A
Accessories
1. Quick Guide
2. Metal sticker
Item Dimension (L inchxW inchxH inch)
12 x 5 x 3
Weight
3.90 lb
Warranty Information
3 Years
