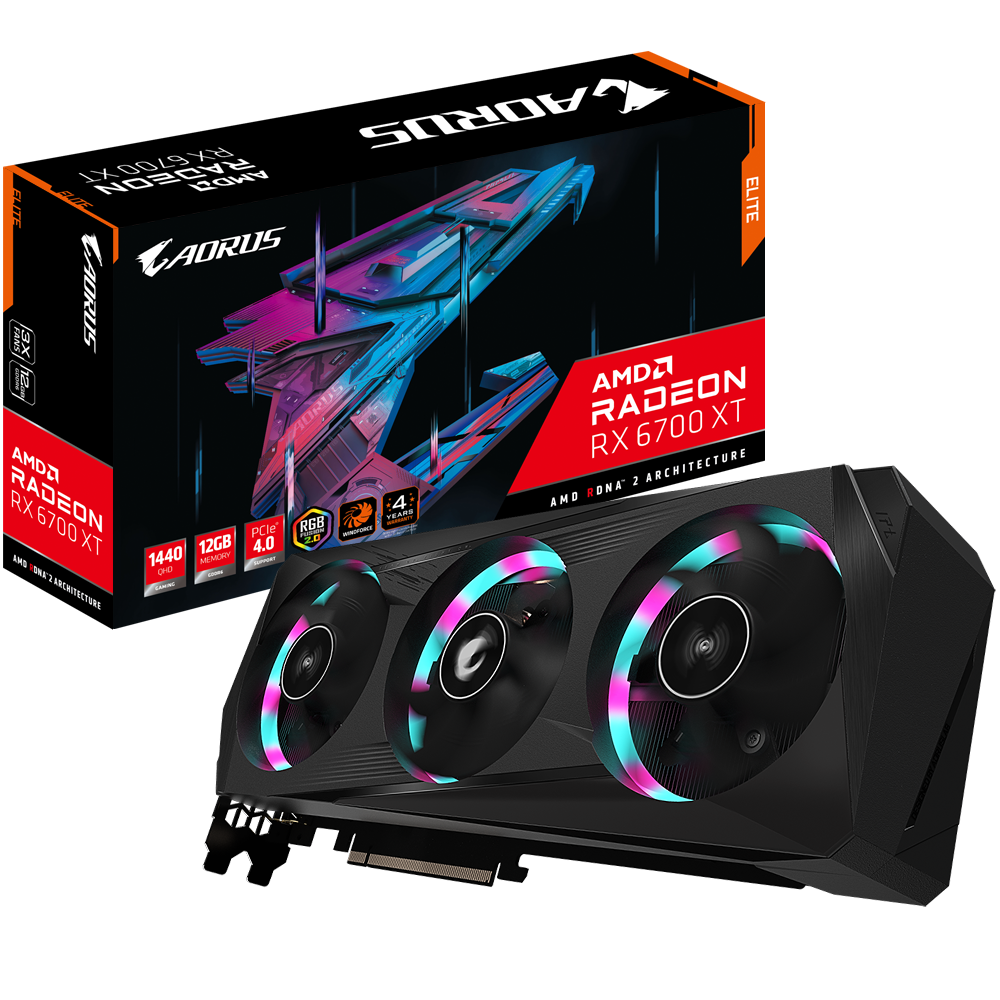

Gigabyte AMD Radeon RX 6700 XT AORUS ELITE 12G

KEY FEATURE
Powered by AMD RDNA™ 2 Radeon™ RX 6700 XT
Integrated with 12GB GDDR6 192-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans

Screen cooling
Graphene nano lubricant
RGB Fusion 2.0
Protection metal back plate

CORE CLOCK
Boost Clock* : up to 2622 MHz
Game Clock* : up to 2548 MHz

DESIGN CONCEPT
Neonpunk style emanates in the darkness from the glimmer of high quality metals, showcasing futuristic aesthetics in the darkness of the night.

The new era of esports has arrived.

WINDFORCE 3X COOLING SYSTEM

The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

RGB FUSION 2.0

With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

PERFORMANCE

The Radeon™ RX 6700 XT has 2560 stream processors, powerful new compute units, and the all new AMD Infinity Cache along with up to 12GB of dedicated GDDR6 memory, delivers ultra-high frame rates and serious levels of 1440p resolution gaming.

EXCELLENCE

Excellent circuit design with the top-grade materials, not only maximizes the excellence of the GPU, but also maintains stable and long-life operation. Graphics Processing
Radeon^TM RX 6700 XT
Core Clock
Boost Clock^note1 : up to 2622 MHz
Game Clock^note2: up to 2548 MHz
Stream Processors
2560
Process Technology
7 nm
Memory Clock
16000 MHz
Memory Size
12 GB
Memory Type
GDDR6
Memory Bandwidth (GB/sec)
384 GB/s
Card Bus
PCI-E 4.0 x 16
Digital max resolution
7680x4320
Multi-view
4
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
650W
Power Connectors
8 Pin x 1, 6 Pin x 1
Output
DisplayPort 1.4a x 2
HDMI 2.1 x 2
Accessories
1. Quick guide
2. Metal sticker
Note
Note1: Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
Note2: Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
Item Dimension (L inchxW inchxH inch)
16 x 10 x 4

Weight
5.00 lb

Warranty Information
4 Years(register)
