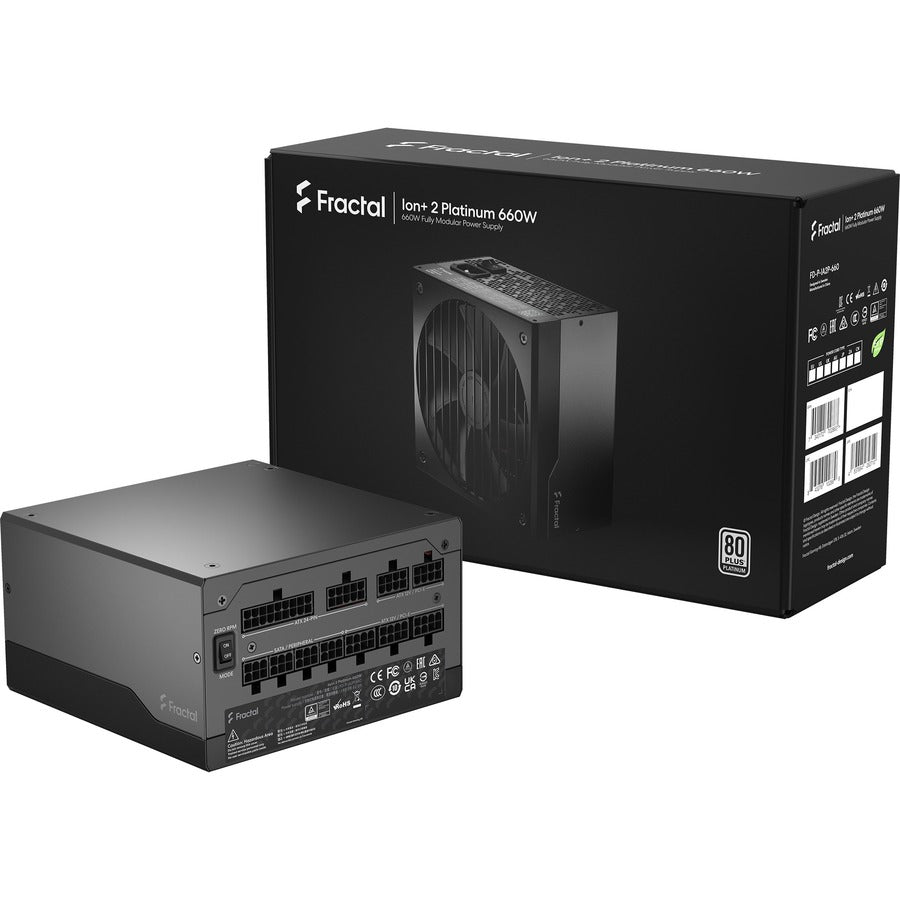

Fractal Design Ion+ 2 Platinum 660W Power Supply

Fractal Design Ion+ 2 Platinum 660W Power Supply

$177.99 USD
$177.99 USD
Sale Sold out
Shipping calculated at checkout.

Fractal Design Ion+ 2 Platinum 660W Power Supply

Internal, ATX PS/2 - 120 V AC, 230 V AC Input - 3.3 V DC @ 20 A, 5 V DC @ 20 A, 12 V DC @ 55 A, -12 V DC @ 0.3 A, 5 V DC @ 3 A Output - 660 W - 1 +12V Rails - 1 Fan(s)

The power of silence | 80 PLUS® Platinum certified

  • 80PLUS® Platinum efficiency for optimized electricity use and reduced heat generation

  • Supports the latest ATX 2.52 standard with improved start-up time and transient load response

  • Great electrical output quality with tight voltage regulation and low ripple and noise


Premium capacitors | Premium Japanese 105°C capacitors provide superior reliability and durability | Fully modular design

  • Fully modular design for reduced clutter and maximum ease of installation and with Fractal Design UltraFlex™ (extra bendable soft cables) for better cable management

  • All models include two 8-pin ATX12V/EPS cables, ensuring compatibility with new motherboards

  • Premium storage bags for cables and PSU


Custom-tailored fan | Equipped with a high-performance Dynamic GP-14 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed and a true long-life FDB bearing | Compact advantages

  • Compact 150 mm depth allows for installation in compact cases or provides additional cable management room in larger cases

  • Extensive 10-year warranty and a full electrical protection suite provides peace of mind


Semi-passive mode

User selectable semi-passive operation allows for either passive operation in low load situations or continuous low speed fan operation for reduced component stress



Product Overview

UPC Code: 843276102869
Manufacturer Warranty: 10 Year
Add'l Return Info: Past Exch-Call Vendor 855-446-3722
Country of Origin: CHINA

General Information

Manufacturer:   Fractal Design
Manufacturer Part Number:   FD-P-IA2P-660
Manufacturer Website Address:   www.fractal-design.com
Brand Name:   Fractal Design
Product Line:   Ion+
Product Name:   Ion+ 2 Platinum 660W
Product Type:   Power Supply

Technical Information

Specification Compliance:   ATX12V/EPS12V
Number of Fans:   1
Modular:   Yes

Power Description

Number of +12V Rails:   1
Input Voltage:   120 V AC
Input Voltage:   230 V AC
Output Voltage:   12 V DC @ 55 A
Output Voltage:   3.3 V DC @ 20 A
Output Voltage:   5 V DC @ 20 A
Output Voltage:   -12 V DC @ 0.3 A
Output Voltage:   5 V DC @ 3 A
Output Power:   660 W

Physical Characteristics

Form Factor:   ATX PS/2
Form Factor:   Internal
Height:   3.4"
Width:   5.9"
Depth:   5.9"
Weight (Approximate):   5.16 lb

Miscellaneous

Package Contents:
  • Ion+ 2 Platinum 660W
  • Power Supply Storage Bag
  • Modular Cable Kit In Storage Bag
  • User Guide
  • AC Power Cord
  • Velcro Cable Ties
  • Mounting Screw Pack
  • Red Note

Compatibility:   Fractal Design Computer Cases:
  • Torrent
  • Meshify 2
  • Define 7

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Environmental Certification:   80 Plus Platinum
Environmental Certification:   China RoHS
Environmental Certification:   ErP Lot 6
Environmental Certification:   Taiwan RoHS
Environmental Certification:   WEEE
Country of Origin:   China

Warranty

Limited Warranty:   10 Year
