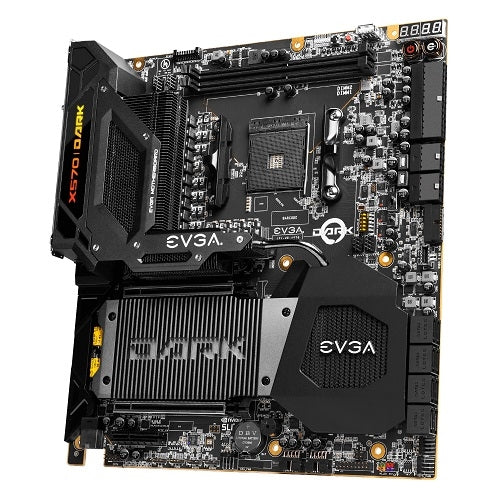

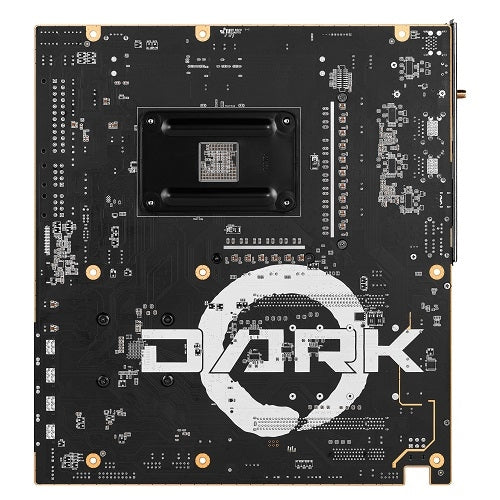

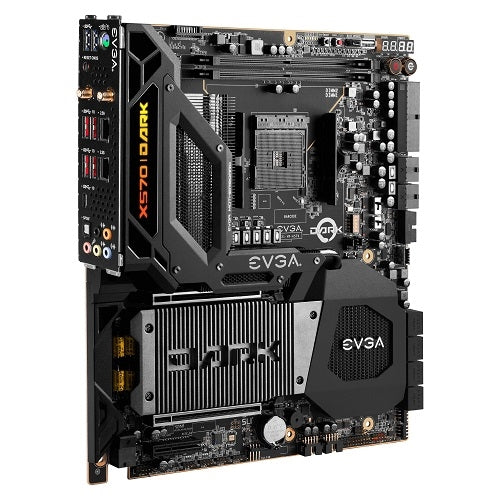

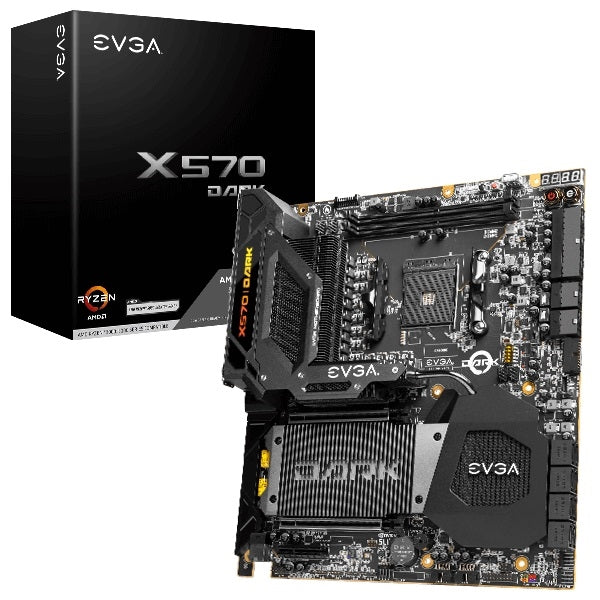

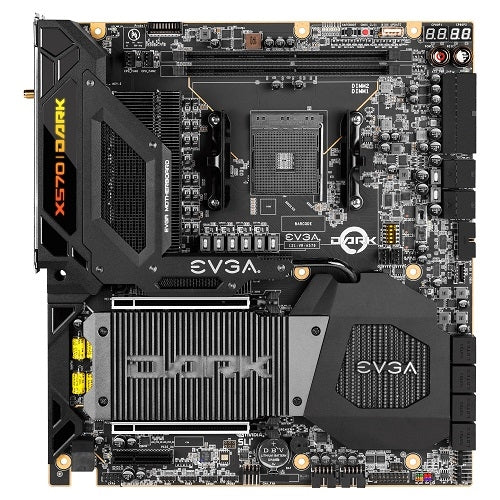

EVGA X570 DARK E-ATX Motherboard

EVGA X570 DARK E-ATX Motherboard

Extraordinary Performance by Ryzen Processors

- DDR4 4800MHz+(OC) DIMM Support

- Native PCIe Gen 4.0 x16 Slots and Gen 4.0 M.2 Slots

- NVIDIA SLI Ready with AMD SenseMI Technology

- Supports NVIDIA Resizable BAR

- Upgraded Cooling Solution

- 90^o Rotated CPU Socket and Memory Slots

- Heatsink with Twin Fans

Specifications

Chipset AMD X570

- SLI 2-Way SLI
- SATA 8 Native SATA 6 Gb/s Ports
- RAID 0, 1, 10
- USB USB 2.0 (2 Internal Headers + SPI to USB Type-A)
- Memory Support 2 DIMM Dual-Channel (up to 64GB) DDR4 4800MHz+
- Capacitors 100% Solid State
- Ethernet 2x Intel 2.5 Gigabit NIC
- Audio Realtek ALC1220 7.1 Channel HD Audio + SV3H615
- Fan Headers 8 (2x 3A Pump 2x CPU PWM, 4x PWM/DC)
- PCB 10 Layers
- PCI-E Slot Arrangement 2x16, 1x4
- NVMe Support Yes (2x PCIe Gen4 + PCIe + SATA)

Form Factor
E-ATX Form Factor
Length: 12in - 304.8mm
Width: 10.89in - 276.6mm

Features
- 150% Increased Socket Gold Content
- 2-Way SLI Support
- Built for EVGA ELEET X1
- EVGA ELEET X1 Software Support
- EVGA Probe-It Connector
- EVGAs Latest GUI BIOS Featuring OC Robot and In-BIOS Stress Testing
- Highly-Efficient 17 Phase Digital VRM
- New Integrated EVGA Wireless Module with Intel Dual-band WiFi 6 / BT5.2 with external antenna
- Onboard ARGB and RGB Headers controlled through EVGA ELEET X1
- Onboard Clear CMOS, Power and Reset Buttons
- Onboard Temperature and Voltage Monitoring
- PCI Express Gen 4
- PCIe Disable Switches
- Realtek 7.1 Channel HD Audio + EVGA NU Audio
- Reinforced PCIe slots
- SafeBoot button resets the motherboard and goes into the BIOS with last known good settings without clearing CMOS
- Slow Mode switch locks CPU multiplier to lowest possible setting to allow users to switch between max OC and low speeds in real-time.
- SPI flashing via USB allows you to flash your BIOS without a CPU
- Supports AMD AM4 Socket 1331 Processors
- Triple BIOS Support

Operating System Support
Windows 10 64bit

Item Dimension (L"xW"xH")
14 x 5 x 16

Weight
9 lbs

Warranty Information
3 years
