EVGA

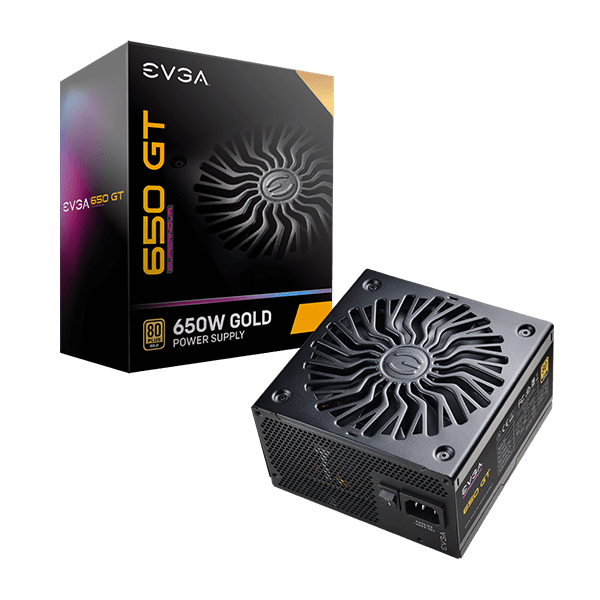

EVGA SuperNOVA 650 GT Power Supply

EVGA SuperNOVA 650 GT Power Supply

Regular price $134.99 USD
Regular price Sale price $134.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Introducing the EVGA SuperNOVA GT Series of power supplies - the newest addition to the outstanding line of EVGA Power Supplies. Featuring 80 Plus Gold certification, 100% Japanese capacitors, a fluid dynamic bearing fan, and a fully modular design, this power supply is built for long-term usage and durability. Building upon EVGA's line of 80 Plus Gold rated power supplies, the EVGA GT Series combines all these features at a great price.

•80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads

•100% Japanese Capacitors ensure long-term reliability

•Fully Modular to reduce clutter and improve airflow

•Auto ECO Mode to ensure silent operation under low to medium loads with no configuration necessary

•Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and Dual OTP (Over Temperature Protection)

•Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.

•Unbeatable EVGA 7 Year Warranty and unparalleled EVGA Customer Support.


CABLE LENGTH
ATX Cable
1x 600mm (m)
EPS Cable
1x 700mm (m)
PCIe Cable
1x 700mm, 1x 700mm, 850mm (m)
SATA Cable
2x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable
1x 550mm, 650mm, 750mm (m)
Floppy Adapter
1x Molex to FDD Adapter
AC Power
1500mm (m)
Modular Cable Type
Full
CONNECTOR QUANTITY
24 Pin ATX
1x
EPS (CPU)
1x 8pin(4+4)
PCIe
3x 8pin(6+2)
SATA
6x
Four-Pin Peripheral
3x
Floppy
1x
INPUT
Input Voltage
100-240V-
AC Input
9-4.5A
Input Frequency Range
60/50 Hz
Efficiency
90% or Higher Typical
OUTPUT
Rail/ Max output
+3.3V/ 20A-130W
+5V/ 20A-130W
+12V/ 54A-650W
-12V/ 0.3A-3.6W
+5Vsb/ 3A-15W
Total
650W at 50oC
ADDITIONAL DETAILS
Operating Temperature
0o to 50o C
Japanese Capacitors
100%
ECO Mode
Auto
MTBF
100,000 Hours
Approvals
TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing
135mm Fluid Dynamic Bearing
Item Dimension (L"x W"x H")
12 x 5 x 5
Weight
3.50 LB
Warranty Information
7 year warranty
