  • EVGA SuperNOVA 650 GM, 80 Plus Gold 650W, Fully Modular Power Supply EVGA
1 of 1

EVGA

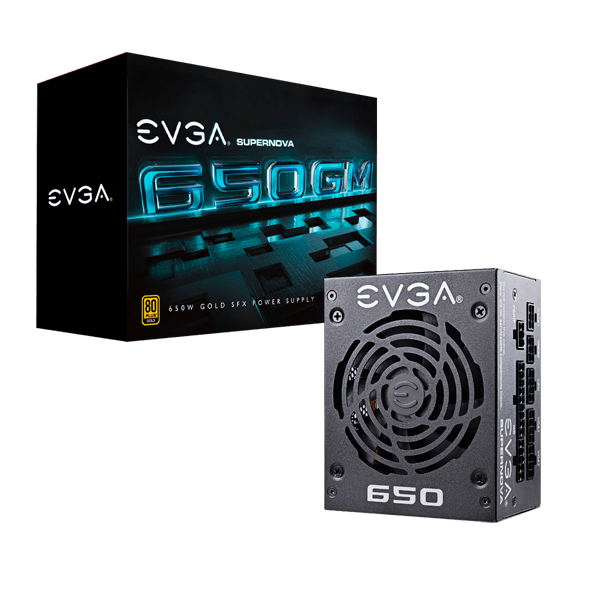

EVGA SuperNOVA 650 GM, 80 Plus Gold 650W, Fully Modular Power Supply

Regular price $139.99 USD
Regular price Sale price $139.99 USD
Shipping calculated at checkout.

Introducing the EVGA SuperNOVA GM line. Available in 450W, 550W, and 650W, these new power supplies are engineered to bring the power, prestige, and performance of EVGA's award-winning power supplies into an SFX-Standard form factor. Featuring 80 Plus Gold certified efficiency, fully-modular cables, and 100% Japanese capacitors, the GM's cast a long shadow over its competition. Pint-size, affordable, and packed with everything you need, the EVGA SuperNOVA GM power supplies make short work of tight spaces.

FULLY MODULAR DESIGN

Use only the cables you need, reducing cable clutter and improving air flow.

SFX TO ATX BRACKET ADAPTER INCLUDED

The GM power supplies were designed to power systems built in the smallest of PC cases, but are equally capable of powering systems built in a standard ATX form factor.

RELIABLE 100% JAPANESE CAPACITORS

Get the most reliability and greatest performance with the use of the highest possible quality Japanese capacitors on the most critical system components.

92MM DURABLE DOUBLE-BALL BEARING FAN

A high-quality double-ball bearing fan gives the GM power supplies an excellent thermal and acoustic profile, and its high reliability ensures a long PSU lifetime.

Features

• 100% Japanese Capacitors on Main PCB ensure long-term reliability

• 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads

• Fully Modular to reduce clutter and improve airflow

• Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

• Double Ball Bearing fan for exceptional reliability and quiet operation

• SFX-Standard Form Factor packs large power into a small space for compatibility with mITX cases and compact gaming systems

CABLE LENGTH
ATX CABLE
1x 300mm (m)
EPS CABLE
1x 400mm (m)
PCIE CABLE
1x 400mm, 510mm (m) / 1x 510mm, 620mm (m)
SATA CABLE
2x 300mm, 410mm,520mm (m)
FOUR-PIN PERIPHERAL CABLE
1x 300mm, 410mm, 520mm, 630mm (m)
FLOPPY ADAPTER
1x 100mm (m)
AC POWER
1x 1500mm (m)
MODULAR CABLE TYPE
Full
MOLEX TO FDD
1x
CONNECTOR QUANTITY
24 PIN ATX
1x
EPS (CPU)
1x 8pin (4+4)
PCIE
4x 8pin (6+2)
SATA
6x
FOUR-PIN PERIPHERAL
4x
FLOPPY
1x
POWER SPECS
AC Input
100-240 VAC, 9 - 4.5A, 50 - 60 Hz
Rail
+3.3V
Max Output
20A
100W
Rail
+5V
Max Output
20A
100W
Rail
+12V
Max Output
54.1A
649.2W
649.2W
Rail
+5Vsb
Max Output
2.5A
12.5W
Rail
-12V
Max Output
0.3A
3.6W
Total
650W at 40oC
ADDITIONAL DETAILS
OPERATING TEMPERATURE
0o to 40o C
JAPANESE CAPACITORS
100%
ECO MODE
Auto
MTBF
100,000 Hours
APPROVALS
TUV, CB, CE, FCC, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
FAN SIZE / BEARING
92mm Double Ball Bearing
