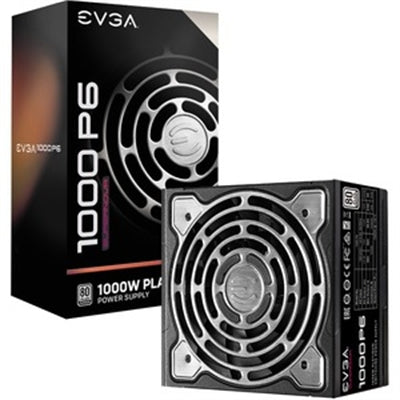

EVGA SuperNOVA 1000 P6 1000W Power Supply
EVGA SuperNOVA 1000 P6 1000W Power Supply
Couldn't load pickup availability
The EVGA SuperNOVA P6 power supplies feature a new platform design, using new materials and better layout placement to achieve greater performance with extremely low ripple and noise in an even smaller chassis.
Next Gen Platform
With a full-bridge, LLC Resonant Rectification, and DC-DC design, the SuperNOVA P6 provides rock-solid stability, uncompromising efficiency, and extremely tight voltage regulation.
Hardware + Firmware OPP
Hardware OPP is designed to trip at 135% max wattage as a last resort to protect the system, but the SuperNOVA P6 also features firmware OPP to anticipate harmful load behavior 5-10% sooner by shutting off the power supply when over-power conditions persist longer than 1ms while avoiding an instantaneous overload trigger protection malfunction during momentary peak wattage.
Smaller Size, Bigger Performance
The improved efficiency and voltage regulation minimizes heat, allowing the SuperNOVA P6 to be EVGA’s shortest ATX Platinum-certified power supply.
ULTRA-QUIET 135MM FDB FAN WITH EVGA ECO MODE
To reduce noise, the SuperNOVA P6 maximizes the time the power supply stays silent or quiet at low to medium loads when ECO Mode is enabled.
CABLE LENGTH
ATX Cable
1x 600mm (m)
EPS Cable
2x 700mm (m)
PCIe Cable
2x 700mm, 3x 700mm, 820mm (m)
SATA Cable
4x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable
1x 550mm, 650mm, 750mm, 850mm (m)
Floppy Adapter
1x 100mm
AC Power
1x 1500mm (m)
Modular Cable Type
Full
CONNECTOR QUANTITY
24 Pin ATX
1x 24pin
EPS (CPU)
2x 8pin (4+4)
PCIe
8x 8pin (6+2)
SATA
12x
Four-Pin Peripheral
4x
Floppy
1x
POWER SPECS
AC Input
100-240V, 13-6.5A, 60/50Hz
Rail / Max Output
+3.3V / 25A / 125W
+5V / 25A / 125W
+12V / 83.3A / 1000W
+5Vsb / 3A / 15W
-12V / 0.5A / 6W
Total
1000W
ADDITIONAL DETAILS
Operating Temperature
0o to 50o C
Japanese Capacitors
100%
ECO Mode
Yes
