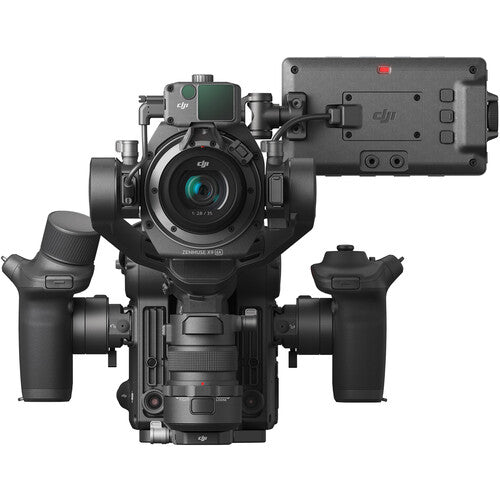

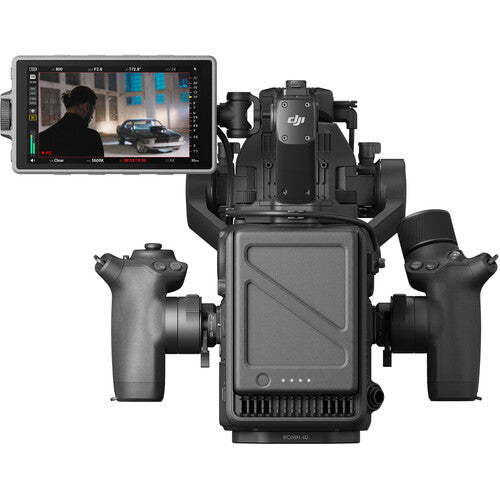

DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit

Designed for both solo use by independent creators and dynamic pro video capture, the Ronin 4D from DJI is an innovative all-in-one camera/gimbal solution. The "4D" designation refers to the Z-axis (vertical) stabilization built into the X9-6K camera and the three-axis gimbal stabilization. Constructed from lightweight carbon fiber and an aluminum/magnesium alloy, this system is ideal for independent content creators, indie filmmakers, and event videographers. The full-frame capture at rates up to 6K60 in Apple ProRes 422 HQ and Ronins CineCore 3.0 image processing system with ACES workflow support also suits the 4D as a "B" or 2nd unit camera for larger cine-style productions.
This combo includes the main Zenmuse X9-6K full-frame video camera and a 3-axis gimbal, plus an array of modular monitor, focusing, and control components. Kit items include a DL lens mount, a LiDAR range finder, one TB50 battery, a charging hub, and left and right control handgrips.

All-in-One Camera Gimbal System
This innovative camera gimbal combines imaging, stabilization, and focusing in one lightweight, carbon fiber and aluminum/magnesium alloy rig
Combination design reduces your setup time at the start of the day and in between setups and locations
Included modular components:
Left and right control handgrips
LiDAR range finder
Top handle
Baseplate
Separately available components:
7" high-bright, touchscreen monitor
Wireless video transmitter
ProSSD 1TB media drive
X9 focus motor
Leica M lens mount
3-channel FIZ lens control unit

Imaging
Lens Mount
DJI DL
Sensor Resolution
Effective: 24.1 Megapixel
Sensor Type
Full-Frame CMOS
Image Stabilization
Digital, 4-Axis
Built-In ND Filter
Mechanical Filter Wheel with Clear, 1 Stop (1/2), 2 Stop (1/4), 3 Stop (1/8), 4 Stop (1/16), 5 Stop (1/32), 6 Stop (1/64), 7 Stop (1/128), 8 Stop (1/256), 9 Stop (1/512) ND Filters
Internal Filter Holder
Yes
Shutter Type
Electronic Rolling Shutter
Advertised Dynamic Range
14 Stops

Gimbal
Rotation Range
Yaw (Pan): 285^o
Pitch (Tilt): 210^o (-55 to 155^o)
Roll: 70^o (-35 to 35^o)
Z-Axis Adjustment Range
5.1" / 130 mm
Follow Speed
Pan/Tilt/Roll: 360^o/s using DJI Master Wheels or Pro Force
Pan/Tilt/Roll: 120^o/s using Ronin 4D Handgrip
Load Capacity
2.1 lb / 960 g
Gamma Curve
HDR-HLG, Rec709
Built-In Microphone Type
Stereo
Audio Recording
2-Channel 48 kHz LPCM Audio
IP Streaming
None

Interface
Media/Memory Card Slot
Single Slot: DJI ProSSD
Single Slot: CFexpress Type B
Video I/O
1 x HDMI (HDMI 1.4) Output
Audio I/O
1 x 3.5 mm TRS Stereo Mic/Line Input
1 x 3.5 mm TRS Stereo Headphone Output
Power I/O
1 x Barrel (12 to 30 VDC) Input
Other I/O
1 x USB Type-C (USB 3.2 / 3.1 Gen 1) Data/Video Input/Output
1 x Proprietary Monitor Output
Monitor
Size
5.5"
Resolution
1920 x 1080
Display Type
Tilting Touchscreen LCD
Environmental
Operating Temperature
14 to 104^oF / -10 to 40^oC
Storage Temperature
-4 to 140^oF / -20 to 60^oC
Battery Type
DJI TB50
Material of Construction
Aluminum, Carbon Fiber, Magnesium Alloy
Item Dimension (L"xW"xH")
22 x 15 x 13

Weight
31 lbs

Warranty Information
1 Year
