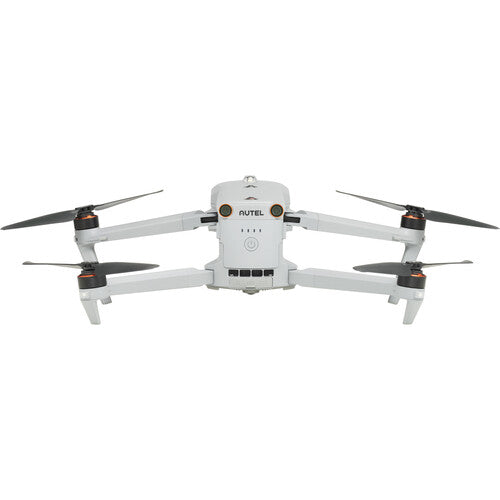

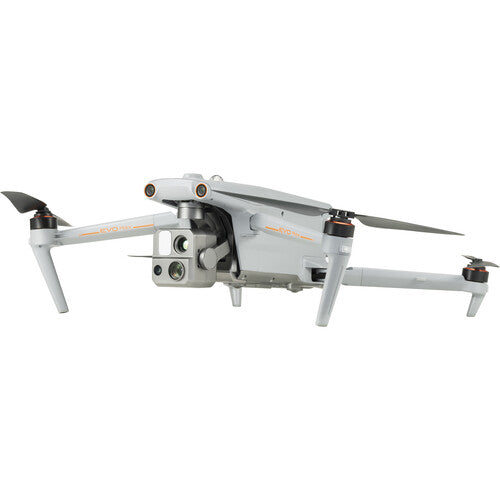

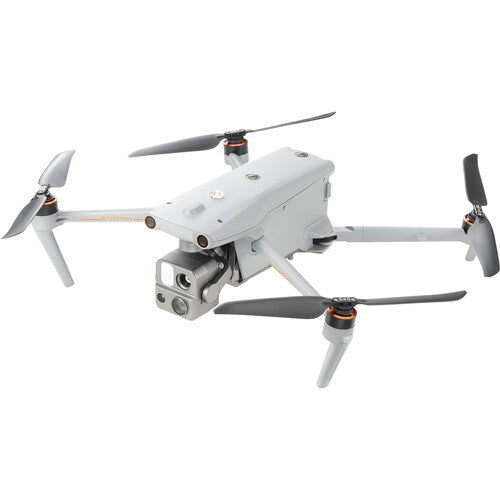

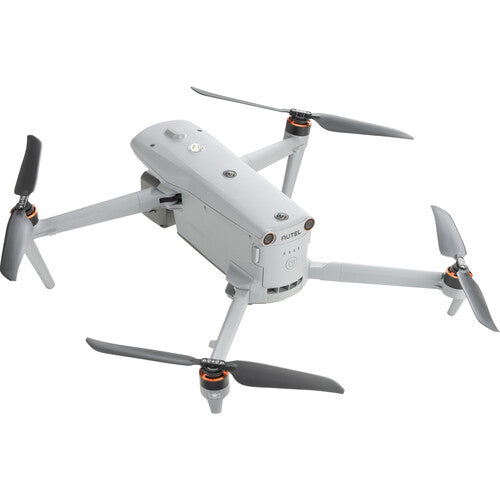

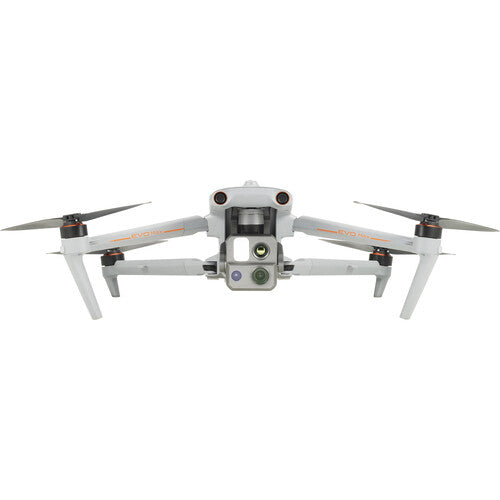

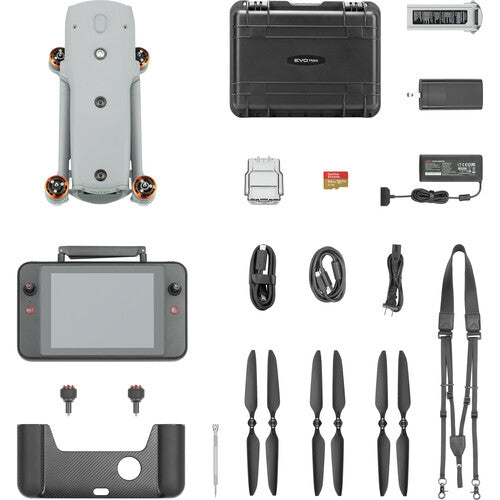

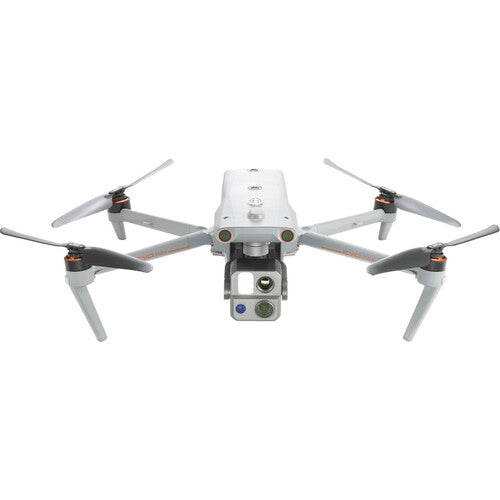

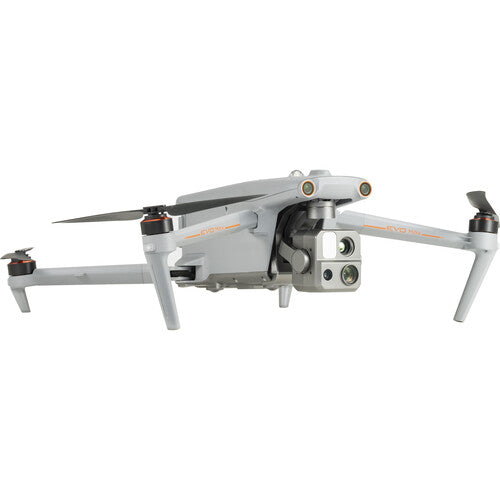

Autel Robotics EVO MAX 4T Drone Standard Bundle

Autel Robotics EVO MAX 4T Drone  Standard Bundle

Reach New Frontiers
The EVO Max series brings you advanced autonomy. It assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance. Advanced sensors make flight in GPS unavailable areas possible and the incredible thermal and starlight cameras unlock new object identification and tracking scenarios. With a foldable, weather-resistant design, the series is as portable as it is capable.

No Blind Spots

Ultimate Obstacle Avoidance
The EVO Max series is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the onboard Autel Autonomy Engine to perceive objects down to 0.5 inches, eliminating blind spots and enabling operation in low light or rainy conditions.

Anti Jam, Anti Interference
The EVO Max series uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the EVO Max series to fly confidently near power lines, critical structures, and in complex areas.

A-Mesh 1.0

The Industry's First Mesh Networking
EVO Max series features the new A-Mesh system, enabling drone-to-drone autonomous communication, connection, and collaboration.

Aircraft

EVO Max 4T Weight
3.57 lbs (1620g, battery and gimbal included)

Max. Takeoff Weight
4.41 lbs (1999 g)

Dimensions
562x651x147 mm (unfolded, incl. propellers)
318x400x147 mm (unfolded, excl. propellers)
257x145x131 mm (folded, excl. propellers)

Diagonal Wheelbase
1.53 ft (466mm)

Max Ascent Speed
8m/s

Max Descent Speed
6m/s

Max Horizontal Speed (windless near sea level)
23m/s
Maximum speed in Ludicrous Mode is 19m/s when operating in EU regions.

Max Takeoff Altitude
13,124ft (4000m)

Max Flight Time (windless)
42 mins

Max Hovering Time (windless)
38 mins

Max Wind Resistance
27mph
Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).

IP Rating
IP43

Max Tilt Angle
35^o

Max Angular Velocity
Pitch: 300^o/s Yaw: 120^o/s

Operating Temperature
-4^oF to 122^oF (-20^o to 50^oC)

Internal Storage
128GB internal storage, with 64GB of available space (Remaining available space will vary with different firmware versions)

Operating Frequency
2.4GHz/5.8GHz
5.2GHz (only applicable for FCC, CE, and UKCA regions).
900MHz (only applicable for FCC regions).

GNSS
GPS+Galileo+BeiDou+GLONASS

Transmitter Power (EIRP)
2.4GHz: <30dBm (FCC), <20dBm(CE/SRRC/MIC)
5.8GHz: <27dBm (FCC/SRRC), <14dBm (CE)
5.15-5.25GHz: <23dBm (FCC/CE)
902-928MHz: <30dBm (FCC)
5.65-5.755GHz: <27dBm (MIC)

Hovering Accuracy
Vertically:
+/-0.1 m (when vision systems working normally)
+/-0.5 m (when GNSS working normally)
Horizontally:
+/-0.3 m (when vision systems working normally)
+/-0.5 m (when GNSS working normally)

Wi-Fi Protocol
802.11a/b/g/n/ac/ax
Support 2 x 2 MIMO Wi-Fi

Wi-Fi Operating Frequency
2.400 - 2.4835 GHz
5.150 - 5.250GHz (CE/FCC/MIC)
5.725 5.850 GHz(Except MIC)

Wi-Fi Transmitter Power (EIRP)
2.400 - 2.4835 GHz
FCC:<30dBm CE/SRRC/MIC:<20dBm
5.150 - 5.250GHz
FCC/CE/MIC<22dBm
5.725 5.850 GHz
FCC/SRRC: <21dBm
CE: <14dBm

Gimbal

Mechanical Range
Pitch: -135^o to 45^o
Yaw: -45^o to 45^o
Roll: -45^o to 45^o

Controllable Range
-90^o to 30^o

Stable system
3-axis mechanical gimbal (pitch, yaw, roll)

Max Control Speed (pitch)
200^o/s

Angular Vibration Range
<0.005^o

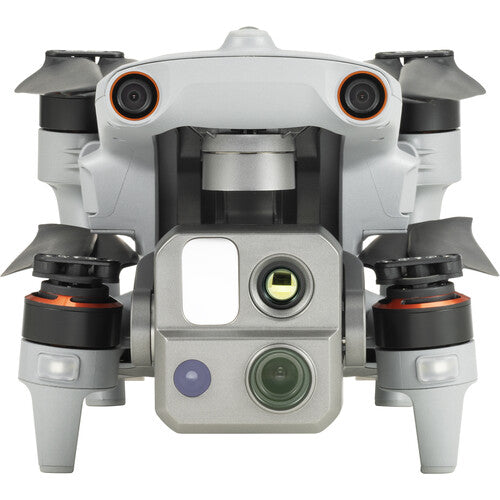

EVO Max 4T Zoom Camera (Telephoto)

Sensor
1/2" CMOS, Effective pixels: 48M

Lens
Focal length: 11.8-43.3mm (35mm, equivalent: 64-234mm)
Aperture: f/2.8-f/4.8
Focusing distance: 5m - infinity

Exposure Compensation
+/-3EV 0.3EV/step

ISO Range
Normal Mode
Auto: ISO100 - ISO6400
Manual:
Photo: ISO100 - ISO12800
Video: ISO100 - ISO6400

Shutter Speed
Photo: 8s - 1/8000s
Video: 1s - 1/8000s

Max Photo Size
80006000

Max Video Resolution
4000x3000

EVO Max 4T Thermal Camera

Thermal Imager
Uncooled VOx Microbolometer

Lens
FOV: 42^o
Focal length: 13mm
Aperture: f/1.2
Focusing Distance: 6m - infinity

Infrared Temperature Measurement Accuracy
+/-3^oC or reading +/-% (using the larger value) at ambient temperature range from -4^oF to 140^oF (-20^oC-60^oC)

Video Resolution
640x512 at 25FPS

Photo Size
640x512

Pixel Pitch
12 um

Temperature Measurement Method
Center measurement, pot measurement, rectangular measurement

Temperature Measurement Range
-4^oF to 302^oG, 32^oF to 1022^oF (-20^oC to 150^oC, 0 to 550^oC)

Temperature Alert
High and low temperature alarm thresholds, reporting coordinates and temperature values

Palette
White Hot/Black Hot/Searing/Rainbow/Grey/Ironbow/Cold and Hot

Wide Camera

Sensor
1/1.28 CMOS, Effective pixels: 50M

Lens
FOV: 85^oFocal length: 4.5 mm (equivalent: 23 mm)
Aperture: f/1.9
AF motor: PDAF focus

Exposure Compensation
+/-3EV 0.3EV/step

ISO Range
Photo: ISO100-ISO6400
Video: ISO100-ISO64000 (Night scene mode: up to ISO64000)

Shutter Speed
Photo: 8s - 1/8000s
Video: 1s - 1/8000s

Max. Video Resolution
4000x3000

Photo Size
4096x3072

Laser Rangefinder

Measurement Accuracy
+/- (1 m + Dx0.15%)
D is the distance to a vertical surface

Measuring Range
5m to 1.2km

Image Transmission

Operating Frequency
2.4G/5.8G/900MHz
900MHz is only applicable for FCC regions.

Max Transmission Distance (unobstructed, free of interference)
12.4 miles/20km (FCC), 4.9 miles/8km (CE)

Independent Networking
Autel Smart Controller V3

Transmitter Power (EIRP)
2.4GHz: <28dBm (FCC), <20dBm (CE/SRRC/MIC)
5.8GHz: <28dBm (FCC/SRRC), <14dBm (CE)
5.15-5.25GHz: < 23dBm(FCC/CE)
902-928MHz: <30dBm (FCC)
5.65-5.755GHz: <27dBm (MIC)

Millimeter-wave Radar Sensing System

Frequency
60GHz/24GHz
Please fly safely and comply with your local laws and regulations to use 60GHz.

Sensing Range
60GHz Radar:
Upward: 0.98-787.4in (0.3-20m)
Downward: 5.9-3149.6in (0.15-80m)
Forward and Backward: 0.98-98.43ft (0.3-50m)
24GHz Radar:
Downward: 2.62-39.4ft (0.8-12m)

FOV
Horizontal (6dB): +/-60^o/+/-22^o (24G/60G)
Vertical (6dB): +/-30^o/+/-20^o (24G/60G)

Operating Environment
The 60GHz millimeter-wave radar sensing system supports all-weather obstacle avoidance for glass, water, wires, buildings, and trees. Its obstacle avoidance distance varies with the obstacles ability to reflect electromagnetic waves and its surface size.
The 24Ghz millimeter-wave radar supports downward sensing, and its sensing range varies by the ground material. For example, the sensing range of cement ground is 12 meters, and the sensing range of grass with a thickness of more than 3cm is less than 6 meters.

Visual Sensing System

Obstacle Sensing Range
Forward: 19.7-1220.5in (0.5-31m)
Backward: 19.7-984.3in (0.5-25m)
Sideward: 19.7-1023.6in (0.5-26m)
Upward: 0.66-85.3ft (0.2-26m)
Downward: 0.98-75.5ft (0.3-23m)

FOV
Forward/Backward Sensor: 60^o(H), 80^o (V)
Upward/Downward Sensor: 180^o (sideward), 120^o (forward and backward)

Operating Environment
Forward, Backward, Sideward, Upward: The surface has rich texture, under sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment)
Downward: The surface is a diffuse material with a reflectivity >20% (walls, trees, humans, etc.), under sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment)

Radar and Visual Sensing Systems

Sensing Range
Forward and Backward: 11.8-1968.5in (0.3-50m)
Sideward: 19.7-1023.6in (0.5-26m)
Upward: 0.66-85.3ft (0.2-26m)
Downward: 0.49-262.5ft (0.15-80m) (60Ghz radar)

FOV
Forward/Backward Sensor: 80^o(H), 120^o (V)
Upward/Downward Sensor: 180^o (sideward), 120^o (forward and backward)

Operating Environment
Forward, Backward, Upward, Downward: supports all-weather obstacle avoidance for glass, water, twigs, buildings and high voltage lines. At least one of the 2 conditions should be met: sufficient lighting or the obstacle has strong reflection ability to electromagnetic waves.
Sideward: The surface has rich texture, under sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment)

Autel Smart Controller V3

Screen
7.9 inch, 2000nits max. brightness, 2048x1536 resolution

Battery
Capacity: 5800mAh
Battery Type: Intelligent Lithium Ion Battery
Voltage: 11.55V
Energy: 67Wh
Charing time: 120mins

Operating Time
2.5 hours (Max. brightness)
4.5 hours (50% brightness)

Max Transmission Distance (without interference)
12.4 miles/20km (FCC), 4.9 miles/8km (CE)

IP Rating
IP43

Storage
128G

GNSS
GPS+GLONASS+Galileo+Beidou

Operating Temperature
-4^oF to 104^oF (-20^oC to 40^oC)

Wi-Fi Protocol
WiFi Direct, Wi-Fi Display,
802.11a/b/g/n/ac
Support 2 x 2 MIMO Wi-Fi

Operating Frequency
2.400 - 2.4835 GHz
5.150 - 5.250GHz(MIC only)
5.725 5.850 GHz(Except MIC

Transmitter Power (EIRP)
2.400 - 2.4835 GHz
FCC:<23dBm CE/SRRC/MIC:<20dBm
5.150 - 5.250GHz
MIC:<17dBm
5.725 5.850 GHz
FCC/SRRC:<22dBm
CE:<14dBm

Aircraft Battery

Capacity
8070mAh

Voltage
14.88V

Battery Type
LiPo 4S

Energy
120wh

Net Weight
1.15 lbs (520g)

Charging Temperature
-4^o F to 113^o F (-20^oC to 45^oC)
When the temperature is lower than 41^o F (5^o C), the selfheating function will be automatically activated. There should be at least around 10% of the remaining power for heating.)

Hot Swappable
Supported

Item Dimension (L"xW"xH")
20 x 16 x 10

Weight
24 lbs

Warranty Information
1 year
