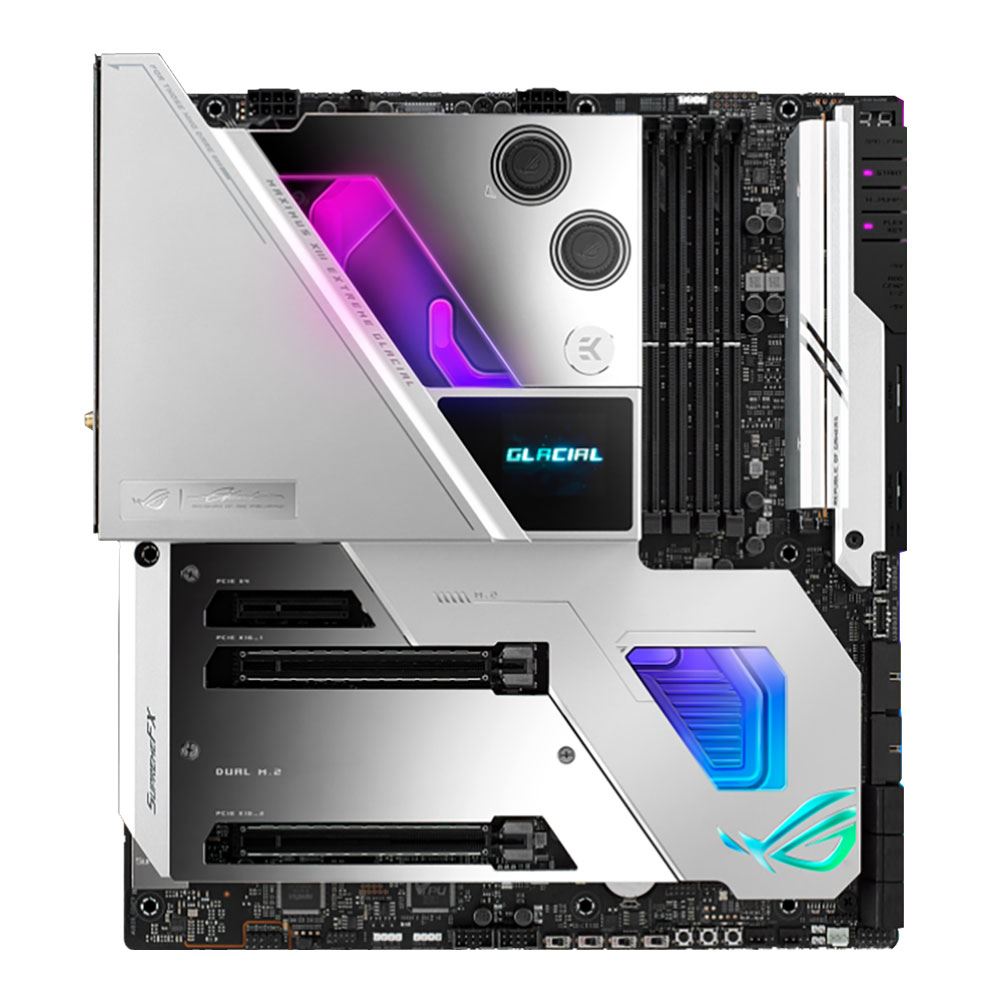

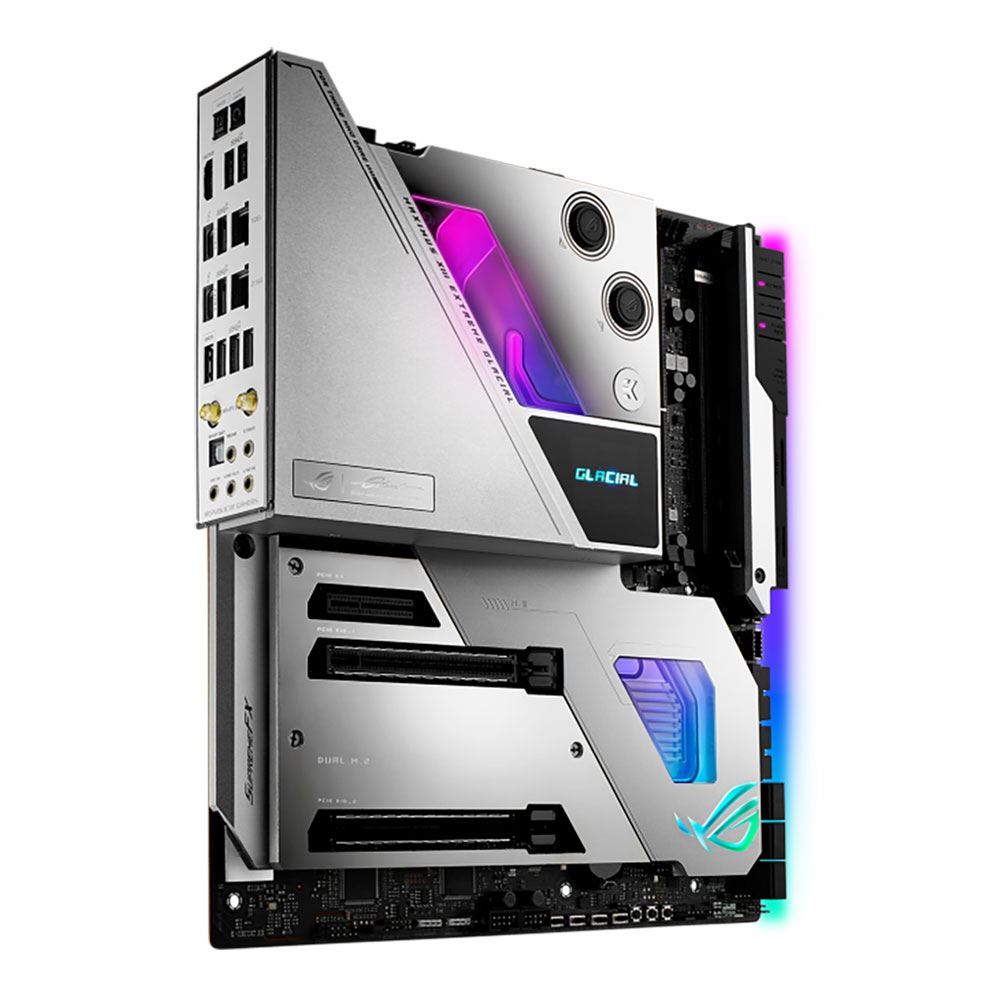

Asus Z590 ROG Maximus XIII Extreme Glacial Intel LGA 1200 ATX Motherboard

ASUS Z590 ROG Maximus XIII Extreme Glacial Intel LGA 1200 ATX Motherboard

Intel® Z590 EATX motherboard with 18+2 power stages, integrated full-coverage EK water block, five M.2 slots, USB 3.2 Gen 2x2 front-panel connector, USB 3.2 Gen 2 front-panel connector, dual Thunderbolt™ 4, Marvell® AQtion 10 Gb Ethernet, Intel® 2.5 Gb Ethernet, PCIe® 4.0, onboard WiFi 6E (802.11ax) and Aura Sync RGB lighting


• Intel® Socket LGA 1200 for 11th Gen Intel® Core™ processors and 10th Gen Intel Core, Pentium® Gold and Celeron® processors

• Optimized Thermal Design: Integrated EK water block that cools VRM, CPU, and PCH; high-conductivity thermal pads, five M.2 heatsinks with embedded backplates, and ROG Water-Cooling Zone

• Intelligent Control: ASUS-exclusive software and firmware utilities that simplify setup and improve performance: AI Overclocking, AI Cooling, AI Networking, and Two-Way AI Noise-Cancelation

• Robust Power Solution: 18+2 teamed power stages - each rated at 100 Amps, ProCool II power connectors, MicroFine alloy chokes, and 10K Japanese-made black metallic capacitors

• High-Performance Networking: Onboard WiFi 6E (802.11ax), Marvell® AQtion 10 Gb Ethernet, Intel® 2.5 Gb Ethernet, and ASUS LANGuard

• Fastest Gaming Connectivity: PCIe® 4.0, five M.2 slots, USB 3.2 Gen 2x2 front-panel connector, dual Thunderbolt™ 4 USB-C®

• Industry-Leading Gaming Audio: ROG SupremeFX ALC4082 with ESS® ES9018Q2C DAC for high-fidelity sound

• Unmatched Personalization: 2” LiveDash color OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers

• DIY-Friendly Design: Pre-mounted I/O shield, V_Latch switch, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, SafeSlot, and Graphics Card Holder

• Renowned Software: Bundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

CPU
Intel Socket LGA1200 for 11th-Gen Intel Core^TM Processors and 10th-Gen Intel Core^TM, Pentium Gold, and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Refer to www.asus.com for the CPU support list.
Intel Turbo Boost Max Technology 3.0 support depends on the CPU type.
Chipset
Intel Z590 Chipset
Memory
4 x DIMM, Max. 128GB, DDR4
5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem III
10th Gen Intel Core^TM i7/i9 processors support 2933/2800/2666/2400/2133 natively; others will run at the maximum transfer rate of DDR4 2666MHz.
11th Gen Intel Core^TM processors natively support 3200/2933/2800/2666/2400/2133.
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics
1 x HDMI^TM 1.4 / 2.0
2 x Intel Thunderbolt^TM 4 ports (USB Type-C) support DisplayPort 1.2/1.4 and Thunderbolt^TM video outputs
Graphics specifications may vary between CPU types.
Only Intel 11th Core^TM processors support HDMI^TM 2.0 with max. resolution of 4K at 60Hz, others would only support HDMI^TM 1.4 with max. resolution of 4K at 30Hz. Please refer to www.intel.com for any updates.
Expansion Slots
2 x PCIe 4.0/3.0 x16 (x16, x8/x8)
Intel 11th and 10th Gen Processors
2 x PCIe 4.0/3.0 x16 slot(s)
- Intel 11th Core^TM processors support PCIe 4.0 x16 or x8/x8 mode(s)
- Intel 10th Core^TM processors support PCIe 3.0 x16 or x8/x8 mode(s)
Intel Z590 Chipset
1 x PCIe 3.0 x4 slot
PCIEx4 slot shares bandwidth with SATA6G_12, and PCIEx4 slot is default set at x2 mode.
Multi-GPU Support
NVIDIA 2-Way SLI Technology
Support varies with different graphics cards
Storage
Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports
Intel11th and 10th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Intel 11th Core^TM processors support PCIe 4.0 x4 mode
- Intel 10th Core^TM processors support PCIe 3.0 x4 mode
M.2_2 slot (Key M), type 2242/2260/2280
- Intel 11th Core^TM processors support PCIe 4.0 x4 mode
- Intel 10th Core^TM processors support PCIe 3.0 x4 mode
M.2_3 slot (Key M), type 2242/2260/2280
- Only Intel 11th Core^TM processors support PCIe 4.0 x4 mode; this slot will be disabled for other CPUs
Intel Z590 Chipset
DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 and SATA modes)
DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)
6 x SATA 6Gb/s ports
Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
To enable Intel Optane^TM Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.
DIMM.2_2 shares bandwidth with SATA6G_34, and DIMM.2_2 is default set at x2 mode.
Ethernet
1 x Marvell 10Gb Ethernet
Wireless and Bluetooth
2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2
USB
2 x Thunderbolt^TM 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support
8 x USB 3.2 Gen 2 port(s) (8 x Type-A)
Front USB:
Total 10 ports
1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C
1 x USB 3.2 Gen 2 Front Panel connector(s) (support(s) USB Type-C
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio
ALC4082
Audio Features
- SupremeFX Shielding Technology
- ESS SABRE9018Q2C DAC/AMP
- LED-illuminated audio jacks
- Rear optical S/PDIF outport
- Premium Japanese audio capacitors
- Audio cover

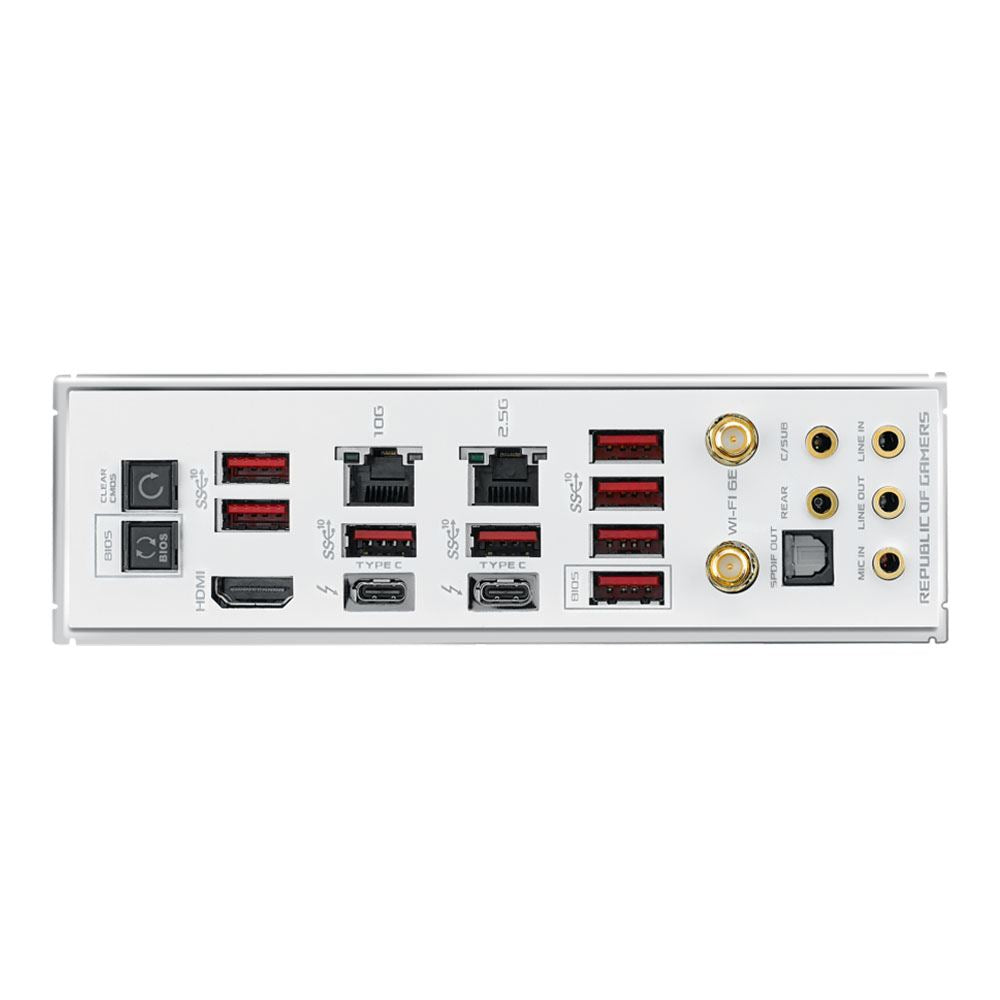

Back Panel I/O Ports
2 x Thunderbolt^TM 4 USB Type-C port(s)
8 x USB 3.2 Gen 2 port(s) (8 x Type-A)
1 x HDMI^TM port
1 x ASUS Wi-Fi Module
1 x Marvell AQtion AQC113CS 10Gb Ethernet
1 x Intel I225-V 2.5Gb Ethernet
5 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack^TM button
1 x Clear CMOS button
Internal I/O Connectors
2 x Thunderbolt^TM 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support
Fan and Cooling related
2 x 4-pin Chassis Fan header(s)
2 x 4-pin Radiator Fan header(s)
2 x W_PUMP+ header(s)
1 x WB_SENSOR header(s)
1 x 2-pin Water In theader
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pin PCIe Graphics Card connector
Storage related
3 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C)
1 x USB 3.2 Gen Gen 2 connector (support(s) USB Type-C)
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Miscellaneous
3 x AURA Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x WB_ADD header(s)
1 x BIOS Switch button
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x LN2 Mode jumper
8 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switch
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Speaker header
1 x Start button
1 x V_LATCH switch
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Special Features
Extreme OC Kit
- FlexKey button
- LN2 Mode
- Probelt
- ReTry button
- Safe boot button
- Start button
- Slow Mode
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU red, DRAM yellow, VGA white, Boot Device yellow-green)
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack^TM button
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- ROG AURA sync backplate
- AURA RGB header(s)
- Addressable Gen 2 RGB header(s)
Dual BIOS
OLED 2"
ASUS HYDRANODE
- 2 x Chassis fan support (CHA_FAN1P,CHA_FAN2P)
- 2 x USB2.0 port support (USB_EP1,USB_EP3)
Visit ASUS Website for the latest compatibility list.
Software Features
ROG Exclusive Software
- Mem Tweakit
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS Sound Unbound
- Overwolf
- BullGuard Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1-year full version)
- AURA Creator
- AURA Sync
- Two-Way AI Noise Cancelation
- OLED Display
AI Suite 3
- 5-Way Optimization with AI Overclocking
TPU
EPU
Digi+ Power Control
Fan Xpert 4
Turbo app
- EZ update
AI Charger
DAEMON Tools
MyAsus
WinRAR
UEFI BIOS
MemTest86
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
2 x 256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

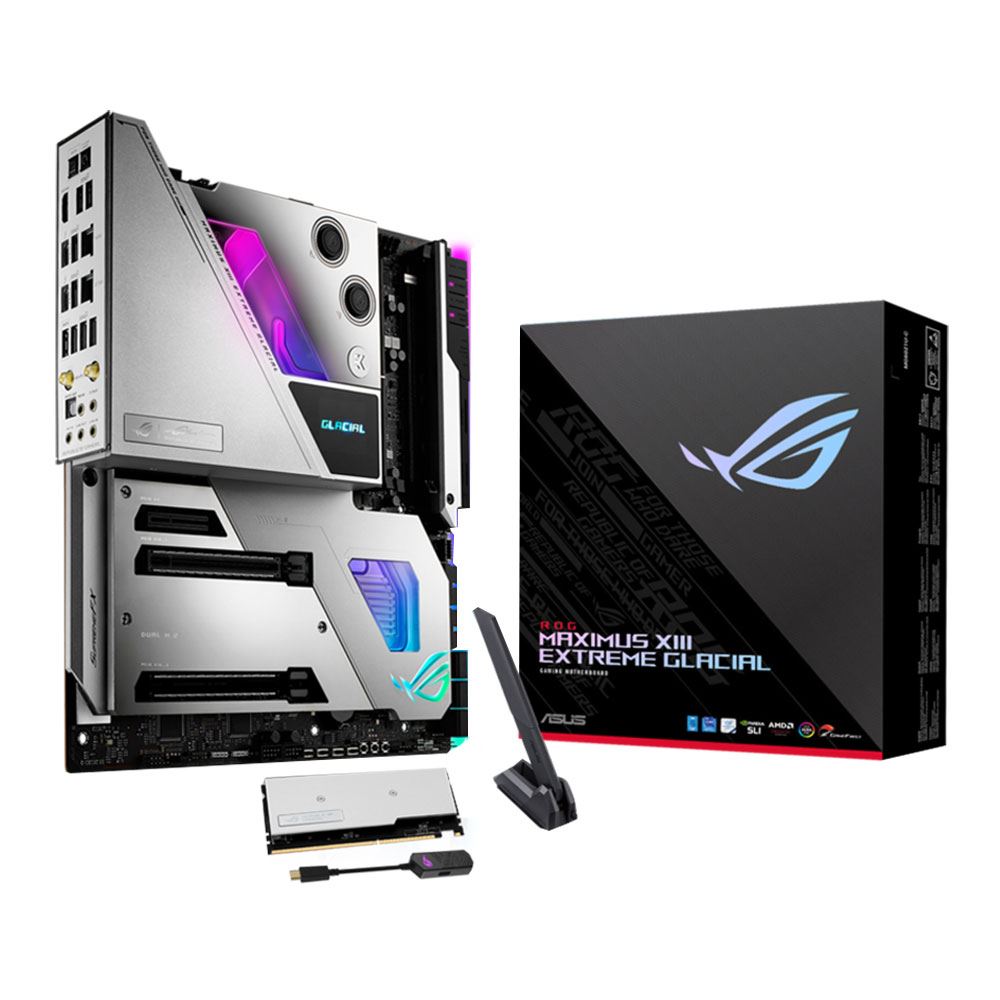

Accessories
Cables
1 x 1-to-3 ARGB splitter cable
2 x 1-to-4 fan splitter cable
1 x RGB extension cable
3 x ROG weave SATA 6G cables
1 x 3-in-1 Thermistor cables pack
ROG Fan Controller
1 x ROG Fan Controller
1 x Fan EXT PWR cable
1 x ARGB input cable
1 x USB input cable
1 x ROG Fan Controller 3M Mounting tape
1 x Fan Controller Manual
ROG DIMM.2 with Heatsink
1 x ROG DIMM.2 with heatsink
1 x M.2 pad for ROG DIMM.2
2 x M.2 screw package for ROG DIMM.2
Additional Cooling Kit
1 x Monoblock
3 x Screw package for monoblock
1 x Thermal pad for monoblock
1 x Fittings for monoblock
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x M.2 Rubber Package(s)
1 x M.2 SSD screw package(s)
1 x Q-connector
1 x ROG CLAVIS DAC
1 x ROG key chain
1 x ROG logo plate stickers
1 x ROG screwdriver
1 x ROG stickers
1 x ROG thank you card
1 x ROG Graphics card holder
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x User manual
Operating System
Windows 10 64-bit
Form Factor
Extended ATX
30.5cm x 27.7cm
