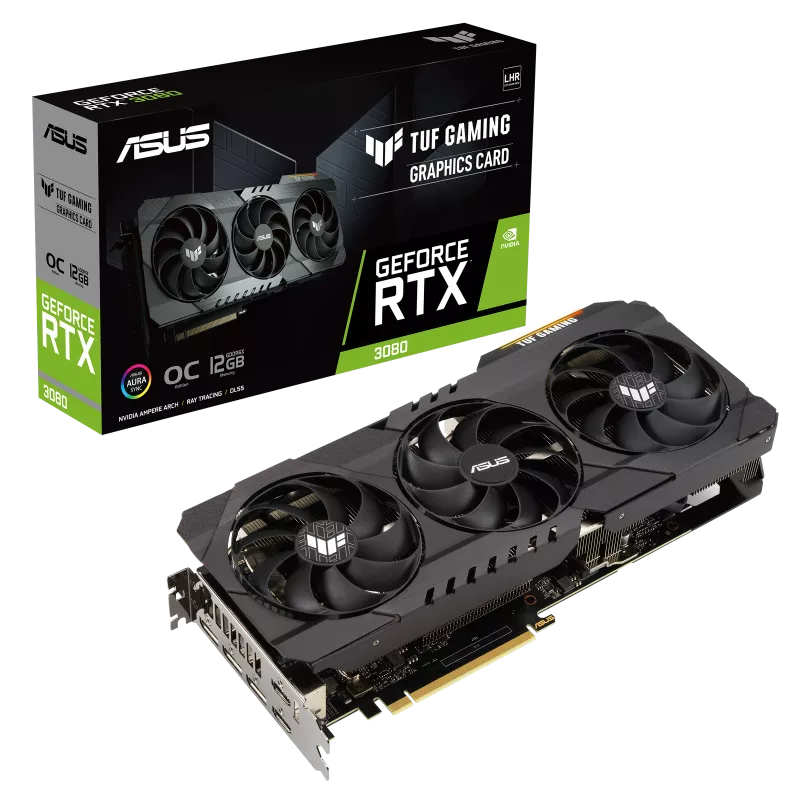

Asus TUF GAMING GeForce RTX 3080 OC 12GB GDDR6X Graphics Card

TUF Gaming GeForce RTX™ 3080 OC Edition 12GB GDDR6X with LHR offers a buffed-up design that delivers chart-topping thermal performance.

• NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.

• 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.

• 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.

• This GeForce RTX 3080 graphics card with LHR (lite hash rate) delivers 52 MH/s ETH hash rate (est.).

• OC edition: Boost clock 1815 MHz (OC mode)/ 1785 MHz (Gaming mode)

• Axial-tech Fan Design has been newly tuned with a reversed central fan direction for less turbulence.

• Dual Ball Fan Bearings can last up to twice as long as sleeve bearing designs.

• Military-grade Capacitors and other TUF components enhance durability and performance.

• GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

Graphic Engine
NVIDIA GeForce RTX^TM 3080
Bus Standard
PCI Express 4.0
OpenGL
OpenGL4.6
Video Memory
12GB GDDR6X
Engine Clock
OC mode : 1815 MHz (Boost Clock)
Gaming mode : 1785 MHz (Boost Clock)
CUDA Core
8960
Memory Speed
19 Gbps
Memory Interface
384-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 2 (Native HDMI 2.1) Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x TUF certificate of Reliability
1 x Collection card
1 x Speedsetup Manual
Software
ASUS GPU Tweak II and GeForce Game Ready Driver and Studio Driver: please download all software from the support site.
Recommended PSU
850W
Power Connectors
2 x 8-pin
Slot
2.7 Slot
AURA SYNC
ARGB
Note
Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the "Choose By Wattage" feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
Item Dimension (L inchxW inchxH inch)
16 x 10 x 4

Weight
5.00 lb

Warranty Information
3 Years
