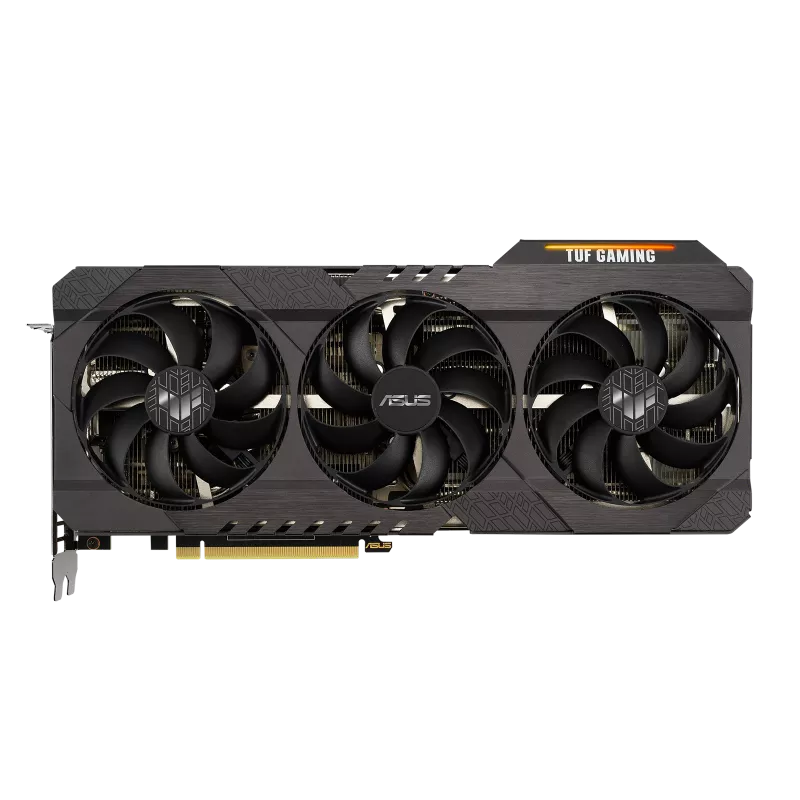

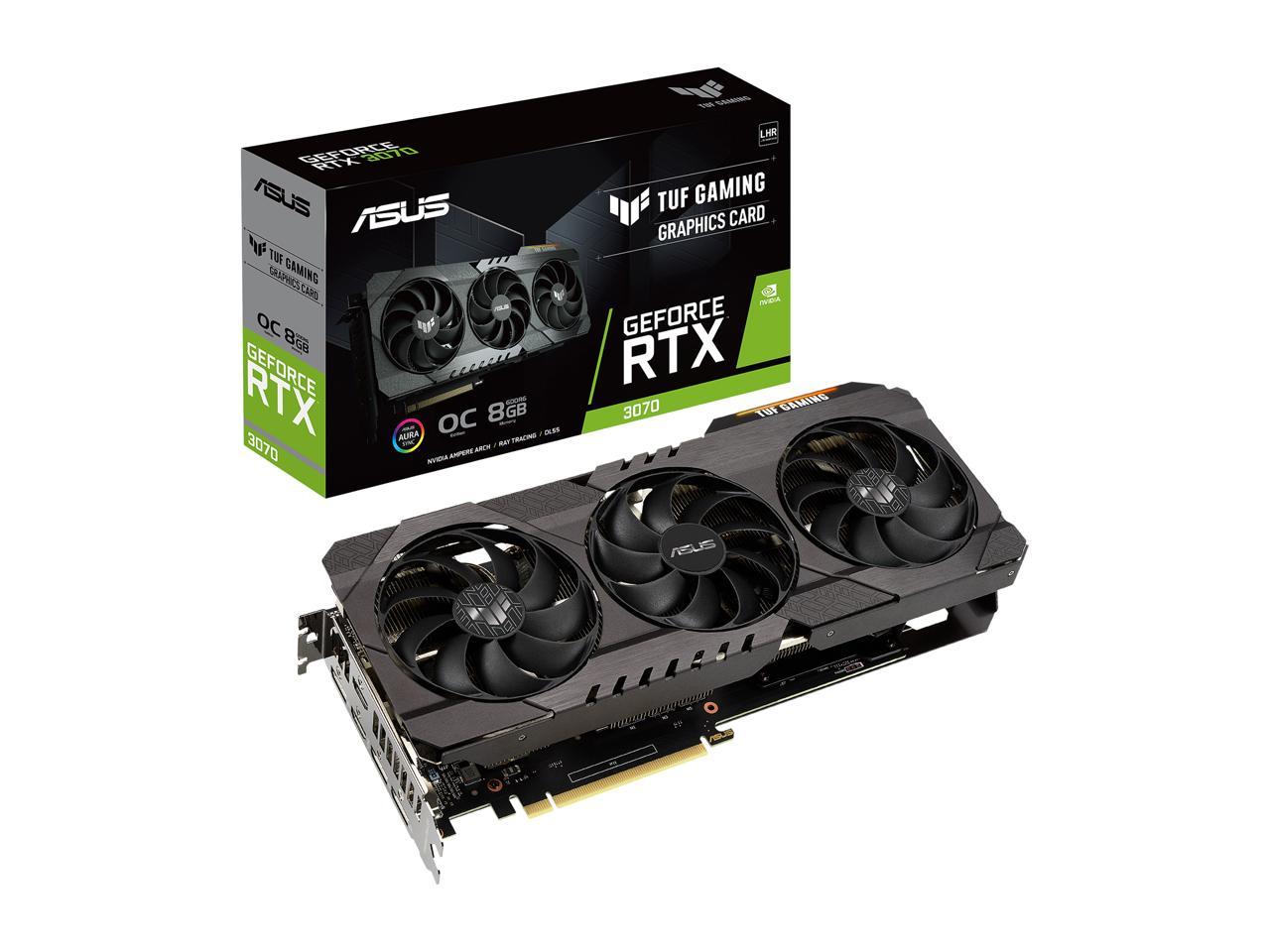

Asus TUF Gaming GeForce RTX 3070 V2 OC Edition 8GB GDDR6 Graphics Card

TUF Gaming GeForce RTX™ 3070 V2 OC Edition 8GB GDDR6 with LHR offers a buffed-up design that delivers chart-topping thermal performance.

• NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
• 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
• 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.
• This GeForce RTX 3070 graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.).
• OC edition: Boost clock 1845 MHz (OC mode)/1815 MHz (Gaming mode).
• Axial-tech Fan Design has been newly tuned with a reversed central fan direction for less turbulence.
• Dual Ball Fan Bearings can last up to twice as long as sleeve bearing designs.
• Military-grade Capacitors and other TUF components enhance durability and performance.
• GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

Graphic Engine

NVIDIA® GeForce RTX™ 3070

Bus Standard

PCI Express 4.0

OpenGL

OpenGL®4.6

Video Memory

8GB GDDR6

Engine Clock

OC Mode - 1845 MHz (Boost Clock)

Gaming Mode - 1815 MHz (Boost Clock)

CUDA Core

5888

Memory Speed

14 Gbps

Memory Interface

256-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 2 (Native HDMI 2.1)

Yes x 3 (Native DisplayPort 1.4a)

HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Accessories

1 x Speedsetup manual

1 x Collection card

1 x TUF certificate of Reliability

Software

ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

11.8 x 5.51 x 2.1 inch

299.9 x 140 x 53.4 mm

Recommended PSU

750W

Power Connectors

2 x 8-pin

Slot

2.7 Slot

AURA SYNC

ARGB

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
